FallTech Install Hardware Pack for SteelGrip Temporary HLLs

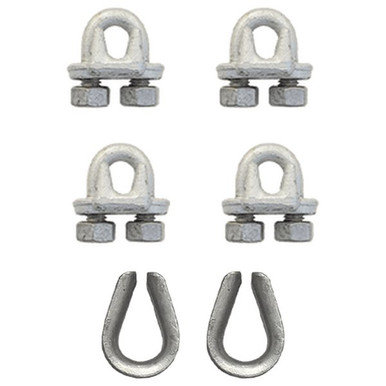

The install hardware pack with cable clips and thimbles for building one SteelGrip temporary horizontal lifeline from user-supplied 3/8 in cable. Clips clamp each termination and thimbles protect the cable eyes where they meet connecting hardware.
Features stainless steel coil energy absorber and 2 connecting carabiners. Installation set also includes tensioning turnbuckle, 2 terminating thimbles and 4 cable clips.
Who Needs This Product
Crews that run SteelGrip cable lifelines keep genuine installation components on hand so a worn clip, thimble, or absorber never idles a span. Every component is rated for the 3/8 in SteelGrip system, and using factory parts keeps the assembled lifeline inside its OSHA compliance basis.
Features
One system, one pack
Contains the cable clips and thimbles to terminate both ends of a single SteelGrip HLL span, so nothing gets pieced together at the jobsite.
Pre-packed cable HLL installation components
Pre-packed cable HLL installation components for user-supplied 3/8" cable.
Features stainless steel coil energy
Features stainless steel coil energy absorber and 2 connecting carabiners.
Installation set also includes tensioning
Installation set also includes tensioning turnbuckle, 2 terminating thimbles and 4 cable clips.
Genuine components keep the system compliant. The SteelGrip compliance basis assumes factory hardware on 3/8 in cable at the manual's clip counts and torques. Substituting hardware store parts voids that basis. Replace the coil energy absorber after any deployment.
Compliance Standards
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Match the component. Confirm the part fits the 3/8 in SteelGrip system and your span configuration.
- Install per the manual. Follow the SteelGrip instruction manual for clip torque, thimble placement, and absorber orientation.
- Verify tension. Re-tension the system and confirm the indicator reads correctly before workers connect.
- Log the change. Record the component swap in the system inspection record.
Inspection and Retirement
Inspect components on the same schedule as the lifeline, before each use and at least every six months by a competent person.
- Threads and pawls: clean, lubricated, and fully functional.
- Load-bearing surfaces: no wear grooves, cracks, or corrosion.
- Energy absorber coils: tight and undeployed.
Replace any component that fails inspection and re-verify the full span before returning it to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Cable Clip and Thimble Pack, HLL Installation Hardware |
|---|---|
| SKU | 62203C |
| Quantity | Cable clips and thimbles for one HLL system |
| Cable Size | Sized for 3/8" wire rope |
| Thimbles | 3/8" galvanized steel |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
