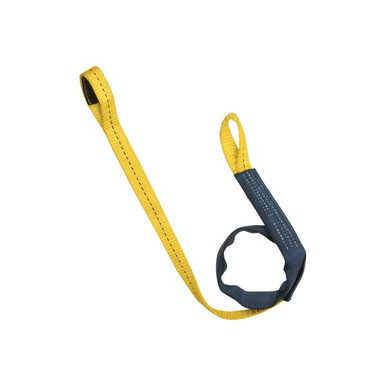

FallTech Concrete Embed Loop Anchor
The FallTech Concrete Embed Loop Anchor is a polyester web strap cast into fresh concrete, finished with a soft web connection loop at the surface instead of a steel D-ring. Set it in the wet pour for a permanent, low-profile anchor point.
It meets ANSI Z359.1-2007 and ANSI A10.32-2004, rated to a 5,000 lb anchorage requirement for one worker up to 310 lb. Choose the embedded length (4 ft or 6 ft) for your slab. Sold in multi-packs.
Who Needs This Product
This product is a concrete embed anchor with a soft web loop, the anchorage component of a personal fall arrest system cast into concrete during the pour. Concrete and precast crews set it in the wet slab so the loop is available for tie-off once cured. It is a single-use, permanent anchor. You still need a certified full-body harness and a compatible connecting device, and it must not be used to lift or support loads.
Features
Cast into concrete
Set in the wet pour to become a permanent part of the slab or wall.
Soft web loop
Low-profile connection loop instead of a steel D-ring.
Two embed lengths
4 ft or 6 ft to match slab thickness or reinforcement depth.
Polyester web strap
Strong embedded webbing that bonds into the cured concrete.
ANSI Z359.1-2007 and A10.32
Meets or exceeds the applicable anchorage standards.
Contractor multi-packs
Sold in packs sized for pour-day quantities.
Cast-in anchor, single use only. Not for lifting. Embed the strap fully per the instruction manual in properly cured concrete, and never use the anchor to lift, hang, or support loads. Do not knot the webbing. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.1-2007
Fall protection component standard; the embed strap meets or exceeds it.
ANSI A10.32-2004
Construction fall protection standard for the embed anchor.
OSHA 1926.500-503
Federal construction fall protection requirements.
Single-use
Permanent cast-in anchor; not removable or reusable.
Typical Applications
How to Install
Follow the FallTech instruction manual. The sequence below is an overview only.
- Plan the location. Mark where the anchor is needed and confirm slab thickness and edge distance per the manual.
- Position before the pour. Secure the embed strap so the loop end sits at the finished surface.
- Cast in concrete. Pour and consolidate the concrete around the fully embedded strap.
- Cure fully. Let the concrete reach its required strength before using the anchor.
- Inspect and connect. Inspect the loop and surface, connect your SRL or lanyard, and confirm fall clearance below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Web loop at the surface: cuts, fraying, or damage where it exits the concrete.
- Stitching: broken or worn stitches at the loop.
- Concrete around the anchor: cracking or spalling.
- Labels: illegible or missing markings.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Concrete embed loop anchor strap (cast-in) |
|---|---|
| Material | Polyester web strap with soft web connection loop |
| Anchorage requirement | 5,000 lb |
| Capacity | One worker, 130 to 310 lb combined |
| Embed lengths | 4 ft, 6 ft |
| Use | Single-use, permanent cast-in anchor |
| Standards | ANSI Z359.1-2007; ANSI A10.32-2004; OSHA 1926.500-503 |
| Packaging | Sold in multi-packs; select length and pack in the options |
| Packaging | Sold in multi-packs. Pack quantity is set per option so each pack is an economical order; choose your option above. |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7448L Submittals and Documentation
7448L Instruction Manual (PDF)Installation, capacity, and inspection. 7448L Declaration of Conformity (PDF)Certification to ANSI Z359.1-2007 and A10.32-2004 (FallTech test lab). 7448L Spec Sheet (PDF)One-page specifications summary.Related Anchors
