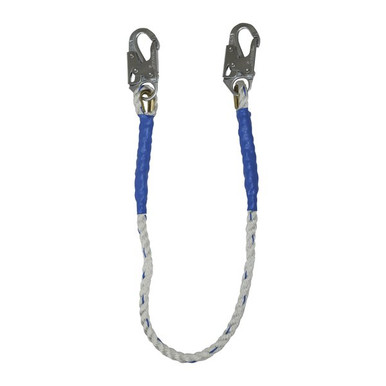

FallTech Rope Restraint Lanyard with Snap Hooks
Features low-stretch premium 5/8" 3-strand twisted polyester rope. Includes alloy steel snap hooks for harness and anchorage connections.
Steel thimbles and splice-protecting shrink tube are included for lasting durability. Restraint lanyard effectively restricts users from reaching identified fall hazards.
Who Needs This Product
Restraint is the smartest fall protection there is: rig the lanyard short enough that the worker cannot reach the edge, and the fall never starts. Crews use fixed and adjustable restraint lanyards on roofs, aerial lifts, and elevated platforms where the work zone can be defined. Restraint lanyards have no energy absorber because they are never exposed to free fall.
Features
Features low-stretch premium 5/8" 3-strand
Features low-stretch premium 5/8" 3-strand twisted polyester rope.
Includes alloy steel snap hooks
Includes alloy steel snap hooks for harness and anchorage connections.
Steel thimbles and splice-protecting shrink
Steel thimbles and splice-protecting shrink tube are included for lasting durability.
Restraint lanyard effectively restricts users
Restraint lanyard effectively restricts users from reaching identified fall hazards.
Complies
Complies with ANSI Z359.3-2019.
Restraint only works if the edge stays out of reach. This lanyard has no energy absorber and is never rated for free fall. Rig it so the worker cannot reach the fall hazard at full extension, or use a fall arrest connector instead.
Compliance Standards
ANSI Z359.3-2019
Applicable requirement for this equipment: ANSI Z359.3-2019.
OSHA 1926.502
Construction fall protection criteria for personal fall arrest system components, including connectors, lanyards, and lifelines.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Measure the zone. The lanyard length, plus your reach, must stop short of the fall hazard.
- Connect both ends. Harness attachment to a rated anchor with the hooks or loop provided.
- Set adjustable models. Dial the length so the edge is out of reach even at full stretch.
- Keep it restraint. If the geometry allows any free fall, switch to an energy absorbing lanyard or SRL.
- Inspect and log. Webbing, hardware, and stitching before each use.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually.
- Webbing, rope, or cable: cuts, fraying, kinks, corrosion.
- Adjusters: hold position under load; no slipping.
- Hooks: gates close and lock; no deformation.
- Labels: legible and logged.
Retirement triggers: any fall loading, damaged line or hardware, or a failed inspection.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Restraint Lanyard |
|---|---|
| SKU | 815X |
| Static Strength | 5,000 lb min. |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 425 lb max. |
| Rope | 3-strand Polyester; 5,000 lb min. static strength |
| Connectors | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 8153 (3 ft), 8154 (4 ft), 8156 (6 ft) |
| Standards | ANSI Z359.3-2019; OSHA 1926.502 and 1910.66 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 8153 Submittals and Documentation
815X Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 815X Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 815X Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.Complete Your Fall Protection System
- FallTech Adjustable Web Restraint Lanyard. Part of the FallTech connector line.
- FallTech Web Restraint Lanyard with Snap Hooks. Fixed-length restraint from 2 to 8 ft.
- FallTech Steel Carabiner, Z07 Triple-Lock, 3600 lb Gate. The Z07 steel triple-lock line.
- FallTech Internal Shock Absorbing Lanyard, 6 ft Single. The everyday internal EAL.
Specifying Lanyards and Connectors for Your Crew?
Hook styles, free fall ratings, webbing families, and clearances: call us and we will match the connector to the trade before it ships. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
