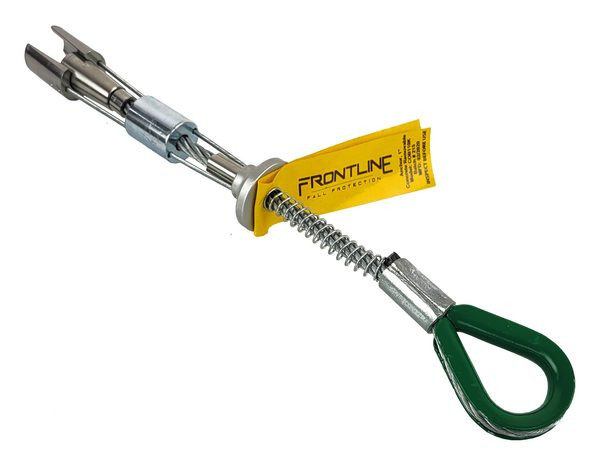

COB110K Reusable 10K Concrete Anchor Bolt
The COB110K is the 10,000 lbf version of Frontline's most popular concrete anchor - a portable, reusable anchor bolt that installs in a matter of seconds. Drill a 1 inch hole in the concrete, insert the bolt, and the stainless steel spoons and cone lock it into the substrate to create an immediate anchorage connector. When the work moves, the anchor removes just as fast and reinstalls at the next tie-off point.
At 13.75 inches long and just 1 lb, it works on vertical or horizontal concrete applications wherever a 1 inch hole can be drilled at least 10 inches from any edge. The anchor is built from stainless steel, zinc plated steel, aluminum, and aircraft cable, carries a 310 lb user capacity, and conforms to ANSI Z359.7-2011 and ANSI Z359.18 with OSHA 1926.502, OSHA 1910.140, and EN 795 alignment.
Who Needs This Product
This product is a reusable anchorage connector - the anchor point of a personal fall arrest system on concrete. Concrete crews, bridge and parking structure contractors, and facade access teams drop it into a drilled hole wherever a high-strength tie-off is needed, then pull it and move on. Each worker still needs a full body harness and a compatible connecting device attached to the anchor eye.
Features
Seconds to install
Once the 1 inch hole is drilled, the anchor bolt sets in a matter of seconds - no adhesives, no cure time.
Fully removable and reusable
Pull the anchor when the work moves and reinstall it at the next location, job after job.
10,000 lbf tensile strength
Double the strength of the 5K version for applications that demand a higher rated anchor.
Vertical or horizontal
Works in walls, decks, and soffits wherever hole placement meets the manual requirements.
Corrosion resistant build
Stainless steel spoons and cone with zinc plated steel, aluminum, and aircraft cable components.
Truly portable
At 13.75 inches and 1 lb, a single worker can carry several anchors to the work area.
Technical Specifications
| SKU | COB110K |
|---|---|
| Type | Reusable concrete anchor bolt (removable anchorage connector) |
| Material | Stainless steel spoons/cone, zinc plated steel, aluminum, aircraft cable |
| Tensile strength | 10,000 lbf / 44 kN |
| Max user weight | 310 lbs (one worker) |
| Working load | See user manual |
| Length | 13.75 in (349 mm) |
| Hole requirement | 1 in diameter, drilled at least 10 in from any edge |
| Anchor weight | 1 lb (product page) |
| Application | Concrete, vertical or horizontal, removable and reusable |
| Standards | ANSI Z359.7-2011; ANSI Z359.18; OSHA CFR 1926.502; OSHA CFR 1910.140; EN 795 |
The concrete carries the load. The concrete substrate must be verified by a qualified person for the intended fall protection load before use, and the hole must meet the manual requirements for diameter, depth, and the 10 inch minimum edge distance. One worker per anchor at 310 lbs maximum - calculate fall clearance before tying off.
Compliance Standards
ANSI Z359.7-2011
Qualification and verification testing of fall protection products by accredited third-party laboratories.
ANSI Z359.18
American National Standard for anchorage connectors used in active fall protection systems.
OSHA 29 CFR 1926.502
Federal construction fall protection criteria, including anchorage strength requirements.
OSHA 29 CFR 1910.140
General industry personal fall protection system requirements for maintenance and facility work.
EN 795
European standard for personal fall protection anchor devices.
Typical Applications
Installation Overview
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check the cable, spoons, cone, eye, and label before each installation.
- Verify structure. Have a qualified person confirm the concrete carries the intended fall protection load.
- Drill. Drill a 1 inch diameter hole to the manual depth, at least 10 inches from any edge, and clean it out.
- Insert. Insert the anchor bolt and set it per the manual - installation takes a matter of seconds.
- Verify. Confirm the anchor is fully seated and locked per the manual before loading.
- Connect. Attach the connecting device to the anchor eye and verify fall clearance before work begins.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Aircraft cable: broken wires, kinks, birdcaging, or corrosion.
- Spoons and cone: deformation, cracks, wear, or debris that prevents full engagement.
- Anchor eye: bending, nicks, gouges, or wear at the connection point.
- Overall hardware: corrosion or damage to the zinc plated and aluminum components.
- Markings: missing or illegible product label.
Retire the anchor immediately after any fall arrest event, any deformation, cable damage, or any condition where it cannot be verified as safe for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline COB110K Submittals and Documentation
Frontline COB110K Spec Sheet (PDF)Strengths, materials, dimensions, and the compliance summary. Frontline COB110K User Manual (PDF)Hole requirements, installation, removal, inspection, and retirement. Frontline COB110K Test Report (PDF)Third-party test results documenting the rated performance.Compatible and Related Products
- Frontline COB345K Reusable 5K Concrete Anchor Bolt. The 5,000 lbf version that sets in a 3/4 inch drilled hole.

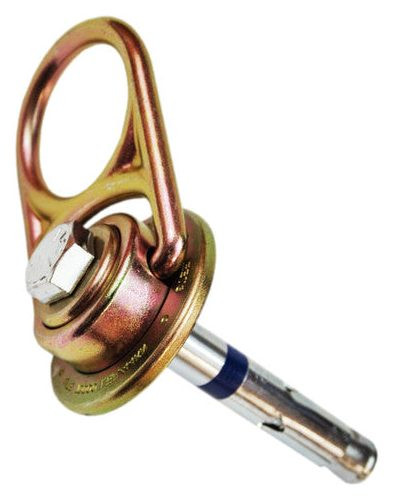

- Frontline COM3410K MEGA Swivel 10K Concrete Anchor. A 10K swivel D-ring anchor for concrete with a replaceable bolt.
