Concrete and Steel 10K Reusable Anchor Plate

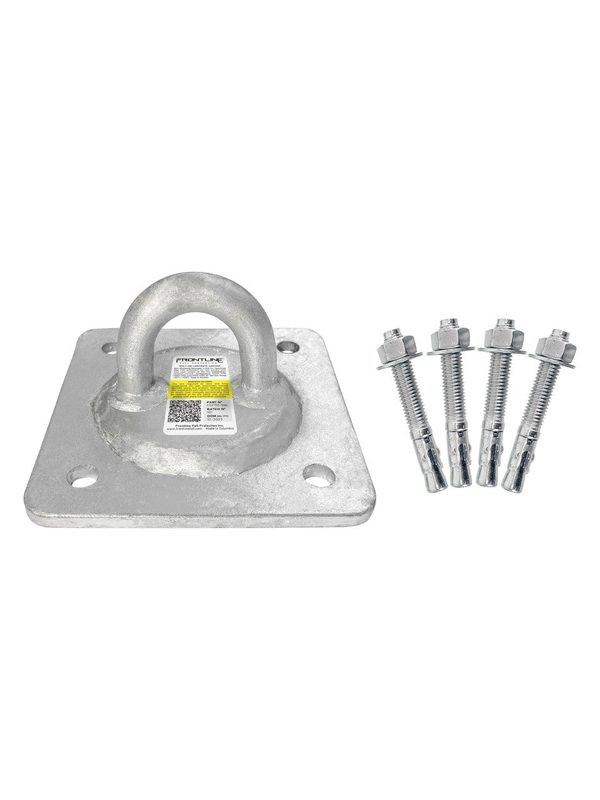

The Frontline COP02-10K is the heavy hitter of Frontline's bolt-on anchorage connector plates: a 6.5 in x 6.5 in rated steel Type T plate carrying a 10,000 lb tensile rating. Like its 5K sibling, it arrives with four pre-drilled holes and every concrete anchor bolt included, so it goes from bag to rated tie-off point in one drilling session on concrete walls, ceilings, columns, or steel members.
The whole plate is hot dip galvanized, the finish specified when anchor points live outdoors or stay installed for years. It installs in horizontal or vertical orientations and works as a relocatable crew anchor or a permanent tie-off point. Rated for one user at 130-310 lbs. The spec sheet claims ANSI Z359.18 and A10.32 plus OSHA 1926 and 1910.
Who Needs This Product
This product is a bolt-on anchorage connector plate. It provides the anchor-side tie-off point of a personal fall arrest or fall restraint system on concrete or steel structures, with the 10,000 lb rating jobs spec when they want a two-times margin over the standard 5K criterion. Pair it with a full body harness and an energy-absorbing lanyard or self-retracting lifeline. It is not a complete fall protection system on its own, and a competent person must verify the supporting structure before use.
Features
10,000 lb tensile rating
Double the common 5K anchorage criterion for specifications that demand the extra margin.
Hot dip galvanized
Full HDG coating protects the plate through years of exterior exposure and permanent installations.
Hardware included
Four pre-drilled holes and all concrete anchor bolts come in the bag, ready to install straight away.
Concrete or steel
One plate covers both substrates, so the same anchor standard works across the whole structure.
Type T anchorage connector
Plate-style Type T anchor per the Frontline spec sheet, installed in horizontal or vertical orientations.
Reusable
Relocate the plate with the crew or leave it installed as a permanent tie-off point.
Technical Specifications
| Model | COP02-10K |
|---|---|
| Tensile strength | 10,000 lbs |
| User capacity | 130-310 lbs, single user |
| Material | Rated steel, hot dip galvanized |
| Plate dimensions | 6.5 in x 6.5 in |
| Anchor type | Type T |
| Mounting | 4 pre-drilled holes; concrete anchor bolts included |
| Substrates | Concrete or steel |
| Shipping weight | Approx. 4 lbs |
The structure is the anchor. A 10,000 lb plate bolted to weak concrete is not a 10,000 lb anchor. A competent person must verify that the concrete or steel substrate, the fasteners, and the installation meet the requirements in the Frontline user manual before anyone ties off. Follow the manual's hole pattern, fastener, and torque requirements exactly.
Compliance Standards
ANSI Z359.18
American National Standards Institute standard for anchorage connectors used in active fall protection systems, as claimed on the Frontline spec sheet.
ANSI A10.32
Fall protection systems requirements for construction and demolition operations.
OSHA 1926
Federal OSHA construction industry fall protection regulations.
OSHA 1910
Federal OSHA general industry walking-working surfaces and fall protection regulations.
Typical Applications
Installation Overview
Follow the manufacturer's manual. The sequence below is an overview only.
- Select. Have a competent person choose sound structural concrete or steel that meets the manual's substrate requirements.
- Position. Place the plate where the tie-off keeps the lifeline aligned with the work and mark the four hole locations.
- Drill. Drill the four holes to the diameter and depth the manual specifies for the included anchor bolts.
- Fasten. Clean the holes, install all four supplied concrete anchor bolts, and torque per the manual.
- Verify. Confirm the plate sits flush, all fasteners are tight, and the D-ring is sound before connecting a system.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Bent, cracked, or deformed plate or D-ring
- Loose, missing, damaged, or corroded mounting bolts
- Damaged galvanizing with rust forming on the base steel
- Cracked, spalled, or deteriorated concrete around the fasteners
- Missing or illegible product labels and markings
- Any evidence the plate has arrested a fall
Remove the plate from service immediately if it has been subjected to fall arrest forces or fails any inspection point, and destroy retired equipment so it cannot be returned to use.
