Concrete and Steel D-Ring Reusable Anchor Plate

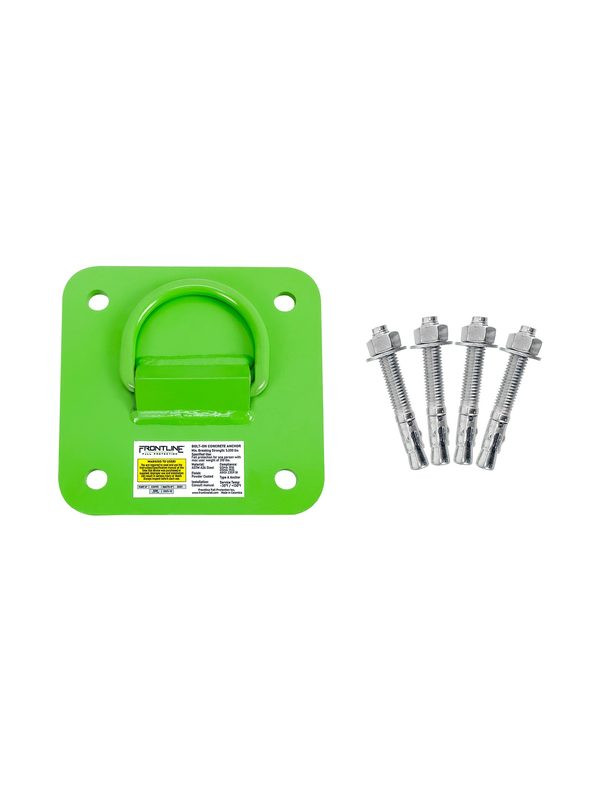

The Frontline COP01 is a bolt-on anchorage connector plate for concrete and steel structures. The 6 in x 6 in ASTM rated steel plate carries a welded D-ring and four pre-drilled mounting holes, and every concrete anchor bolt needed for installation comes in the bag, ready to use. Bolt it to a wall, ceiling, column, or steel member, tie off to the D-ring, and you have a 5,000 lbf rated anchor point exactly where the work is.
The plate installs in horizontal or vertical orientations and works as either a temporary anchor that moves with the crew or a permanent tie-off point that stays with the structure. Powder-coated safety green so it reads as fall protection at a glance. Rated for one user at 130-310 lbs. The spec sheet claims ANSI Z359.18 and A10.32 plus OSHA 1926 and 1910. Sold as a 2-pack — two concrete anchor plates for $149, shipped together in one order.
Who Needs This Product
This product is a bolt-on anchorage connector plate. It provides the anchor-side tie-off point of a personal fall arrest or fall restraint system on concrete or steel structures. Pair it with a full body harness and an energy-absorbing lanyard or self-retracting lifeline. It is not a complete fall protection system on its own, and a competent person must verify the supporting structure before use.
Features
Bolt-on D-ring anchorage
A welded D-ring on a 6 in x 6 in plate puts a rated tie-off point on walls, ceilings, columns, and steel members.
Hardware included
Four pre-drilled holes and all concrete anchor bolts come in the bag, ready to install straight away.
Concrete or steel
One plate covers both substrates, so the same anchor standard works across the whole structure.
Temporary or permanent
Use it as a relocatable crew anchor or leave it installed as a permanent tie-off point.
ASTM rated steel
Plate stock is ASTM rated steel, powder-coated safety green for visibility and corrosion protection.
Horizontal or vertical mounting
Installs and works in horizontal or vertical applications per the user manual.
Technical Specifications
| Model | COP01 |
|---|---|
| Tensile strength | 5,000 lbf / 22 kN |
| User capacity | 130-310 lbs, single user |
| Material | ASTM rated steel, powder-coated safety green |
| Plate dimensions | 6 in x 6 in |
| Mounting | 4 pre-drilled holes; concrete anchor bolts included |
| Substrates | Concrete or steel |
| Service | Temporary or permanent |
| Shipping weight | Approx. 5 lbs |
| Sold As | 2-Pack (2 per order) |
The structure is the anchor. The plate is only as strong as what it is bolted to. A competent person must verify that the concrete or steel substrate, the fasteners, and the installation meet the requirements in the Frontline user manual before anyone ties off. Follow the manual's hole pattern, fastener, and torque requirements exactly.
Compliance Standards
ANSI Z359.18
American National Standards Institute standard for anchorage connectors used in active fall protection systems, as claimed on the Frontline spec sheet.
ANSI A10.32
Fall protection systems requirements for construction and demolition operations.
OSHA 1926
Federal OSHA construction industry fall protection regulations.
OSHA 1910
Federal OSHA general industry walking-working surfaces and fall protection regulations.
Typical Applications
Installation Overview
Follow the manufacturer's manual. The sequence below is an overview only.
- Select. Have a competent person choose sound structural concrete or steel that meets the manual's substrate requirements.
- Position. Place the plate where the tie-off keeps the lifeline aligned with the work and mark the four hole locations.
- Drill. Drill the four holes to the diameter and depth the manual specifies for the included anchor bolts.
- Fasten. Clean the holes, install all four supplied concrete anchor bolts, and torque per the manual.
- Verify. Confirm the plate sits flush, all fasteners are tight, and the D-ring is sound before connecting a system.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Bent, cracked, or deformed plate or D-ring
- Loose, missing, damaged, or corroded mounting bolts
- Cracked or chipped powder coating with rust on the base steel
- Cracked, spalled, or deteriorated concrete around the fasteners
- Missing or illegible product labels and markings
- Any evidence the plate has arrested a fall
Remove the plate from service immediately if it has been subjected to fall arrest forces or fails any inspection point, and destroy retired equipment so it cannot be returned to use.
