ROSU01SS Stainless Steel Permanent Use Roof Anchor – 5-Pack

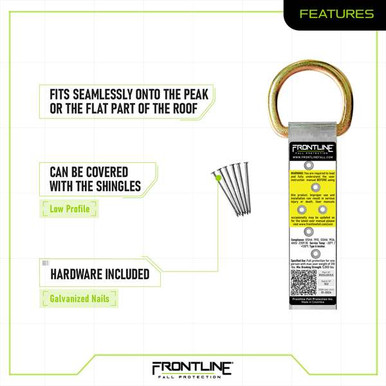

This 5-pack includes five Frontline ROSU01SS permanent-use roof anchors. Each one disappears into the roof: fasten the 9 in stainless steel strap at the peak or on the flat of the roof, shingle over the base, and the zinc plated D-ring stays presented for tie-off - this season, and every season after.
The electro polished stainless steel construction is built for a life outdoors, carrying a 5,000 lb breaking strength at a net weight of just 0.35 lbs. The D-ring offers a 1.9 in opening for easy connections. Per the Frontline spec sheet it meets ANSI Z359.18 and aligns with OSHA 1910 and 1926, and hardware is included. Also available as a 20-pack.
Who Needs This Product
This product is a permanent single-point anchorage connector for personal fall arrest or restraint systems on residential and light commercial roofs. Roofers install it during the roofing job and leave it for future maintenance access; solar and service crews tie off to anchors that were planned years before. Each worker still needs a full body harness and a compatible connecting device attached to the D-ring.
Features
Set it and shingle it
The base installs at the peak or flat of the roof and disappears under the shingle courses.
Stainless for life
Electro polished stainless steel shrugs off decades of weather exposure.
Always-ready D-ring
A 1.9 in opening zinc plated D-ring stays presented for future tie-offs.
5,000 lb strength
Full anchorage-grade breaking strength from a 0.35 lb anchor.
Hardware included
Fasteners ship with the anchor.
Crew-friendly price point
Economical enough to anchor every roof - also sold as a 20-pack.
Technical Specifications
| SKU | ROSU01SS-5PK (5 anchors per pack) |
|---|---|
| Type | Permanent use roof anchor (single D-ring anchorage connector) |
| Anchor material | Stainless steel, electro polished |
| D-ring | Steel, zinc plated, 1.9 in opening |
| Dimensions | 9 in x 3-1/8 in |
| Net weight | 0.35 lbs |
| Breaking strength | 5,000 lbs |
| Installation | Peak or flat of roof; can be covered with shingles |
| Hardware | Included |
| Standards | ANSI Z359.18; OSHA 1910; OSHA 1926 |
Permanent means planned. Locate each anchor over structure per the Frontline manual, fasten with the specified hardware into sound framing, and document the installation - the next crew will trust this anchor years from now. One worker per anchor.
Compliance Standards
ANSI Z359.18
American National Standard for anchorage connectors for active fall protection systems, per the Frontline spec sheet.
OSHA 29 CFR 1926.502
Federal construction fall protection criteria, including anchorage strength requirements.
OSHA 29 CFR 1910.140
General industry personal fall protection system requirements.
Typical Applications
How to Install the ROSU01SS
Follow the manufacturer's manual. The sequence below is an overview only.
- Plan the layout. Locate anchors over structural framing per the Frontline manual and the work zones they will serve.
- Inspect the anchor. Check the strap, D-ring, and welds before installation.
- Position at the peak or flat. Set the base so the D-ring presents toward the work area.
- Fasten. Install the included hardware into sound structure per the manual pattern.
- Shingle over. Cover the base with roofing material, leaving the D-ring exposed.
- Connect and verify. Pull-test the D-ring and confirm fall clearance before each use.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- D-ring: deformation, cracks, corrosion, or wear at the strap interface.
- Strap and welds: bending, cracking, or corrosion staining.
- Fasteners: withdrawal, shear, or structure damage at the mounting points.
- Roofing interface: water intrusion or rot around the anchor base.
- Markings: labels must be present and legible where visible.
Retire and replace the anchor immediately after any fall arrest event or if any inspection point fails. A permanent anchor that cannot be verified must be treated as unusable.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline ROSU01SS Submittals and Documentation
Frontline ROSU01SS Spec Sheet (PDF)Materials, dimensions, strength rating, and standards for the single D-ring anchor. Frontline ROSU SS User Manual (PDF)Installation, inspection requirements, and inspection log for ROSU01SS and ROSU02SS. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog with the complete anchor, lanyard, and SRL range.Compatible and Related Products
- Frontline ROSU01SS Roof Anchor, 20-Pack. The same anchor in a 20-pack for production crews.
- Frontline ROSU02SS Double D-Ring Roof Anchor. The double D-ring version on an 18 in base.
- Frontline ROSU02 Hinged Steel Roof Anchor. An economical hinged anchor for wooden beams.
Planning Permanent Tie-Off Points?
Need help laying out permanent anchors for a roof or a whole development? Confirm your application, anchorage, and clearance with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
