ROSU02SS Stainless Steel Roof Anchor, Double D-Ring, 20-Pack
The Frontline ROSU02SS doubles the connection points of a permanent roof anchor: an 18 in electro polished stainless steel base plate carries a zinc plated D-ring at each end, so the anchor straddles the peak and serves both slopes - or covers two work zones on a flat run.
Like its single-ring sibling, the base shingles over for a clean, permanent installation. It carries a 5,000 lb breaking strength at 0.7 lbs net weight, with 1.9 in D-ring openings, and Intertek tested it to ANSI/ASSP Z359.18-2017 as a Type A anchorage connector on wood substrate. Hardware is included. Also available as a 20-pack. This listing is the 20-pack: twenty individually packaged anchors in one order, ready to outfit a full crew or a full development.
Who Needs This Product
This product is a permanent double-point anchorage connector for personal fall arrest or restraint systems on residential and light commercial roofs. Installed straddling the ridge, one anchor presents a D-ring to each roof slope - roofers, solar crews, and maintenance teams tie off to whichever side they work. One worker per D-ring per the manual, each with a full body harness and a compatible connecting device.
Features
Two D-rings, one anchor
A connection point at each end of the 18 in base serves both roof slopes.
Ridge-straddling design
Fits the peak or the flat of the roof; the base shingles over cleanly.
Stainless for life
Electro polished stainless steel base built for permanent exposure.
5,000 lb strength
Full anchorage-grade breaking strength at 0.7 lbs net weight.
Independently tested
Intertek Z359.18-2017 Type A test report included in Submittals.
Hardware included
Fasteners ship with the anchor - also sold as a 20-pack.
Technical Specifications
| SKU | ROSU02SS |
|---|---|
| Type | Permanent use roof anchor, double D-ring anchorage connector |
| Base plate | Stainless steel, electro polished, 18 in x 3-1/8 in |
| D-rings | Steel, zinc plated, 1.9 in openings |
| Net weight | 0.7 lbs |
| Breaking strength | 5,000 lbs |
| Installation | Peak or flat of roof; can be covered with shingles |
| Hardware | Included |
| Standards | ANSI Z359.18-2017 Type A (Intertek tested); OSHA 1910; OSHA 1926 |
| Sold As | 20-Pack (20 anchors per order) |
Permanent means planned. Locate each anchor over structure per the Frontline manual, fasten with the specified hardware into sound framing, and document the installation. Each D-ring serves one worker per the manual - never two on one ring.
Compliance Standards
ANSI Z359.18-2017 Type A
American National Standard for anchorage connectors. Intertek tested the ROSU02SS on wood substrate: design, static, abrasion-conditioned dynamic, and residual strength all PASS - see the test report in Submittals.
OSHA 29 CFR 1926.502
Federal construction fall protection criteria, including anchorage strength requirements.
OSHA 29 CFR 1910.140
General industry personal fall protection system requirements.
Typical Applications
How to Install the ROSU02SS
Follow the manufacturer's manual. The sequence below is an overview only.
- Plan the layout. Locate anchors over structural framing per the Frontline manual and the work zones each D-ring will serve.
- Inspect the anchor. Check the base plate, both D-rings, and welds before installation.
- Straddle the peak. Set the 18 in base across the ridge (or along the flat) so each D-ring presents to its slope.
- Fasten. Install the included hardware into sound structure per the manual pattern.
- Shingle over. Cover the base with roofing material, leaving both D-rings exposed.
- Connect and verify. Pull-test each D-ring and confirm fall clearance before each use.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- D-rings: deformation, cracks, corrosion, or wear at the base interface.
- Base plate and welds: bending, cracking, or corrosion staining.
- Fasteners: withdrawal, shear, or structure damage at the mounting points.
- Roofing interface: water intrusion or rot around the anchor base.
- Markings: labels must be present and legible where visible.
Retire and replace the anchor immediately after any fall arrest event or if any inspection point fails. A permanent anchor that cannot be verified must be treated as unusable.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline ROSU02SS-20PK Submittals and Documentation
Frontline ROSU02SS Spec Sheet (PDF)Materials, dimensions, strength rating, and standards for the double D-ring anchor. Frontline ROSU SS User Manual (PDF)Installation, inspection requirements, and inspection log for ROSU01SS and ROSU02SS. Frontline ROSU02SS Test Report (PDF)Intertek third-party test results to ANSI/ASSP Z359.18-2017 Type A on wood. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog with the complete anchor, lanyard, and SRL range.Compatible and Related Products
- Frontline ROSU02SS Stainless Steel Permanent Use Roof Anchor, Double D-Ring. The single-unit listing of this anchor.

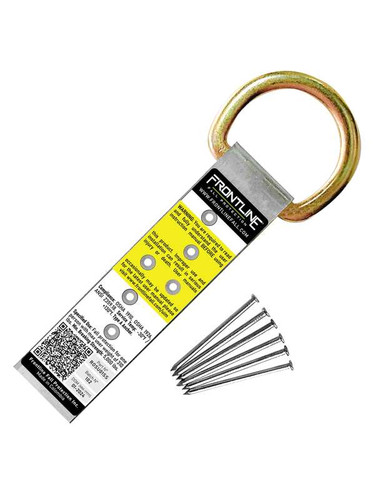

- Frontline ROSU01SS Stainless Steel Roof Anchor. The single D-ring version on a 9 in base.
- Frontline RK050V50 Combat Plus Roofers Kit. A complete harness, lifeline, and anchor kit for roofing crews.
Stocking Anchors for a Whole Crew?
Volume orders, mixed-anchor packages, and standing programs are our specialty. Confirm your application, anchorage, and clearance with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
