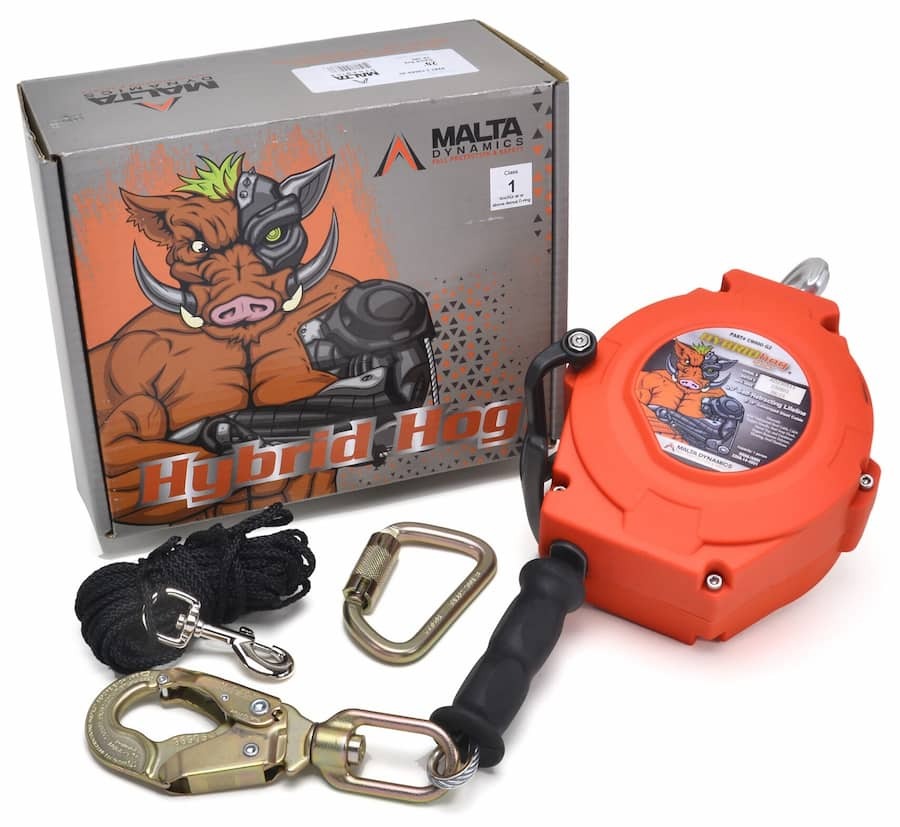

Malta Dynamics C9000 20-foot Hybrid Hog SRL – Class 1 Protection with Internal Shock Absorption
The Malta Dynamics C9000 20-foot Hybrid Hog SRL delivers premium fall protection with the perfect balance of innovation and durability. As a Class 1 Self-Retracting Lifeline, it sets a new standard for professionals working at height, combining a rugged galvanized steel cable with a compact, high-impact thermoplastic housing. Whether you are navigating a construction site or an industrial facility, this SRL offers the reliability required for overhead anchorage. For those needing an expanded reach, consider the Malta Dynamics C9001-G2 30-foot Hybrid Hog SRL.
Innovation in Fall Arrest.
Watch this technical overview to see the Hybrid Hog’s internal shock absorption system and dual-swivel technology in action.
Advanced Internal Shock Absorption and Rapid Arrest
At the core of the C9000 is an advanced internal shock absorption system designed to significantly reduce impact forces during a fall. This mechanism provides a maximum arresting distance of only 24 inches, keeping the worker secure and minimizing the risk of injury. The self-locking alloy steel snap hook ensures a secure connection, while the 360° swivel top and bottom connectors prevent the lifeline from tangling, allowing for seamless movement across the job site.
Rugged Durability for Harsh Environments
The C9000 features a 3/16″ galvanized steel cable paired with a high-strength thermoplastic polymer housing, ensuring long-term performance in demanding conditions. This hybrid construction provides the impact resistance of steel where it counts while maintaining a portable weight of only 11.3 lbs. The integrated carry handle makes transport effortless, and the stackable design allows for efficient storage of your fall protection inventory.
Compliance and Safety Standards
The Malta Dynamics C9000 20-foot Hybrid Hog SRL meets and exceeds ANSI Z359.14-2021 Class 1 standards and is fully compliant with OSHA 1926 Subpart M and OSHA 1910. Designed for workers in the 130–310 lb capacity range, it delivers an average arresting force of 900 lbs. To maintain documented safety logs, always utilize the Malta Dynamics SRL Inspection Form before each shift.
Malta Dynamics C9000 Technical Submittal Data & Compliance Docs:
- Malta Dynamics 30-foot Hybrid Hog Dual Class C9000 Technical Spec Sheet – Full dimensional data and gate strength ratings.
- C9000 Declaration of Conformity – OSHA/ANSI testing and compliance certification.
- C9000 Owner's Manual – Detailed guide on installation, use, and overhead anchoring.
Malta Dynamics C9000 Hybrid Hog FAQ
1. What makes this a "Hybrid" SRL?
The Hybrid Hog earns its name by combining the lightweight portability of a thermoplastic housing with the heavy-duty performance of a galvanized steel cable. This provides the best of both worlds: a unit that is easy to transport but tough enough for the most abrasive job sites.
2. Can I use the C9000 for foot-level tie-off?
No. The C9000 is an ANSI Class 1 device, designed strictly for overhead anchorage. If your application requires anchoring at your feet, you must use a Class 2 Leading Edge SRL.
3. Why are the 360-degree swivels on both the top and bottom important?
Dual swivels ensure the lifeline rotates freely at both the anchor point and the harness connection. This prevents the steel cable from kinking or twisting during movement, extending its life and preventing dangerous "bird-caging."
4. How does the internal shock absorber differ from an external one?
The internal shock absorber is housed inside the thermoplastic shell, protecting it from UV rays, chemicals, and physical damage. This makes the unit more compact and eliminates the "trip hazard" often associated with bulky external shock packs.
5. What is the maximum arresting distance for this 20-foot SRL?
The C9000 is engineered to arrest a fall within 24 inches when used in an overhead application. Always refer to the C9000 Owner's Manual linked above to calculate total fall clearance for your specific site.
6. Does the galvanized cable require any special maintenance?
The cable should be kept clean and dry. Avoid applying grease or oil, as this can attract grit that damages the internal braking mechanism. If you need a version with an even longer reach, see the Malta Dynamics 30-foot Hybrid Hog Dual Class.
7. How do I perform a pre-use "Strike Test"?
- 1. Pull Sharply: Grasp the cable and pull it quickly downward. The internal brakes must engage instantly.
- 2. Check Retraction: Ensure the cable retracts smoothly back into the housing without catching or lagging.
- 3. Visual Inspection: Check the fall indicator on the snap hook; if it has been deployed, remove the unit from service immediately. Always document inspections using our downloadable form.
