Malta Dynamics C8001-G2 30-foot Razorback SRL – Heavy-Duty Aluminum Fall Protection
The Malta Dynamics C8001-G2 30-foot Razorback SRL offers extended reach without sacrificing the durability and dependability required for industrial job sites. Featuring a 30-foot galvanized steel cable, this Class 1 SRL provides an ideal solution for professionals needing maximum mobility and reliable fall protection at height. Built with a rugged, heavy-duty aluminum housing, the Razorback is engineered to perform in the most challenging environments.
Razorback Resilience.
Watch this technical breakdown to see the Razorback’s quick-action braking system and durable aluminum construction in action.
Advanced Quick-Action Braking System
Engineered with a state-of-the-art centrifugal braking system, the 30-foot Razorback SRL engages immediately upon detecting a fall. This advanced mechanism minimizes the arresting distance and reduces backlash within the housing, providing a fast, smooth arrest. Whether you are working on structural steel or large-scale construction projects, this SRL ensures your safety with precision engineering.
Rugged Construction for Industrial Environments

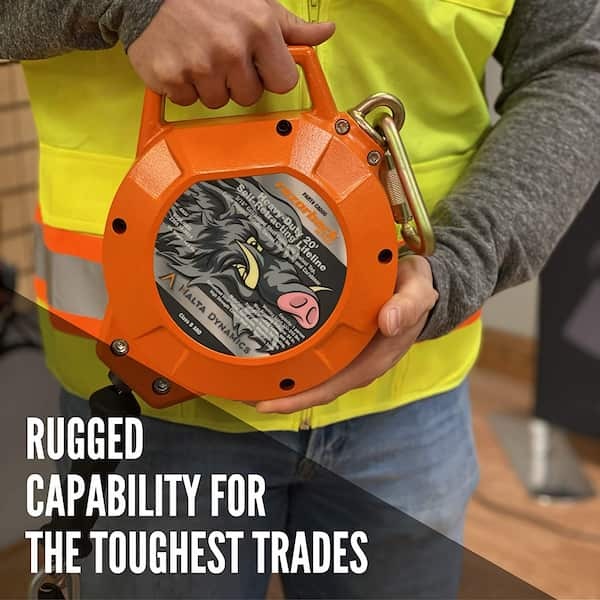

The C8001-G2 features a 19-lb heavy-duty aluminum housing that provides superior protection for the internal components against impacts and debris. The integrated carry handle allows for easy transport, while the 360-degree swivel top connection prevents the 3/16″ galvanized steel cable from tangling during movement. This rugged design ensures that the Razorback SRL performs consistently in the harshest outdoor conditions.
ANSI and OSHA Compliance

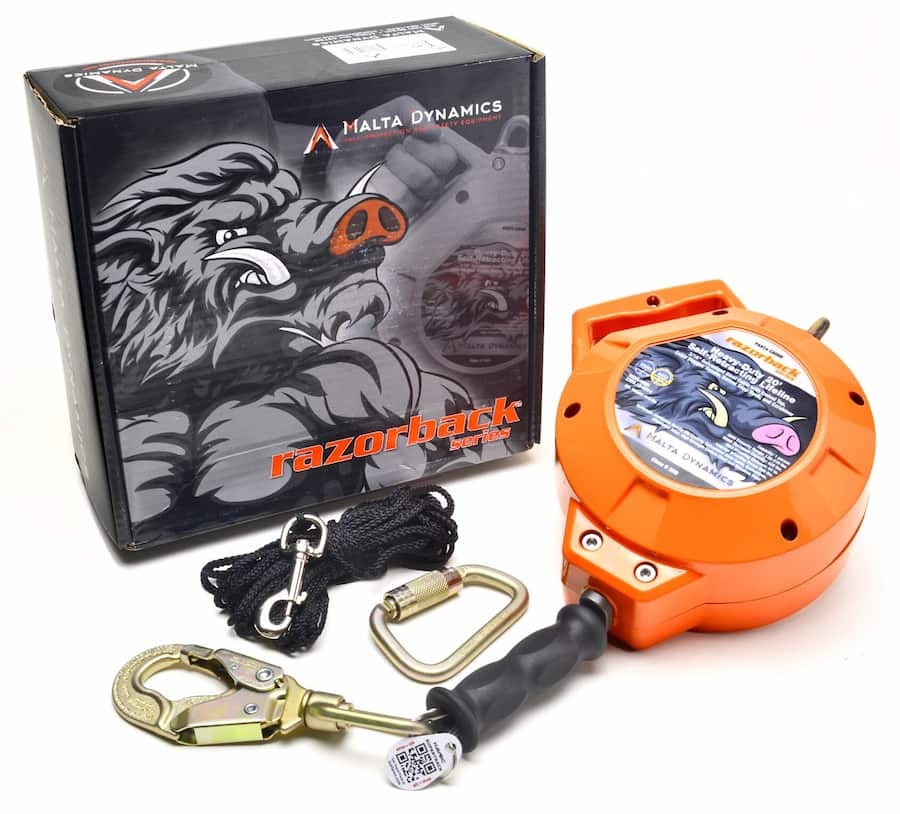

The Malta Dynamics C8001-G2 meets or exceeds all applicable safety standards, including ANSI Z359.14-2014, ANSI A10.32-12, and OSHA 1926 Subpart M. With a worker capacity range of 130–310 lbs, this SRL is a reliable choice for fall arrest and fall restraint across various industries. The unit comes complete with an installation carabiner and tagline for quick, safe deployment.
Malta Dynamics C8001-G2 Technical Submittal Data & Compliance Docs:
- C8001-G2 Technical Spec Sheet – Full dimensional data and arrest force ratings.
- C8001-G2 Declaration of Conformity – OSHA/ANSI compliance certification.
- C8001-G2 Owner's Manual – Detailed guide on installation, use, and maintenance.
Malta Dynamics C8001-G2 Razorback SRL FAQ
1. What is the advantage of the aluminum housing on the Razorback series?
Unlike thermoplastic housings, the cast aluminum housing on the C8001-G2 offers superior resistance to crushing, extreme temperatures, and heavy impact. This makes it the preferred choice for rugged environments like structural steel erection and heavy industrial maintenance.
2. Is this 30-foot SRL rated for Leading Edge work?
No. The C8001-G2 is a Class 1 SRL designed for overhead anchorage only. It is not tested for contact with sharp edges during a fall. If your work involves leading-edge risks, you must use a Class 2-rated SRL.
3. How do I properly inspect the fall indicator on the snap hook?
The swivel snap hook contains a red warning indicator that becomes visible if the unit has arrested a fall. If you see red near the snap hook eyelet, the unit must be removed from service immediately. Refer to the C8001-G2 Owner's Manual listed above for detailed inspection protocols.
4. What is a "Strike Test" and how often should I perform it?
A strike test involves pulling the cable sharply and quickly to ensure the internal brakes engage instantly. This test must be performed before every use as part of your daily inspection routine.
5. Does the galvanized steel cable require lubrication?
No. The cable should be kept clean and dry. Applying grease or oil can attract dirt into the housing, which can gum up the braking mechanism over time. Wipe the cable with a clean, dry cloth if it becomes soiled.
6. What is the worker weight capacity for the Razorback SRL?
The unit is rated for a total worker weight (including tools and clothing) of 130–310 lbs. Exceeding this range may cause the device to operate outside its ANSI safety testing parameters.
7. How do I avoid common mistakes when using a 30-foot SRL?
- 1. Swing Fall Hazards: Ensure your anchor point is directly overhead. Working too far laterally can cause a dangerous pendulum swing during a fall.
- 2. Snap-Back Damage: Never release the hook and allow the cable to retract uncontrolled. This can damage the internal spring; always walk the line back to the housing.
- 3. Missing Inspections: Always document your pre-use checks. Use the Malta Dynamics SRL Inspection Form to maintain safety compliance.
