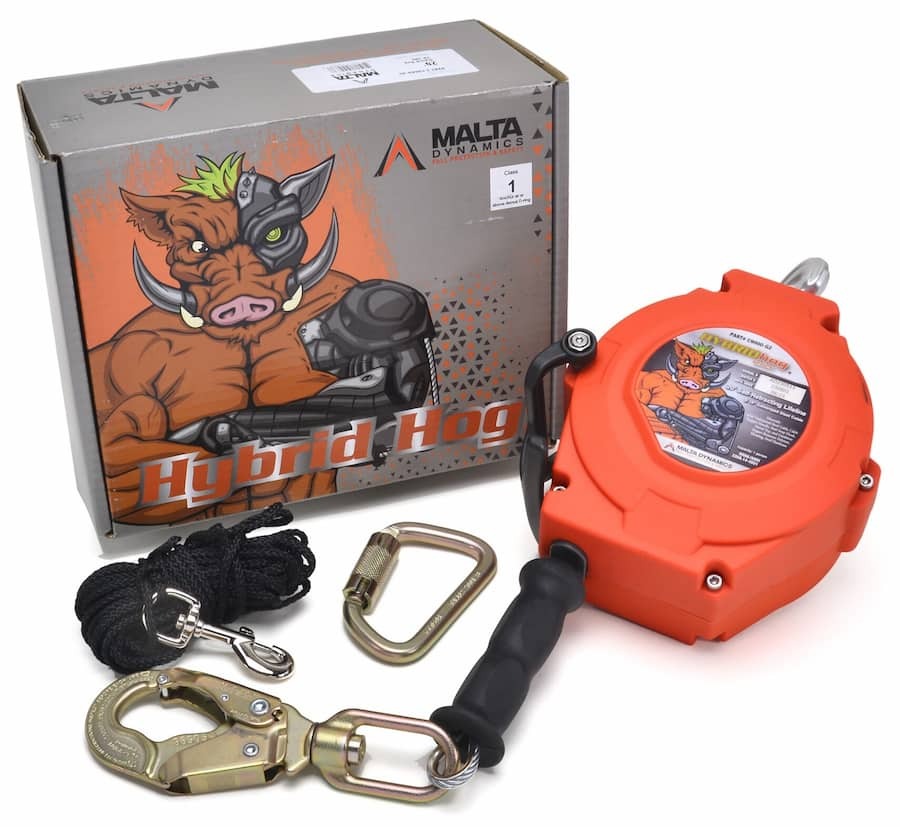

Malta Dynamics C9001 30-foot Hybrid Hog SRL – Extended Reach Class 1 Protection
The Malta Dynamics C9001 30-foot Hybrid Hog SRL delivers premium fall protection with an extended reach for maximum flexibility on the job site. As a Class 1 Self-Retracting Lifeline, the C9001 provides a rugged galvanized steel cable housed in a compact, high-impact thermoplastic shell. This model is engineered for professionals who require significant mobility without sacrificing durability or safety. For shorter-reach requirements, see the Malta Dynamics C9000 20-foot Hybrid Hog SRL.
Reach Further, Stay Safer.
Watch this technical breakdown to see how the Malta Dynamics C9001-G2 Hybrid Hog’s internal braking mechanism and 30-foot galvanized cable perform under fall arrest conditions.
Internal Shock Absorption for Superior Energy Management
Like the 20-foot model, the C9001 features a high-performance internal shock absorption system that significantly reduces impact forces. This device is optimized for workers in the 130–310 lb weight range, achieving a maximum arresting distance of only 24 inches. The 360° swivel top and bottom connectors prevent the 3/16″ steel cable from twisting or bird-caging, ensuring a smooth payout and retraction every time you clip in.
Durable Construction for Industrial-Scale Mobility
Built for the rigors of heavy construction and industrial maintenance, the C9001 utilizes a galvanized steel cable paired with a high-strength thermoplastic polymer housing. Despite its impressive 30-foot length, the unit remains portable at only 13.5 lbs. The ergonomic carry handle and stackable design make it an efficient addition to any safety inventory, while the rugged alloy steel components ensure longevity in abrasive environments.
OSHA and ANSI Z359.14-2021 Compliance
The Malta Dynamics C9001 30-foot Hybrid Hog SRL exceeds the latest ANSI Z359.14-2021 Class 1 standards and is fully compliant with OSHA 1926 Subpart M and 1910. With an average arresting force of 900 lbs, this SRL is a core component for a 100% compliant fall protection plan. Before every use, perform a pre-shift inspection and document your findings using the Malta Dynamics SRL Inspection Form.
Malta Dynamics C9001 Technical Submittal Data & Compliance Docs:
- C9001 Technical Spec Sheet – Full dimensional data and gate strength ratings.
- C9001 Declaration of Conformity – OSHA/ANSI testing and compliance certification.
- C9001 Owner's Manual – Detailed guide on installation, use, and overhead anchoring.
Malta Dynamics C9001 Hybrid Hog FAQ
1. Why choose the 30-foot Hybrid Hog over the 20-foot version?
The 30-foot reach is essential for workers who need a larger lateral working radius or are working on taller structural frames. If your anchor points are closer together and weight is your primary concern, the Malta Dynamics 20-foot C9000 model is about 2 lbs lighter.
2. Is the C9001 rated for Leading Edge work?
No. The C9001 is an ANSI Class 1 device designed for overhead anchorage only. For work where the lifeline may come in contact with a sharp or abrasive edge, you must use a Class 2 Leading Edge SRL.
3. What is the benefit of the galvanized steel cable?
Galvanized steel offers significantly higher abrasion resistance than synthetic webbing. This makes the Hybrid Hog better suited for environments with flying debris, welding sparks, or rough surfaces that could damage a web-based SRL.
4. How do the dual 360-degree swivels prevent cable damage?
By allowing the unit to rotate at both the top (anchor) and bottom (harness) connection points, the cable stays aligned with the user’s movement. This prevents twisting forces that lead to cable kinking or "bird-caging," which would otherwise require the unit to be removed from service.
5. What is the maximum arresting distance for this 30-foot model?
The C9001 is engineered to arrest a fall within 24 inches when anchored overhead. Always check the C9001 Owner's Manual above to ensure you have adequate fall clearance for your specific working height.
6. Does this SRL require annual factory recertification?
Under most conditions, the C9001 requires an annual on-site inspection by a competent person. However, if the unit arrests a fall or the fall indicator on the snap hook is visible, it must be removed from service immediately. Consult the technical manual for specific retirement criteria.
7. How do I perform a "Strike Test" on the C9001?
- 1. Sharp Pull: Pull the cable sharply and quickly away from the housing. The internal brakes must engage instantly.
- 2. Release: Slowly let the cable retract to ensure the spring is functioning correctly.
- 3. Documentation: Log your inspection on an official inspection log to stay OSHA compliant.
-
