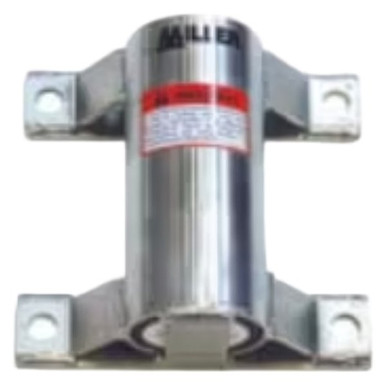

DuraHoist Wall Mount Sleeve, Zinc-Plated Steel
The DH-8ZP puts a davit position on a wall: a zinc-plated steel sleeve that bolts to vertical concrete or steel, accepting the DuraHoist davit mast with a slip-in installation. The compact profile keeps the deck clear when the davit is elsewhere.
Rated to 450 lb with 5,000 lb tensile strength, the sleeve includes a PVC liner that protects the mast and smooths every insertion.
Who Needs This Product
Permanent sleeve bases are how one davit serves many positions: install sleeves at each recurring entry or edge point, and the crew carries only the mast. The wall mount version claims vertical concrete and steel where a floor base has no deck to bolt to.
Features
Vertical Surface Mounting
Bolts to walls of concrete or steel where floor mounting is impossible.
Slip-In Mast Socket
The DuraHoist mast drops in and lifts out; the sleeve stays.
Zinc-Plated Strength
Mild steel plated against corrosion, rated 450 lb working and 5,000 lb tensile.
PVC Liner
Protects the mast finish and keeps insertions smooth for years.
Compact Profile
Minimal intrusion into walkways and confined work areas.
One-Mast Economics
Each sleeve is another position for the same davit system.
Technical Specifications
| SKU | DH-8ZP |
|---|---|
| Product | DuraHoist Wall Mount Sleeve |
| Material | Zinc-plated mild steel with PVC liner |
| Mounting | Vertical concrete or steel structures |
| Rating | 450 lb working; 5,000 lb tensile |
| Standards | Component of OSHA-compliant davit systems |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
The anchor is only as good as the structure. Connect only to members that meet OSHA anchorage strength, position to minimize free fall and swing, and inspect before every use.
Compliance Standards
OSHA 1926.502 Anchorage
Anchorages for fall arrest must support 5,000 lb per worker attached, or maintain a safety factor of two under a qualified person.
ANSI Z359 Practice
Anchorage connectors follow ANSI Z359 component practice with 5,000 lb rated hardware.
ANSI Z359.2
Kept in service through pre-use checks and documented competent person inspections at least annually.
Typical Applications
Setup Overview
- Inspect the anchor and hardware before use.
- Select structure that meets OSHA anchorage strength for fall arrest.
- Install the anchor per the instructions for the structure type.
- Connect the lanyard or SRL and verify gates lock.
- Verify fall clearance and swing fall exposure before working.
Full installation instructions ship with the product.
Inspection and Retirement
Inspect before each use and have a competent person inspect at least annually per ANSI Z359.2.
- Webbing or body: cuts, frays, corrosion, cracks, distortion, or damage.
- D-rings and hooks: no cracks, corrosion, distortion; gates lock where fitted.
- Stitching and fasteners: intact and tight.
- Labels: present and legible.
Retirement triggers: any fall arrest loading, any defect found during inspection, or failure to verify fitness for service.
