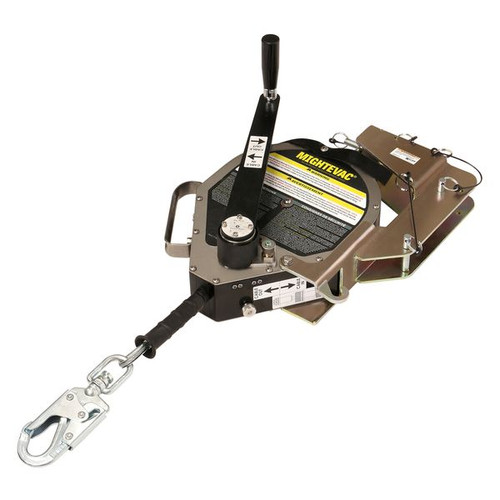

MightEvac Retrieval SRL Kit with 7 ft Tripod
The MightEvac kit is a complete confined space entry station: a MightyLite-series SRL with an integrated retrieval winch (SRL-R), 50 ft of galvanized cable, the tripod mounting bracket, pulley and carabiner, and the 7 ft tripod itself. When the entrant goes down, the attendant flips the unit to retrieval mode and cranks a 4:1 mechanical advantage.
Rated to 310 lb and meeting OSHA requirements with ANSI certification, the kit covers fall arrest during entry and emergency retrieval in one system.
Who Needs This Product
The kit answers the confined space math in one order: OSHA 1910.146 requires a retrieval system for permit-space entry, and improvising one out of separate parts invites incompatibility. The MightEvac arrests a fall like any SRL during the entry, then converts to a winch that one attendant can operate for the rescue OSHA requires you to be ready for.
Features
Integrated Retrieval Winch
The SRL-R mechanism converts from fall arrest to retrieval with a quick-activating engagement, no tools, no transfers.
4:1 Mechanical Advantage
The crank handle gives one attendant the leverage to raise an unconscious entrant.
Complete Kit
SRL, tripod bracket, pulley, carabiner, and 7 ft tripod arrive as one matched system.
Corrosion-Resistant Housing
Stainless steel and aluminum construction lives above manholes and vaults for years.
Heavy-Duty Carry Handle
The handle moves the unit between entry points and doubles as the rescue grip.
UV-Resistant Labeling
Scratch-resistant graphics keep ratings and inspection data legible.
Technical Specifications
| SKU | MME-GKT1-02/50FT |
|---|---|
| Product | MightEvac Retrieval SRL Kit with Tripod |
| Cable length | 50 ft galvanized steel |
| Retrieval | Integrated winch, 4:1 mechanical advantage |
| Includes | SRL-R unit, tripod bracket, pulley, carabiner, 7 ft tripod |
| Housing | Corrosion-resistant stainless steel and aluminum |
| Capacity | 310 lb including all clothing, tools, and equipment |
| Standards | OSHA 1926.502; OSHA 1910.146 retrieval provisions; certified ANSI |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Retrieval is not optional in permit spaces. OSHA 1910.146 requires retrieval equipment for vertical permit-space entry unless it increases risk. Stage the kit, train the attendant on the winch, and practice the conversion before the first entry.
Compliance Standards
OSHA 1910.146
Provides the non-entry retrieval capability OSHA requires for vertical permit-required confined space entry.
ANSI Certified
The SRL-R unit is certified to the applicable ANSI standards with a 310 lb weight rating.
OSHA 1926.502
Meets fall arrest connecting device requirements during the entry itself.
SRL-R Class
Integrated rescue retrieval self-retracting device: one unit for arrest and recovery.
Typical Applications
Setup Overview
- Inspect the housing, cable, load indicator, and connectors before use.
- Mount the unit to the tripod bracket or davit and secure the pulley and carabiner per the manual.
- Connect the lifeline snap hook to the harness dorsal D-ring and verify the gate locks.
- Check retraction and brake lock-up with a sharp pull before committing to the system.
- Verify fall clearance below the work level and keep the lifeline clear of edges not rated for contact.
Full use instructions and clearance tables ship with the unit.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Cable: pay it out fully and check for kinks, birdcaging, broken wires, and corrosion.
- Load indicator and absorber: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction and brake: smooth retraction and a positive lock on a sharp pull.
Retirement triggers: any fall arrest event, deployed indicator or absorber, cable damage, or any failed inspection.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Miller MME-GKT1-02 Submittals and Documentation
MME-GKT1-02 Specification Sheet (PDF)Technical data, clearances, and SKU-level UPC information. Miller Fall Protection Catalog (PDF)The full Miller line: body wear, connecting devices, anchors, and rescue. MME-GKT1-02 SRL Inspection Form (PDF)Printable pass/fail checklist for documented SRL inspections.Compatible and Related Products
- Miller TurboLite+ PFL, Carabiner and Snap Hook. The personal-size PFL for dorsal mounting.
- Miller TurboLite+ Edge PFL 9 ft, Snap Hook. The Class 2 personal unit for leading edge work.
- Miller T4500 Titan II Non-Stretch Harness. The harness under the SRL.
Sizing an SRL for Your Site?
Working length, edge exposure, and rescue needs decide the right unit. Confirm your conditions with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Miller Limited Lifetime Warranty
Miller Fall Protection products are covered by the Miller Limited Lifetime Warranty. In the manufacturer's words: "We sincerely believe that our fall protection equipment is the best in the world. Our products endure rigorous tests to ensure that the fall protection equipment you trust is manufactured to the highest standards. Miller fall protection products are tested to withstand normal wear and tear, but are not indestructible and can be damaged by misuse."
In the unlikely event that you should discover defects in either workmanship or materials, under the Limited Lifetime Warranty, Miller will repair or replace the product at the manufacturer's expense. If a replacement is necessary and your product is no longer available, a comparable product will be substituted. The Limited Lifetime Warranty does not apply to normal wear and tear or abusive treatment of the product.
Miller is a brand of Protective Industrial Products, Inc. (PIP). Should a product issue surface, contact Fall Protection Distributors, LLC and we will coordinate the warranty claim with the manufacturer.
