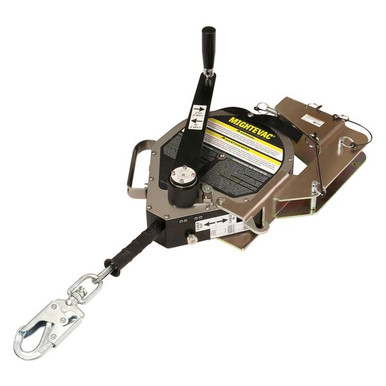

MightEvac Retrieval SRL with Tripod Bracket
The MightEvac SRL-R pairs a MightyLite-series self-retracting lifeline with an integrated retrieval winch: fall arrest during the entry, and a 4:1 mechanical advantage crank when the entrant has to come out. This package includes the tripod mounting bracket and pulley with carabiner, ready to mount on the tripod or davit you already own.
Rated to 310 lb and meeting OSHA requirements with ANSI certification. For crews without a tripod, the complete kit with the 7 ft tripod is also stocked.
Who Needs This Product
This is the MightEvac for programs that already own tripods and davits: the SRL-R, bracket, and pulley bolt onto existing structure, adding compliant retrieval to every entry point without buying legs you have twice over. One attendant works the crank; the 4:1 advantage does the lifting.
Features
Integrated Retrieval Winch
The SRL-R mechanism converts from fall arrest to retrieval with a quick-activating engagement.
4:1 Mechanical Advantage
The crank handle gives one attendant the leverage to raise an unconscious entrant.
Bracket and Pulley Included
Mounts to Miller tripods and compatible davits, with the pulley and carabiner routing the cable.
Corrosion-Resistant Housing
Stainless steel and aluminum construction lives above manholes and vaults for years.
Heavy-Duty Carry Handle
Moves the unit between entry points and doubles as the rescue grip.
UV-Resistant Labeling
Scratch-resistant graphics keep ratings and inspection data legible.
Technical Specifications
| SKU | MME-GCB1-02/50FT |
|---|---|
| Product | MightEvac Retrieval SRL with Bracket |
| Cable length | 50 ft galvanized steel |
| Retrieval | Integrated winch, 4:1 mechanical advantage |
| Includes | SRL-R unit, tripod bracket, pulley, carabiner |
| Housing | Corrosion-resistant stainless steel and aluminum |
| Capacity | 310 lb including all clothing, tools, and equipment |
| Standards | OSHA 1926.502; OSHA 1910.146 retrieval provisions; certified ANSI |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Retrieval is not optional in permit spaces. OSHA 1910.146 requires retrieval equipment for vertical permit-space entry unless it increases risk. Verify bracket compatibility with your tripod, train the attendant, and practice the conversion before the first entry.
Compliance Standards
OSHA 1910.146
Provides the non-entry retrieval capability OSHA requires for vertical permit-required confined space entry.
ANSI Certified
The SRL-R unit is certified to the applicable ANSI standards with a 310 lb weight rating.
OSHA 1926.502
Meets fall arrest connecting device requirements during the entry itself.
SRL-R Class
Integrated rescue retrieval self-retracting device: one unit for arrest and recovery.
Typical Applications
Setup Overview
- Inspect the housing, cable, load indicator, and connectors before use.
- Mount the unit to the tripod bracket or davit and secure the pulley and carabiner per the manual.
- Connect the lifeline snap hook to the harness dorsal D-ring and verify the gate locks.
- Check retraction and brake lock-up with a sharp pull before committing to the system.
- Verify fall clearance below the work level and keep the lifeline clear of edges not rated for contact.
Full use instructions and clearance tables ship with the unit.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Cable: pay it out fully and check for kinks, birdcaging, broken wires, and corrosion.
- Load indicator and absorber: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction and brake: smooth retraction and a positive lock on a sharp pull.
Retirement triggers: any fall arrest event, deployed indicator or absorber, cable damage, or any failed inspection.
