TACBU MEGApod Universal Bracket for Retrieval SRL
The Frontline TACBU is the universal mounting bracket that attaches a 3-way retrieval SRL block to a MEGApod tripod leg. It comes with a compatible bracket pre-assembled so the retrieval block installs fast, and a detent-pin arrangement makes leg mounting tool-free.
Machined from alloy steel with an ED-coated finish and weighing 10.5 lbs, the TACBU is the link between the MEGApod frame and the retrieval block that turns a tripod into a non-entry rescue system. Conforms to OSHA 1910.146 and ANSI Z359 within the system.
Who Needs This Product
This product is a confined space accessory - the bracket that mounts a retrieval SRL to a MEGApod tripod leg. It is part of the tripod retrieval system and requires the SRL, a harness, and a rescue plan to be complete.

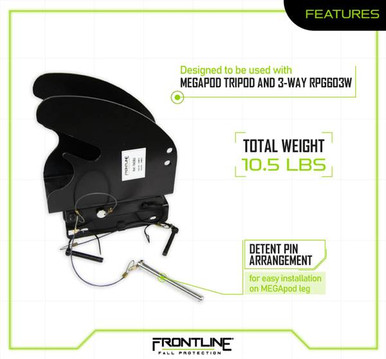

Features
Tool-free leg mount
The detent-pin arrangement installs the bracket on the MEGApod leg in seconds.
Carries the 3-way block
Mounts the retrieval SRL that arrests and recovers the worker.
Pre-assembled bracket
Ships with the compatible bracket ready to go.
Alloy steel, ED-coated
Tough and corrosion-resistant for confined space service.
Universal fit
Designed for the MEGApod tripod legs.
System component
Completes the retrieval setup with the SRL block.
Technical Specifications
| SKU | TACBU |
|---|---|
| Type | Universal bracket for retrieval SRL blocks (MEGApod) |
| Mount | MEGApod tripod leg, detent-pin arrangement |
| Material | Alloy steel, ED-coated |
| Weight | 10.5 lbs |
| Includes | Pre-assembled compatible bracket |
| Standards | OSHA 1910.146; ANSI Z359 (within the system) |
Confined space demands a rescue plan. This equipment is part of an entry and non-entry rescue system, not a substitute for the written, practiced rescue plan required by OSHA 1910.146. Verify every anchorage, base, and connection per the Frontline manual before any entry, and train your team first.
Compliance Standards
OSHA 29 CFR 1910.146
Permit-required confined spaces: entry, attendant, and rescue requirements.
ANSI Z359
Fall protection and rescue system standards for the system and its components.
OSHA 29 CFR 1926
Construction confined-space and fall-protection requirements.
Typical Applications
How to Use the TACBU
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check all load-bearing parts, moving parts, and the line before each use.
- Set up per the manual. Install and rig exactly as the Frontline manual specifies.
- Rig the system. Run the retrieval and/or fall arrest lines through the correct points.
- Connect the worker. Attach the harness per the rescue plan.
- Function-test. Test retrieval and confirm the plan with the attendant before entry.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Visual: deformation, cracks, corrosion, or damaged welds on load-bearing parts.
- Moving parts: pulleys, swivels, winch drum, and locks operate freely and lock positively.
- Line/cable: no broken wires, kinks, fraying, or corrosion; spools cleanly.
- Connectors and fasteners: present, correct, and fully engaged per the manual.
- Labels and markings: present and legible.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline TACBU Submittals and Documentation
Frontline TACBU Spec Sheet (PDF)Mounting, material, weight, and compatibility. Frontline TACBU Instructions (PDF)Mounting, use, inspection, and retirement. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products

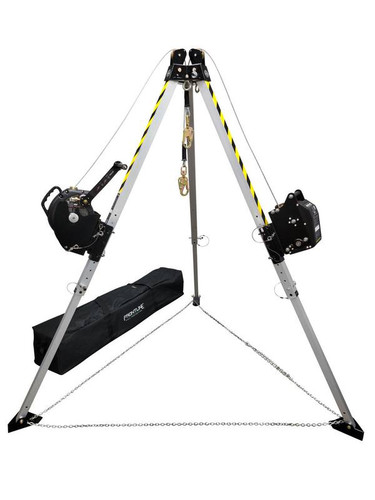

- Frontline TAN07RURP Tripod Package. A complete MEGApod tripod with winch and SRL.
