TAN10RURP MEGApod Confined Space 10 ft Aluminum Tripod with 60 ft Winch and 3-Way SRL
The Frontline TAN10RURP is a complete MEGApod confined space package: a 10 ft aluminum tripod with an aluminum cast head and telescopic legs, paired with a 60 ft winch and a 3-way retrieval SRL on a universal bracket - everything an entry team needs to lower, work, and rescue over a round opening.
The tripod's height adjusts via sliding telescopic legs (49.21 in to 88.18 in on the 7 ft head), with locking pins and non-slip shoes for a stable stance over the hole. The 60 ft winch handles material and personnel lifting while the 3-way SRL provides fall arrest and non-entry retrieval. Built to OSHA 1910.146 and ANSI Z359.
Product Video
See the MEGApod confined-space system set up over an entry: aluminum tripod, winch, and 3-way retrieval SRL working together.
Who Needs This Product
This product is a complete confined space tripod package - tripod, winch, and 3-way retrieval SRL. Entry teams use it for both working access and non-entry rescue over round openings. It requires a full body harness and a written, practiced rescue plan to form a complete program.

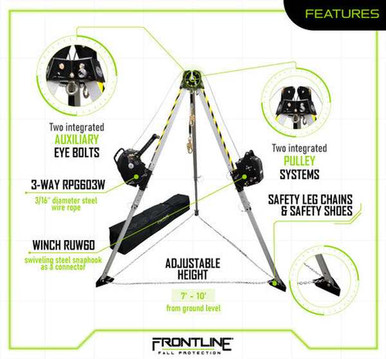

Features
10 ft aluminum tripod
Lightweight aluminum with a cast head and telescopic, lockable legs.
60 ft winch
Lift material and personnel over the opening.
3-way retrieval SRL
Arrest a fall and raise or lower the worker for non-entry rescue.
Universal SRL bracket
Mounts the retrieval block to the MEGApod leg.
Stable stance
Locking pins and non-slip shoes anchor the tripod over the hole.
Complete package
Tripod, winch, and 3-way SRL matched and shipped together.
Technical Specifications
| SKU | TAN10RURP |
|---|---|
| Type | MEGApod 10 ft aluminum tripod with 60 ft winch and 3-way retrieval SRL |
| Tripod | Aluminum, cast head, telescopic legs |
| Adjustable height | 49.21 in to 88.18 in (7 ft head) |
| Winch | 60 ft material/personnel |
| Retrieval | 3-way SRL on universal bracket |
| Feet | Non-slip shoes with locking pins |
| Standards | OSHA 1910.146; ANSI Z359; OSHA 1926 |
Confined space demands a rescue plan. This equipment is part of an entry and non-entry rescue system, not a substitute for the written, practiced rescue plan OSHA 1910.146 requires. Verify every anchorage, base, and connection per the Frontline manual before any entry, and train your team first.
Compliance Standards
OSHA 29 CFR 1910.146
Permit-required confined spaces: entry, attendant, and rescue requirements.
ANSI Z359
Fall protection and rescue system standards for the system and its components.
OSHA 29 CFR 1926
Construction confined space and fall protection requirements.
Typical Applications
How to Use the TAN10RURP
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check all load-bearing parts, moving parts, and the line before each use.
- Set up per the manual. Install and rig exactly as the Frontline manual specifies.
- Rig the system. Run the retrieval and/or fall arrest lines through the correct points.
- Connect the worker. Attach the harness per the rescue plan.
- Function-test. Test retrieval and confirm the plan with the attendant before entry.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Visual: deformation, cracks, corrosion, or damaged welds on load-bearing parts.
- Moving parts: pulleys, swivels, winch drum, and locks operate freely and lock positively.
- Line/cable: no broken wires, kinks, fraying, or corrosion; spools cleanly.
- Connectors and fasteners: present, correct, and fully engaged per the manual.
- Labels and markings: present and legible.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
