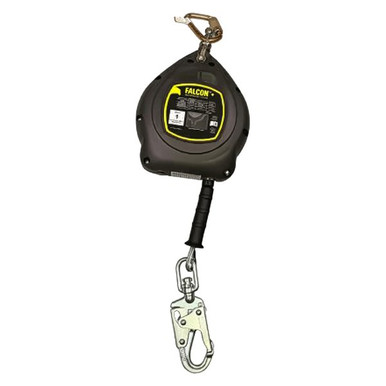

Falcon+ Self-Retracting Lifeline with Galvanized Cable
The Falcon+ is Miller's workhorse overhead cable SRL: galvanized steel cable in an impact-resistant nylon housing, stainless and aluminum internals that shrug off corrosion, and a unique side payout design that cuts drag and wear for smoother operation at every angle.
Rated to 420 lb per OSHA and meeting OSHA, ANSI, and CSA standards, with no factory recertification requirement to carry on the maintenance budget.
Who Needs This Product
The Falcon+ is the overhead SRL for plants, utilities, and construction sites that mount a unit above the work and leave it there: corrosion-resistant internals for years of service, side payout that keeps the cable running smoothly off-angle, and a maintenance program that is inspections instead of recertification invoices.
Features
Side Payout Design
The cable exits the side of the housing, reducing drag and wear and smoothing operation when the worker moves off-center.
Corrosion-Resistant Internals
Stainless steel and aluminum components extend service life in wet and corrosive environments.
Dual Swivels
Swivels at the housing and snap hook stop cable twist and ease connection to the anchorage.
Engineered Retraction
Spring tension keeps the cable taut without pulling on the worker.
No Factory Recertification
Documented competent person inspections keep the unit in service.
Impact-Resistant Housing
The nylon housing takes the knocks of a working anchor point.
Technical Specifications
| SKU | MFS-OGC1-02 family |
|---|---|
| Product | Falcon+ Self-Retracting Lifeline |
| Stocked lengths | 20, 30, 50 ft |
| Lifeline | Galvanized steel cable |
| Connectors | Steel swivel snap hook; dual swivels |
| Housing | Impact-resistant nylon; stainless and aluminum internals |
| Capacity | 420 lb per OSHA including all clothing, tools, and equipment |
| Packaging | Boxed |
| Standards | OSHA 1926.502; ANSI Z359.14; CSA |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Sizes and Ordering Information
| Length | SKU | UPC |
|---|---|---|
| 20 ft | MFS-OGC1-02/20FT | 612230303945 |
| 30 ft | MFS-OGC1-02/30FT | 612230303112 |
| 50 ft | MFS-OGC1-02/50FT | 612230303136 |
All stocked lengths are selectable from the options above. Other lengths are made by the vendor; contact us for availability.
Overhead anchor, taut line. Mount the Falcon+ above the work, keep the cable clear of edges, and check the load indicator before every use. Remove the unit from service after any arrest.
Compliance Standards
ANSI Z359.14
Certified as a self-retracting lifeline for overhead anchorage applications.
OSHA 1926.502 and 1910.140
Meets OSHA connecting device requirements for personal fall arrest systems, rated to 420 lb per OSHA.
CSA
Listed by the manufacturer as meeting CSA self-retracting device standards for Canadian jobsites.
No Factory Recertification
Kept in service through documented competent person inspections per the manual.
Typical Applications
Setup Overview
- Inspect the housing, cable, load indicator, and connectors before use.
- Mount the unit to an overhead anchorage rated for fall arrest using the top swivel connector.
- Connect the lifeline snap hook to the harness dorsal D-ring and verify the gate locks.
- Check retraction and brake lock-up with a sharp pull before committing to the system.
- Verify fall clearance below the work level and keep the lifeline clear of edges not rated for contact.
Full use instructions and clearance tables ship with the unit.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Cable: pay it out fully and check for kinks, birdcaging, broken wires, and corrosion.
- Load indicator and absorber: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction and brake: smooth retraction and a positive lock on a sharp pull.
Retirement triggers: any fall arrest event, deployed indicator or absorber, cable damage, or any failed inspection.
