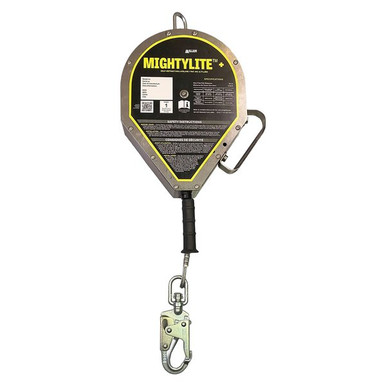

MightyLite+ Self-Retracting Lifeline with Galvanized Cable
The MightyLite+ is the long-reach member of the PLUS family: quick-activating inertia brakes that limit free fall to under 2 ft, a corrosion-resistant aluminum and stainless housing that stays light enough to carry up and mount, and stocked lengths from 20 ft all the way to 130 ft.
Rated to 420 lb per OSHA and meeting OSHA and ANSI standards, with UV-resistant scratch-proof labeling that keeps inspections legible for the life of the unit.
Who Needs This Product
The MightyLite+ covers the vertical jobs shorter SRLs cannot: towers, shafts, silos, and high bays where the worker travels far below a fixed overhead anchor. It is light enough to carry to the mount point and engineered to live there permanently, with labeling that still reads after years of sun.
Features
Long-Reach Lengths
Stocked at 20, 30, and 130 ft, with the 130 ft unit covering full-height tower and shaft work from one anchor.
Quick-Activating Inertia Brakes
The brakes engage in inches, limiting free fall to under 2 ft anywhere in the travel.
Lightweight Corrosion-Proof Housing
Aluminum and stainless construction keeps a big unit carryable and durable outdoors.
UV-Resistant Labeling
Scratch-resistant, fade-resistant graphics keep capacity and inspection data legible for years.
Permanent or Portable
Easy to carry and install overhead for the day, or mount permanently at a recurring access point.
Galvanized Steel Cable
The cable takes the abrasion of long vertical runs against structure.
Technical Specifications
| SKU | MML-OGC1-02 family |
|---|---|
| Product | MightyLite+ Self-Retracting Lifeline |
| Stocked lengths | 20, 30, 130 ft |
| Lifeline | Galvanized steel cable |
| Connectors | Steel carabiner; swivel load-indicating snap hook |
| Housing | Corrosion-resistant aluminum and stainless steel |
| Free fall | Limited to less than 2 ft by quick-activating inertia brakes |
| Capacity | 420 lb per OSHA including all clothing, tools, and equipment |
| Packaging | Boxed |
| Standards | OSHA 1926.502; ANSI Z359.14 |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Sizes and Ordering Information
| Length | SKU | UPC |
|---|---|---|
| 20 ft | MML-OGC1-02/20FT | 612230301552 |
| 30 ft | MML-OGC1-02/30FT | 612230301569 |
| 130 ft | MML-OGC1-02/130FT | 612230301590 |
All stocked lengths are selectable from the options above. Other lengths are made by the vendor; contact us for availability.
Long cable, long swing. The farther the worker moves from vertical under the anchor, the bigger the swing fall. Keep travel inside the working cone in the manual and check the load-indicating hook before every use.
Compliance Standards
ANSI Z359.14
Certified as a self-retracting lifeline for overhead anchorage applications.
OSHA 1926.502 and 1910.140
Meets OSHA connecting device requirements for personal fall arrest systems, rated to 420 lb per OSHA.
Load-Indicating Hook
The swivel snap hook carries a built-in load indicator that flags an arrested unit at a glance.
Inertia Brake Design
Quick-activating brakes limit free fall to under 2 ft at any point in the travel.
Typical Applications
Setup Overview
- Inspect the housing, cable, load indicator, and connectors before use.
- Mount the unit to an overhead anchorage rated for fall arrest using the top swivel connector.
- Connect the lifeline snap hook to the harness dorsal D-ring and verify the gate locks.
- Check retraction and brake lock-up with a sharp pull before committing to the system.
- Verify fall clearance below the work level and keep the lifeline clear of edges not rated for contact.
Full use instructions and clearance tables ship with the unit.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Cable: pay it out fully and check for kinks, birdcaging, broken wires, and corrosion.
- Load indicator and absorber: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction and brake: smooth retraction and a positive lock on a sharp pull.
Retirement triggers: any fall arrest event, deployed indicator or absorber, cable damage, or any failed inspection.
