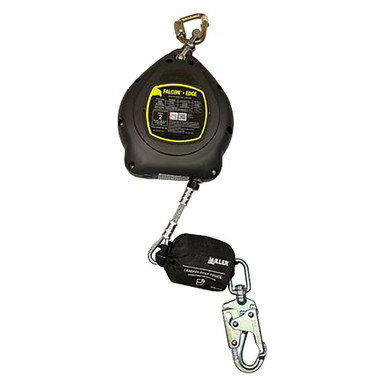

Falcon+ Edge Self-Retracting Device with Galvanized Cable
The Falcon+ Edge is the full-size leading edge SRL: galvanized steel cable rated for sharp edges with a radius as small as 0.005 in, an integrated ballistic nylon shock absorber pack at the worker end, and certification for anchoring anywhere from overhead down to foot level.
Rated to 420 lb per OSHA and meeting OSHA, ANSI, and CSA standards, the Falcon+ Edge covers horizontal, vertical, overhead, and foot-level work from one unit. Dual swivels at the housing and snap hook keep the cable running true.
Who Needs This Product
The Falcon+ Edge is for crews whose anchor is behind them and whose edge is sharp: deck installation, precast, formwork, and structural steel where the cable will load over an edge in a fall. The engineered retraction tension does not drag on the worker, and the absorber pack manages the higher forces of foot-level arrest.
Features
Sharp Edge Rating
Tested for leading edge arrest over an edge radius as small as 0.005 in, the load case that destroys standard lifelines.
Foot-Level to Overhead
One unit covers every anchor height on the job, from overhead beams down to anchors at the walking surface.
Ballistic Nylon Absorber
The integrated shock absorber pack at the worker end manages arrest forces in edge and foot-level falls.
Engineered Retraction
Spring tension is tuned not to pull or drag on the worker, cutting fatigue over a full shift.
Dual Swivels
Swivels at the housing top and snap hook stop cable twist and give leverage when connecting to the anchor.
Galvanized Steel Cable
The cable takes abrasion and edge contact that would saw through webbing devices.
Technical Specifications
| SKU | MFS-LEP1-02 family |
|---|---|
| Product | Falcon+ Edge Self-Retracting Device |
| Stocked lengths | 20, 30, 50 ft |
| Lifeline | Galvanized steel cable |
| Edge rating | Sharp leading edge, radius 0.005 in or larger |
| Absorber | Integrated ballistic nylon shock absorber pack |
| Connectors | Steel swivel snap hook; dual swivels |
| Capacity | 420 lb per OSHA including all clothing, tools, and equipment |
| Packaging | Boxed |
| Standards | OSHA 1926.502; ANSI Z359.14; CSA |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Sizes and Ordering Information
| Length | SKU | UPC |
|---|---|---|
| 20 ft | MFS-LEP1-02/20FT | 612230303181 |
| 30 ft | MFS-LEP1-02/30FT | 612230303174 |
| 50 ft | MFS-LEP1-02/50FT | 612230303167 |
All stocked lengths are selectable from the options above. Other lengths are made by the vendor; contact us for availability.
Foot-level tie-off demands more clearance. Edge and foot-level arrest produce longer free fall and deeper deceleration than overhead tie-off. Run the clearance numbers from the spec sheet for your anchor height before the first connection.
Compliance Standards
ANSI Z359.14
Certified as a self-retracting device for leading edge use, covering foot-level anchorage and arrest over a sharp edge.
OSHA 1926.502 and 1910.140
Meets OSHA connecting device requirements for personal fall arrest systems, rated to 420 lb per OSHA.
CSA
Listed by the manufacturer as meeting CSA self-retracting device standards for Canadian jobsites.
Sharp Edge Testing
Rated for edges with a radius of 0.005 in (0.13 mm) or larger, the sharpest edge classification in common use.
Typical Applications
Setup Overview
- Inspect the housing, cable, load indicator, and connectors before use.
- Mount the unit to an overhead anchorage rated for fall arrest using the top swivel connector.
- Connect the lifeline snap hook to the harness dorsal D-ring and verify the gate locks.
- Check retraction and brake lock-up with a sharp pull before committing to the system.
- Verify fall clearance below the work level and keep the lifeline clear of edges not rated for contact.
Full use instructions and clearance tables ship with the unit.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Cable: pay it out fully and check for kinks, birdcaging, broken wires, and corrosion.
- Load indicator and absorber: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction and brake: smooth retraction and a positive lock on a sharp pull.
Retirement triggers: any fall arrest event, deployed indicator or absorber, cable damage, or any failed inspection.
