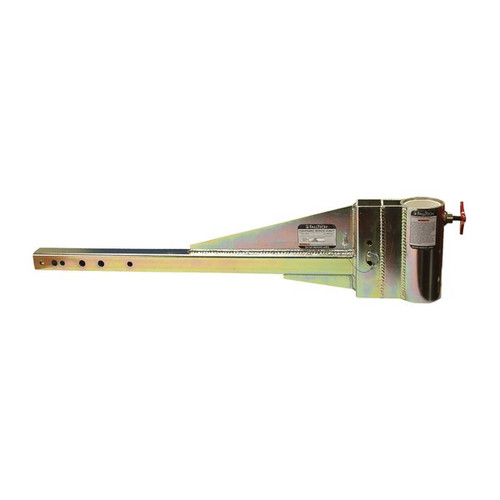

FallTech Replacement Sleeve for Vehicle Hitch-Mount Bases
Durable plated carbon steel construction with PVC sleeve insert. Includes hand-screw adjustment knob and 3" detent pin for height adjustment.
Compatible with 29" and 44" Vehicle Hitch-mount Bases.
Who Needs This Product
Mobile crews that service many sites use vehicle hitch-mount davit components to turn a standard truck receiver into a confined space anchor. The vehicle provides the ballast and the hitch provides the mounting point, which eliminates hauling a separate base and speeds up multi-site routes.
Features
Durable plated carbon steel construction
Durable plated carbon steel construction with PVC sleeve insert.
Includes hand-screw adjustment knob and
Includes hand-screw adjustment knob and 3" detent pin for height adjustment.
Compatible
Compatible with 29" and 44" Vehicle Hitch-mount Bases.
The vehicle is the ballast. Use a Class 3 minimum hitch, keep the vehicle parked with the brake set and wheels chocked, and control the keys while the system is occupied.
Compliance Standards
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Position the vehicle. Back in so the davit reach places the anchor over the portal, set the parking brake, and chock the wheels.
- Mount the component. Insert it into the Class 3 minimum 2 in square receiver and pin it.
- Assemble and verify. Build the mast and arm, mount your device, and confirm stability before use.
- Keep the vehicle parked. The vehicle stays stationary with keys controlled while the system is occupied.
Inspection and Retirement
Inspect the components before each use. A competent person must inspect them at least annually.
- Receiver tube: cracks, deformation, and corrosion.
- Pins: correct size, full engagement, and no wear grooves.
- Welds: no cracking or rust jacking.
- Vehicle hitch: rated Class 3 or higher and in good condition.
Retirement triggers: any fall load on the system, weld cracks, or receiver deformation.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Replacement Hitch Bar |
|---|---|
| SKU | 65135VH |
| Hitch Bar | Plated carbon steel |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 65135VH Submittals and Documentation
65135VH Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 65135VH Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Confined Space System
- FallTech 3pc Vehicle Hitch-Mount Base for Offset Davit Arms. Turns a truck hitch into a davit base.
- FallTech Offset Davit Arm with Device Receiver Bracket. The adjustable-reach davit arm.

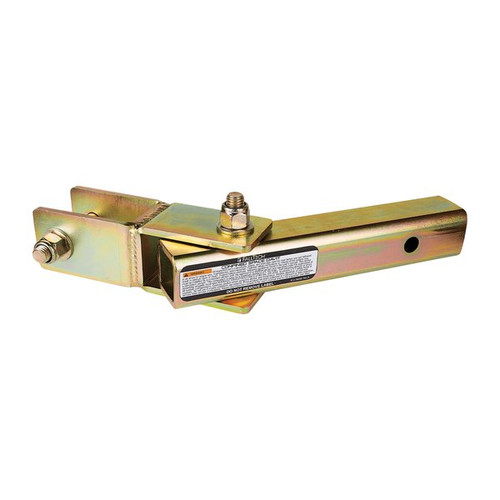

- FallTech Vehicle Hitch Mount Universal Joint Adapter. Levels the davit on sloped parking.
Specifying Confined Space Equipment for Your Crew?
The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
