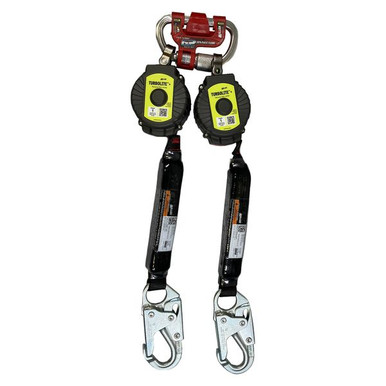

TurboLite+ Twin Personal Fall Limiter, Steel locking snap hooks
The TurboLite+ twin PFL brings the PLUS family platform to 100 percent tie-off work: two independent retracting legs on a G2 dorsal mount, so one leg is always connected while the other moves.
Certified to ANSI Z359.14-2021 Class 1 and rated to 420 lb per OSHA, with no annual factory recertification required. This configuration carries a steel locking snap hooks on the lifeline end.
Who Needs This Product
Twin TurboLite+ units are the answer to 100 percent tie-off policies: two independent legs on one dorsal mount, so the worker is connected through every transfer. This MTL-OHW2-21 configuration (twin legs with steel snap hooks) keeps arrest distances in inches, with no annual factory recertification.
Features
G2 Twin Connector
Both housings mount at the dorsal D-ring on the G2 interface, centered and oriented for clean leg management.
Steel locking snap hooks
The lifeline end carries a steel locking snap hooks, matched to the anchors your crew actually uses.
Quick-Activating Brake
The stainless steel braking mechanism engages immediately, arresting the fall in inches and keeping arrest forces low.
Integral Swivel
The built-in swivel keeps the lifeline from twisting as the worker moves.
Visual Load Indicator
A deployed indicator means the unit has arrested a fall and comes out of service, visible in a two-second check.
Technical Specifications
| SKU | MTL-OHW2-21 family |
|---|---|
| Product | TurboLite+ Twin Personal Fall Limiter |
| Working length | 6 ft and 11 ft |
| Lifeline connector | Steel locking snap hooks |
| Harness mount | G2 twin connector at dorsal D-ring |
| Lifeline | Abrasion-resistant high-strength webbing |
| Housing | High-impact nylon with integral swivel |
| Capacity | 420 lb per OSHA including all clothing, tools, and equipment |
| Recertification | None required; competent person inspection per manual |
| Packaging | Boxed |
| Country of origin | Mexico |
| Standards | ANSI Z359.14-2021 Class 1; OSHA 1926.502; OSHA 1910.140; CSA |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Sizes and Ordering Information
| Length | SKU | UPC |
|---|---|---|
| 6 ft | MTL-OHW2-21/6FT | 612230300784 |
| 11 ft | MTL-OHW2-21/11FT | 612230302399 |
Both stocked lengths are selectable from the options above.
Anchor at or above the D-ring. This is a Class 1 device: free fall is limited to 2 ft, and foot-level tie-off is not permitted. Check the load indicator before every use and remove the unit from service after any arrest.
Compliance Standards
ANSI Z359.14-2021 Class 1
Certified as a Class 1 self-retracting device: anchor at or above the dorsal D-ring, maximum 2 ft free fall. Class 1 devices are not rated for foot-level tie-off.
OSHA 1926.502 and 1910.140
Meets OSHA connecting device requirements for personal fall arrest systems in construction and general industry, rated to 420 lb per OSHA.
CSA Z259.2.2
Listed by the manufacturer as meeting CSA self-retracting device standards for Canadian jobsites.
No Annual Recertification
The PLUS family requires no factory recertification; documented competent person inspections per the manual keep the unit in service.
Typical Applications
Setup Overview
- Inspect both housings, both lifelines, load indicators, and all connectors before use.
- Mount the G2 twin connector to the harness dorsal D-ring and verify it seats correctly.
- Connect one leg to the first anchor and verify the gate locks before moving.
- Connect the second leg to the next anchor before releasing the first when transferring.
- Keep the unused leg parked on the harness keeper, never dangling, and verify clearance.
Full use instructions ship with the unit; the specification sheet is linked in the documentation section below.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Lifeline: pay each leg out fully and check for cuts, frays, burns, and abrasion.
- Load indicator: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction: each lifeline retracts smoothly under light tension with no hesitation.
Retirement triggers: any fall arrest event, deployed load indicator, failed retraction or brake check, or any failed inspection.
