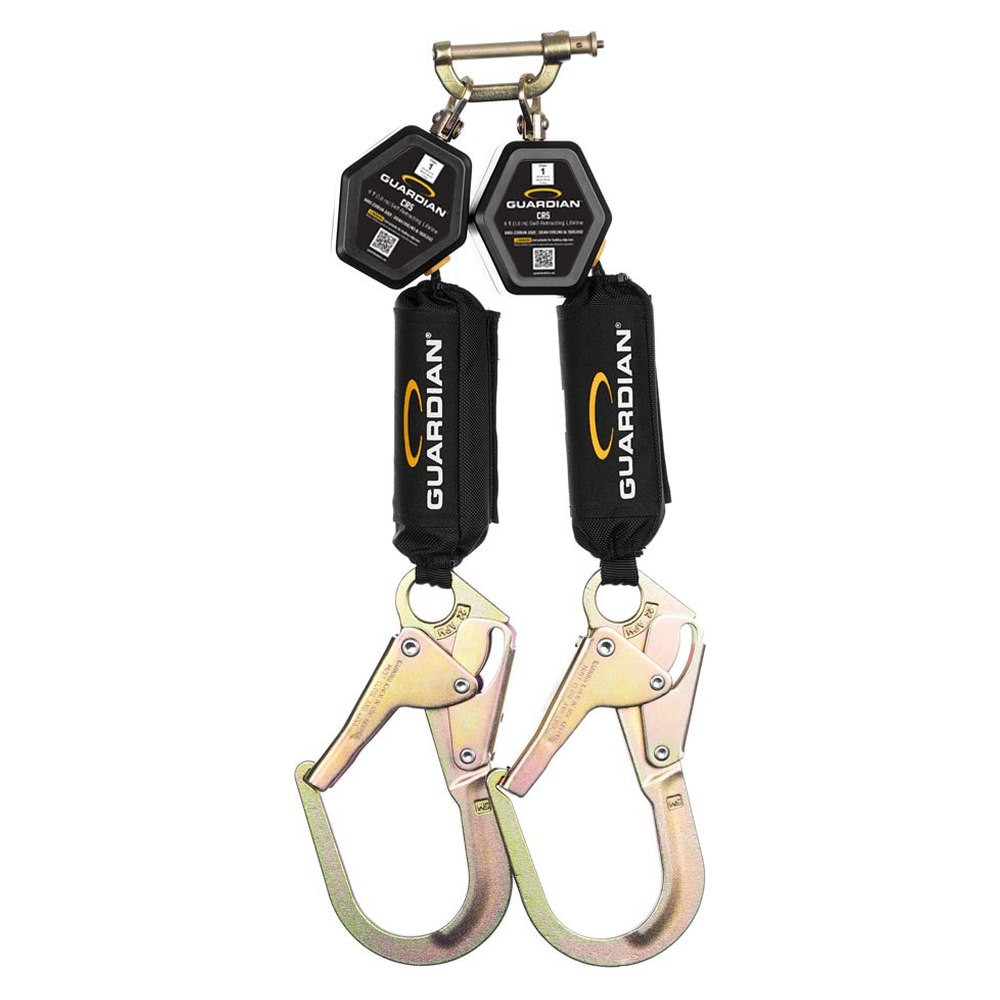

CR5 Class 1 Dual Leg Web SRL-P, 6 ft, 100 Percent Tie-Off
The dual leg CR5 delivers 100 percent tie-off with retractable arrest distances: two independent 6 ft web SRLs off a single dorsal mount, so the worker connects ahead before releasing behind, and either leg arrests in inches. Stocked in steel rebar hooks (1400204), aluminum snap hooks (1400206), and aluminum rebar hooks (1400207).
Certified to ANSI Z359.14-2021 Class 1 and compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
Twin retractables are the modern steel-walking standard: lanyard-style transitions with SRL-style clearance. Aluminum hook versions cut carried weight where every pound on the back counts; steel rebar hooks take the daily beating of direct structure connection. Anchor both legs at or above the D-ring per the Class 1 rating.
Features
6' web lifeline
6' web lifeline
Swivel top connection point
Swivels 360 degrees to ensure the device remains in the best orientation during use and also helps prevent lifeline snagging or tangling
Impact modified thermoplastic housing
Super lightweight & durable for long-lasting use in the toughest applications
Digitally enabled labels
QR code for quick and easy access to up-to-date safety and product information
Guardian shock pack cover
Helps increase product longevity and protect safety labeling
Integrated fall clearance charts
Fall Clearance charts integrated into shock pack cover for easy access to clearance charts anytime, anywhere
Options in This Family
| SKU | Description |
|---|---|
| 1400204 | Guardian CR5 Class 1 Dual Leg Web SRL 6 ft, Steel rebar hooks |
| 1400206 | Guardian CR5 Class 1 Dual Leg Web SRL 6 ft, Aluminum snap hooks |
| 1400207 | Guardian CR5 Class 1 Dual Leg Web SRL 6 ft, Aluminum rebar hooks |
Technical Specifications
| SKU | 1400204 / 1400206 / 1400207 |
|---|---|
| Worker capacity | 100-420 lbs. including all clothing, tools, and equipment |
| Product weight | 0 lbs |
| Dimensions | 14 in L x 11 in W x 4 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
