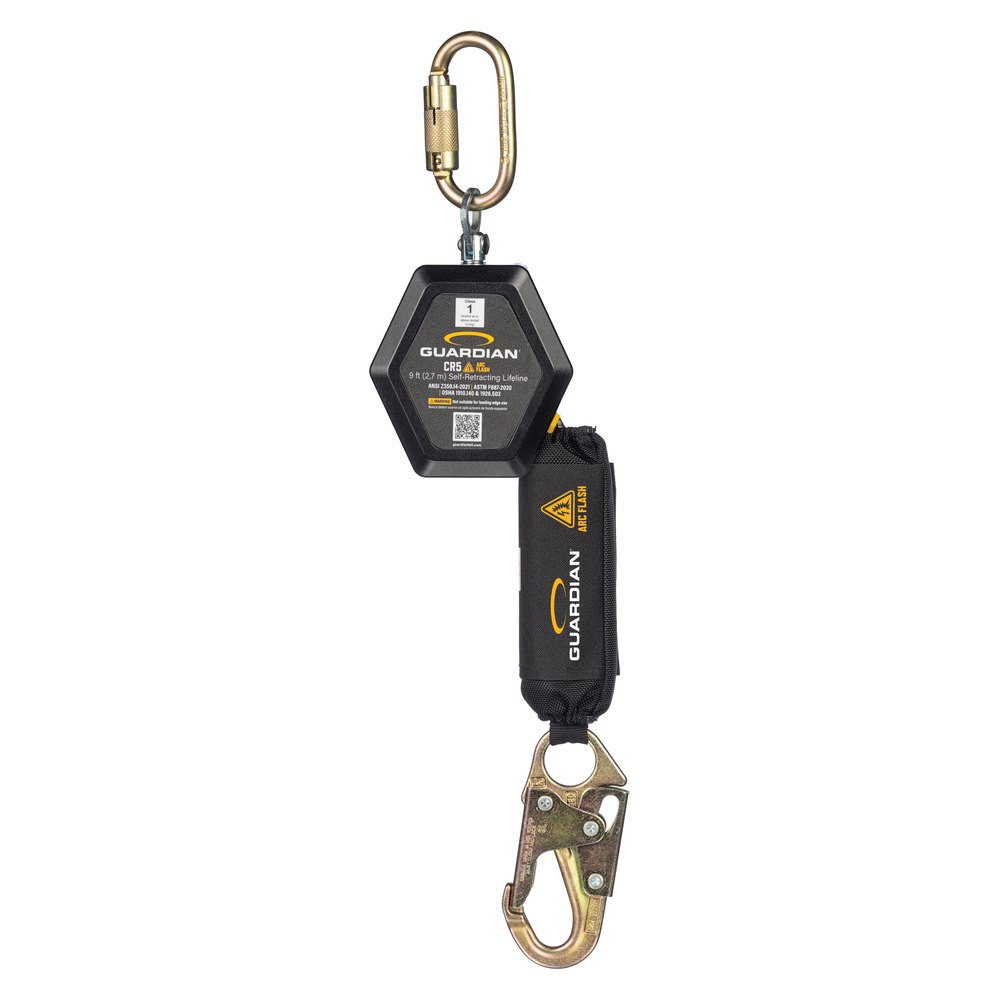

CR5 Arc Flash Class 1 Single Leg SRL, 9 ft
The Guardian CR5 Arc Flash builds the personal SRL for energized environments: 9 ft of arc-rated lifeline and hardware engineered to survive arc exposure per the applicable arc flash test methods, with a snap hook connection and the same inches-not-feet arrest of the CR5 platform.
Certified to ANSI Z359.14-2021 Class 1 with arc flash provisions per the manual, compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
Utility and electrical workers cannot carry standard SRLs into arc-rated zones; melted webbing in an arc event is its own failure mode. The Arc Flash CR5 keeps the retractable clearance advantage inside the arc-rated equipment envelope, paired with an arc-rated harness like the utility crews already wear.
Features
Premium heat and burn resistant Kevlar® and Nome
Premium heat and burn resistant Kevlar® and Nomex® shock pack cover and webbing to ensure proper function and structural integrity against an arc flash event
Swivel top connection point
Swivels 360 degrees to ensure the device remains in the best orientation during use and also helps prevent lifeline snagging or tangling
Impact modified thermoplastic housing
Super lightweight & durable for long-lasting use in the toughest applications
Digitally enabled labels
QR code for quick and easy access to up-to-date safety and product information
Guardian shock pack cover
Helps increase product longevity and protect safety labeling
Reinforced webbing guide
Added strength and reduces webbing friction
Technical Specifications
| SKU | 4200030 |
|---|---|
| Worker capacity | 100-420 lbs. including all clothing, tools, and equipment |
| Product weight | 4.41 lbs |
| Dimensions | 8.66 in L x 7.87 in W x 3.94 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502, ASTM F887 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
