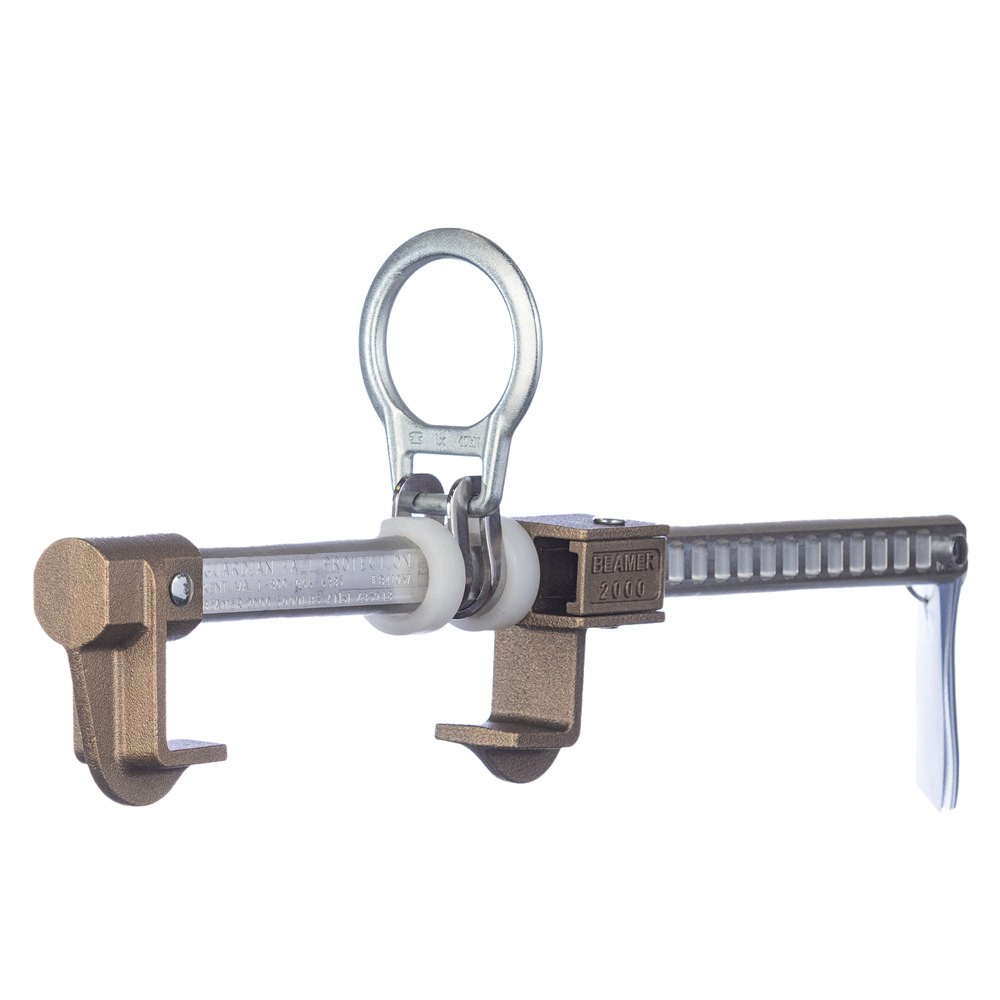

Beamer 2000 Pivoting Beam Anchor, 3.5 to 14 in Flanges
The Guardian 00101 Beamer 2000 is the classic steel-erection beam anchor: a pivoting anchorage connector that clamps flanges from 3.5 to 14 in wide and follows the worker as the connection angle changes, keeping the load aligned instead of side-loading the hook. Adjustment is fast and tool-free, and the anchor moves along the beam with the work.
Rated for one worker at 130 to 310 lbs including tools, it meets OSHA 1926.502 and 1910.140 as the anchorage connector in a personal fall arrest system, with the full documentation linked below.
Who Needs This Product
The Beamer 2000 belongs on every steel crew that ties off to structural flanges: it installs in seconds at the point of work, pivots with the worker to prevent side loading, and moves down the beam as the work advances. Pair it with an SRL for taut-line protection or a shock absorbing lanyard where clearance allows. For thicker flanges and heavy structural sections, step up to the Beamer 2003 or the BBC large beam clamps.
Features
Easy Adjustment
Oversized locking lever offers positive grip and precise adjustment even with gloved hands
Bronze-Manganese Hooks
Long-wearing hooks slide easily along beam and resist slag or other contaminants
Fits Wide Range of Beams
Two models to fit beams widths from 3 ½” to 14” with flanges up to 1 ¼” thick
Nylon Bushings
Enables smooth movement of D-ring along main bar beam and acts as an impact indicator in the event of a fall
Pivoting D-ring
Pivots as user works to keep D-ring in optimal orientation
Precision Engineered Aluminum Bar
Lightweight and weather resistant construction resists corrosion and repels weld splatter or other contaminants
Technical Specifications
| SKU | 00101 |
|---|---|
| Worker capacity | 130-420 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs |
| Materials | Aluminum |
| Product weight | 4 lbs |
| Dimensions | 20 in L x 6 in W x 6 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.18-2017
This product is compliant with ANSI Z359.18-2017 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
