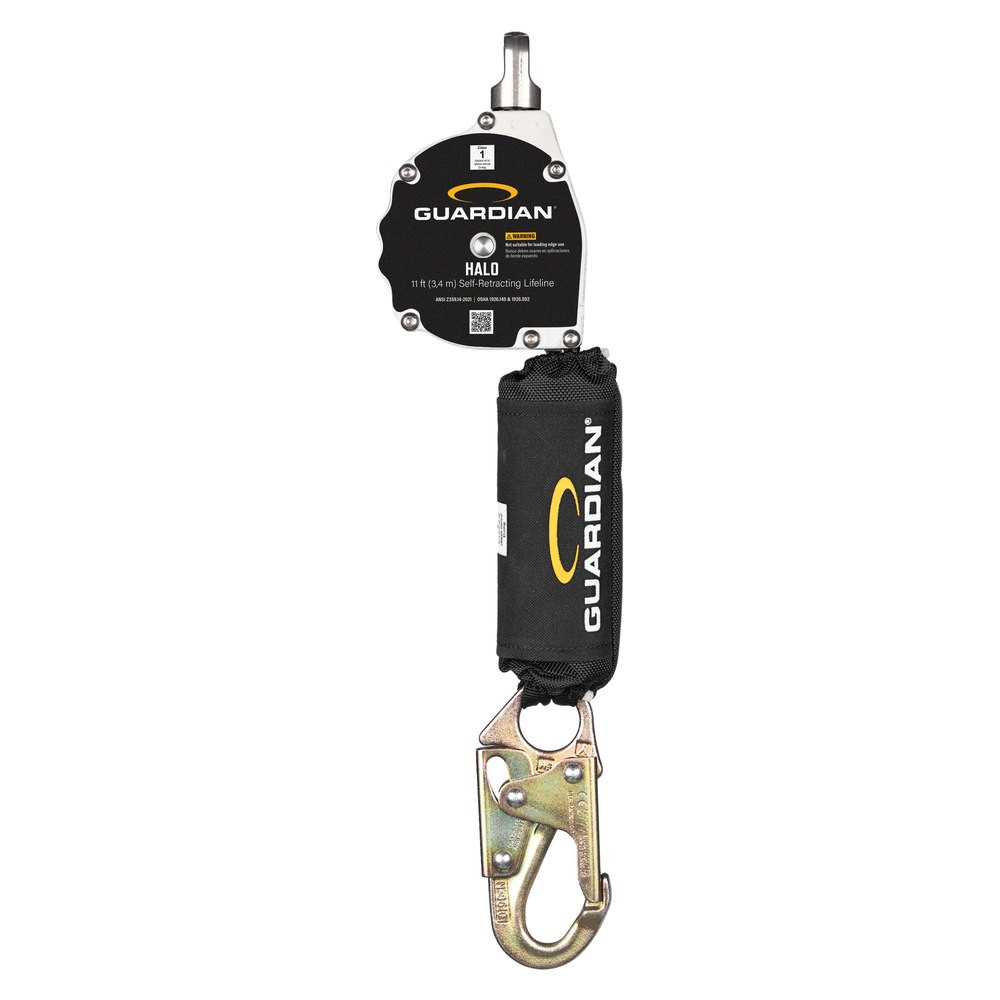

Halo 11 ft Class 1 Web SRL with Steel Snap Hook
The Guardian 10900 Halo is an 11 ft Class 1 web self-retracting lifeline built to the latest ANSI Z359.14-2021 overhead standard: a lightweight aluminum housing, a 45 percent larger shock pack with a reinforced cover, and a 360 degree swivel top that keeps the lifeline oriented and tangle-free as the worker moves.
The web line pays out and retracts with the worker, arresting falls in inches instead of feet, and the single steel snap hook connects to the dorsal D-ring. A QR code on the label opens manuals, compliance documents, and fall clearance charts right from the field. Capacity is 100 to 420 lbs.
Who Needs This Product
An SRL replaces the lanyard when clearance is tight or mobility matters: the line stays taut as the worker moves, so a fall is arrested in inches rather than the several feet a deployed lanyard needs. The Halo is a Class 1 device for overhead anchorage, connecting between an anchor at or above the dorsal D-ring and the harness. Its 11 ft working length suits roof anchors, beam anchors, and overhead structure across residential and commercial work. Where the anchor must sit at foot level or a leading edge is in play, a Class 2 leading edge SRL is required instead.
Features
ANSI Z359.14-2021 Class 1
Meets the latest overhead SRL requirements, tested in an ISO 17025 accredited laboratory.
Lightweight aluminum housing
Cuts carried weight to 5.14 lbs without giving up housing strength.
45 percent larger shock pack
Reinforced cover and increased absorber capacity extend service life and protection.
360 degree swivel top
The top connection rotates freely, preventing lifeline twist and snagging as the worker moves.
Web lifeline with steel snap hook
Durable webbing line with a locking steel snap hook for the dorsal D-ring.
Digitally enabled labeling
A QR code opens manuals, compliance documents, and fall clearance charts on any phone.
Technical Specifications
| SKU | 10900 |
|---|---|
| Product | Halo Web SRL, single leg |
| Working length | 11 ft |
| Class | ANSI Z359.14-2021 Class 1 (overhead) |
| Worker capacity | 100-420 lbs including all clothing, tools, and equipment |
| Housing | Aluminum |
| Lifeline | Web with locking steel snap hook |
| Connection | 360 degree swivel top |
| Weight | 5.14 lbs |
| Dimensions | 9 in x 8.5 in x 3 in |
| Standards | ANSI Z359.14-2021 Class 1; OSHA 1926.502; OSHA 1910.140 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class 1 means overhead anchorage. Anchor the Halo at or above the dorsal D-ring per the manual; it is not rated for foot-level tie-off or leading edge applications. Check the fall clearance chart (printed on the label and behind the QR code) for your anchor height before work begins, and minimize swing fall by working in line with the anchor.
Compliance Standards
ANSI Z359.14-2021 Class 1
Certified to the current overhead SRL standard with its more demanding dynamic and static test regimen.
OSHA 1926.502
Meets construction personal fall arrest system requirements.
OSHA 1910.140
Meets general industry personal fall protection system requirements.
ISO 17025 lab tested
Tested in an ISO 17025 accredited laboratory; the test report is available in the documentation section below.
Typical Applications
Use Overview
Use must follow the Guardian Halo instruction manual (85687). The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, shock pack indicator, swivel, and hook before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor overhead. Connect the swivel top to a compliant anchor at or above the dorsal D-ring height.
- Connect the worker. Attach the steel snap hook to the dorsal D-ring and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label or behind the QR code for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, abrasion, burns, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Shock pack: any deployment indicator showing, or a torn reinforced cover.
- Housing and swivel: cracks, deformation, corrosion, or a swivel that binds.
- Hook: cracks, deformation, or a gate that does not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
