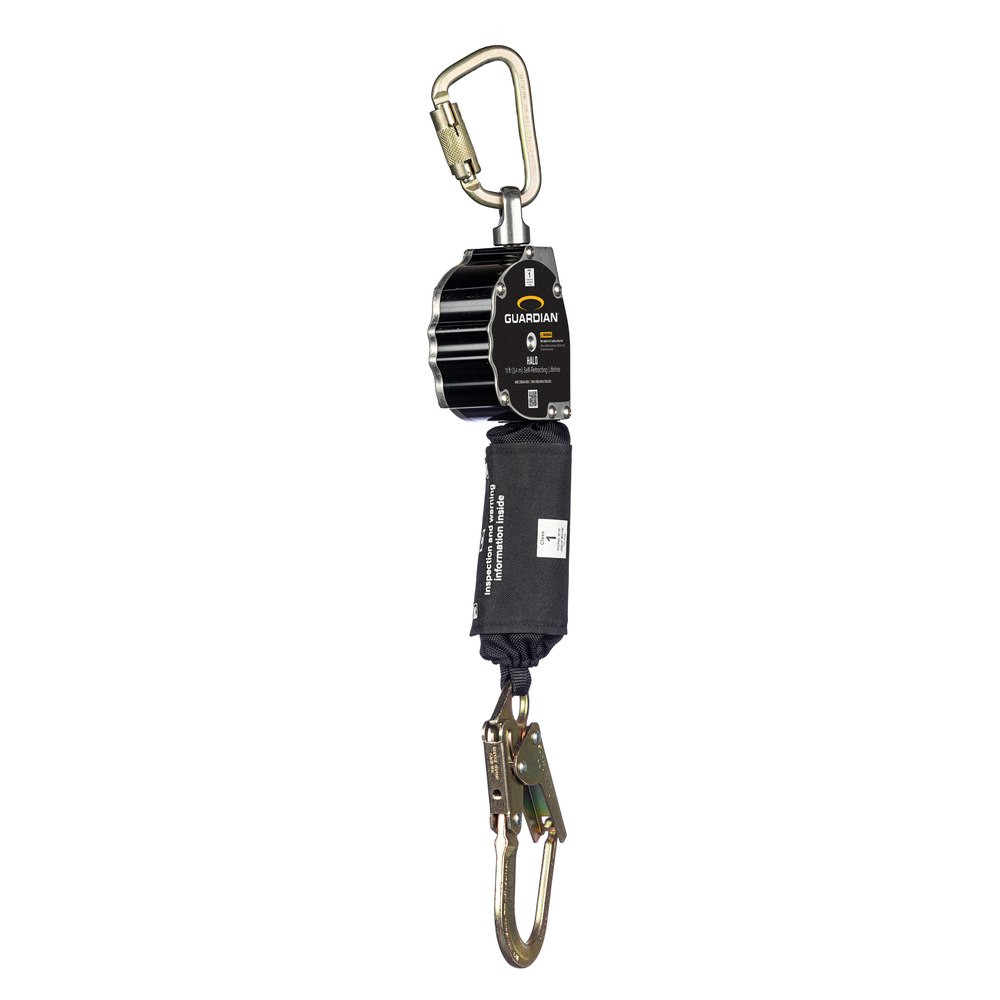

Halo 11 ft Web SRL with Carabiner and Swivel Top
The Guardian 10901 is the carabiner-top twin of the Halo 10900: the same 11 ft Class 1 web SRL with the aluminum housing and 45 percent larger shock pack, topped with a carabiner and swivel for crews that hang the device from straps and overhead rings rather than clipping a snap hook.
Certified to ANSI Z359.14-2021 Class 1 and compliant with OSHA 1926.502 and 1910.140 at 100 to 420 lbs.
Who Needs This Product
The top connection is the whole choice here: the carabiner gates wider for anchor straps and overhead rings, and the swivel keeps the housing from winding as the worker moves. Everything else matches the 10900, including the QR-coded label that opens the manual and clearance charts in the field.
Features
ANSI Z359.14-2021 certified
Fully compliant with updated Overhead Class 1 safety standards for dependable fall protection
Lightweight aluminum housing
Reduces fatigue while providing enhanced durability for tough job sites
Reinforced shock pack system
45% larger design and improved cover enhance protection and field longevity
360° swivel top connection
Maintains optimal lifeline orientation and reduces twisting or snagging during operation
Digital access integration
QR code links directly to manuals, declarations, and fall clearance charts for real-time reference in the field
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Technical Specifications
| SKU | 10901 |
|---|---|
| Worker capacity | 100-420 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | Aluminum, Stainless Steel |
| Product weight | 5.18 lbs |
| Dimensions | 9.2 in L x 8.3 in W x 3 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 10901 Halo 11 ft Web SRL, Carabiner and Swivel Submittals and Documentation
Guardian Halo Webbing Srl Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian Halo Webbing Srl Tds (PDF)Dimensions, materials, capacities, and the full compliance summary.Guardian Halo Webbing Srl Test Report (PDF)ISO 17025 accredited laboratory test results.Guardian Halo Webbing Srl Doc Of Conformity (PDF)Manufacturer declaration of conformity.Guardian 11058 Inspection Form (PDF)Printable competent-person inspection checklist.Compatible and Related Products
- Guardian 10900 Halo 11 ft Web SRL. The compact web SRL for overhead anchorage.
- Guardian 00101 Beamer 2000 Beam Anchor. Pivoting beam anchorage for these SRLs.
- Guardian 10733 Suspension Trauma Strap 4-Pack. Post-fall relief for every harness on the crew.
Choosing the Right SRL Class and Length?
Anchor height, edge exposure, and clearance decide the device. Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Guardian Fall Protection Manufacturer Warranty
Guardian warrants to the purchaser that all products are free from defects in material, workmanship, and design (when the design is Guardian's responsibility). This warranty does not cover conditions resulting from normal wear and tear, neglect, abuse, accident, or otherwise. Guardian's obligations under this warranty apply for the lifetime of the product and are limited to the replacement of the product only.
This warranty is not transferable and does not apply to product that is resold after having been put into service. The warranty is void if the product is changed or altered in any way, or if the product is used in a manner other than for which it is intended. No other person, firm, or entity is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian products. There are no implied warranties of merchantability or fitness for a particular purpose.
Source: Guardian Standard Terms and Conditions of Sale, Doc. 102 v3.0. Contact Guardian customer service at +1 (800) 466-6385 or through guardianfall.com for warranty claims and product support.
