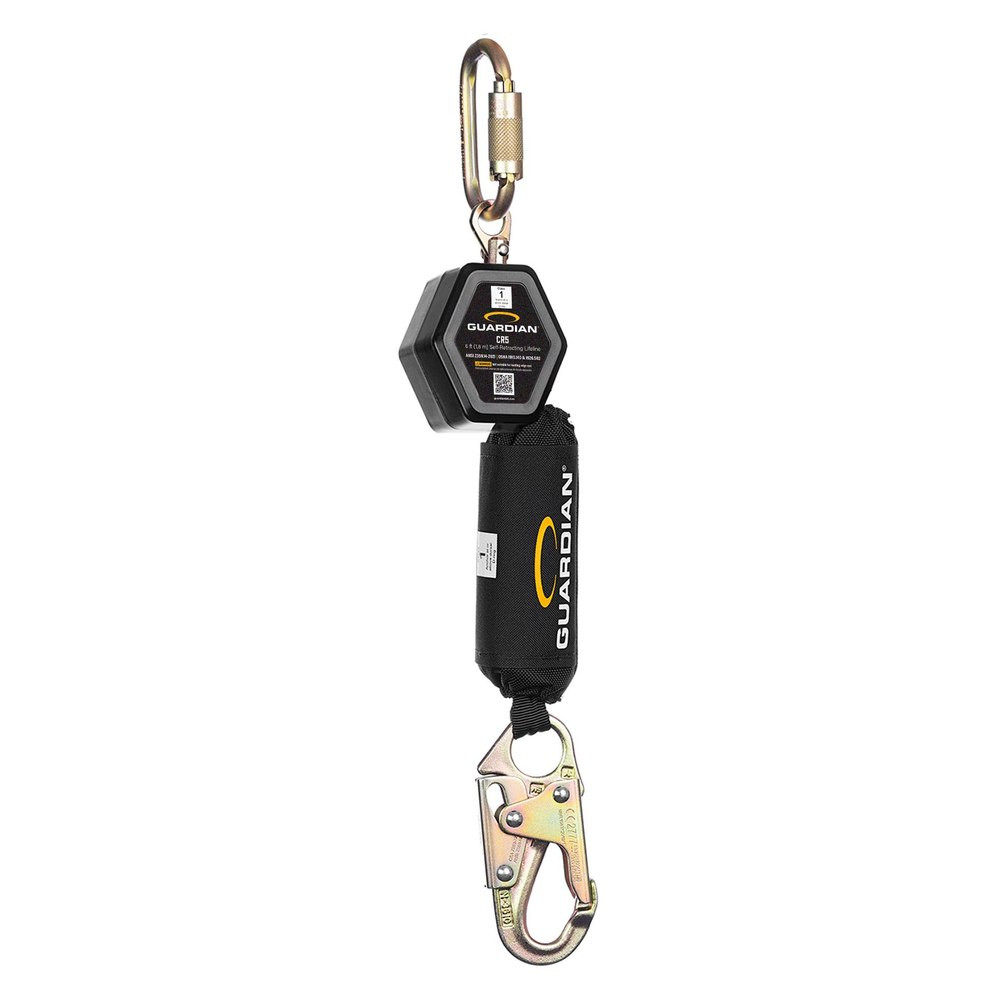

CR5 Class 1 Single Leg Web SRL-P, 6 ft
The Guardian CR5 is the personal SRL that replaces the lanyard one for one: a 6 ft single leg web retractable that mounts at the dorsal D-ring, keeps the line taut as the worker moves, and arrests in inches instead of the feet a deployed lanyard consumes. Choose the steel snap hook (1400198) or the tie-back rated hook (1400200) that wraps structure and connects to its own line.
Certified to ANSI Z359.14-2021 Class 1 and compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
Personal SRLs won the lanyard argument on clearance: same 6 ft reach, a fraction of the fall distance. The CR5 rides on the harness like a lanyard, and the tie-back version eliminates the anchor strap on compatible structure. Class 1 rating keeps anchorage at or above the D-ring.
Features
Heavy-duty 6 ft web lifeline
Class 1 personal SRL built for superior strength and reliability during demanding at-height applications
Lightweight impact-resistant housing
Constructed from impact-modified thermoplastic for exceptional durability and portability on the job
Smooth, tangle-free movement
Swivel top connection rotates 360° to maintain optimal lifeline orientation and reduce twisting or snagging
Digitally enabled safety access
Integrated QR code provides instant access to product specifications and inspection information, with built-in fall clearance charts for quick on-site reference
ANSI and OSHA-compliant versatility
Approved for both fall arrest and travel restraint applications, offering safe and efficient performance across multiple jobsite conditions
Reinforced webbing guide
Added strength and reduces webbing friction
Options in This Family
| SKU | Description |
|---|---|
| 1400198 | Guardian CR5 Class 1 Single Leg Web SRL 6 ft, 6 ft web, steel snap hook |
| 1400200 | Guardian CR5 Class 1 Single Leg Web SRL 6 ft, 6 ft web, steel tie-back hook |
Technical Specifications
| SKU | 1400198 / 1400200 |
|---|---|
| Worker capacity | 100-420 lbs. including all clothing, tools, and equipment |
| Product weight | 3.26 lbs |
| Dimensions | 8.66 in L x 7.87 in W x 3.94 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
