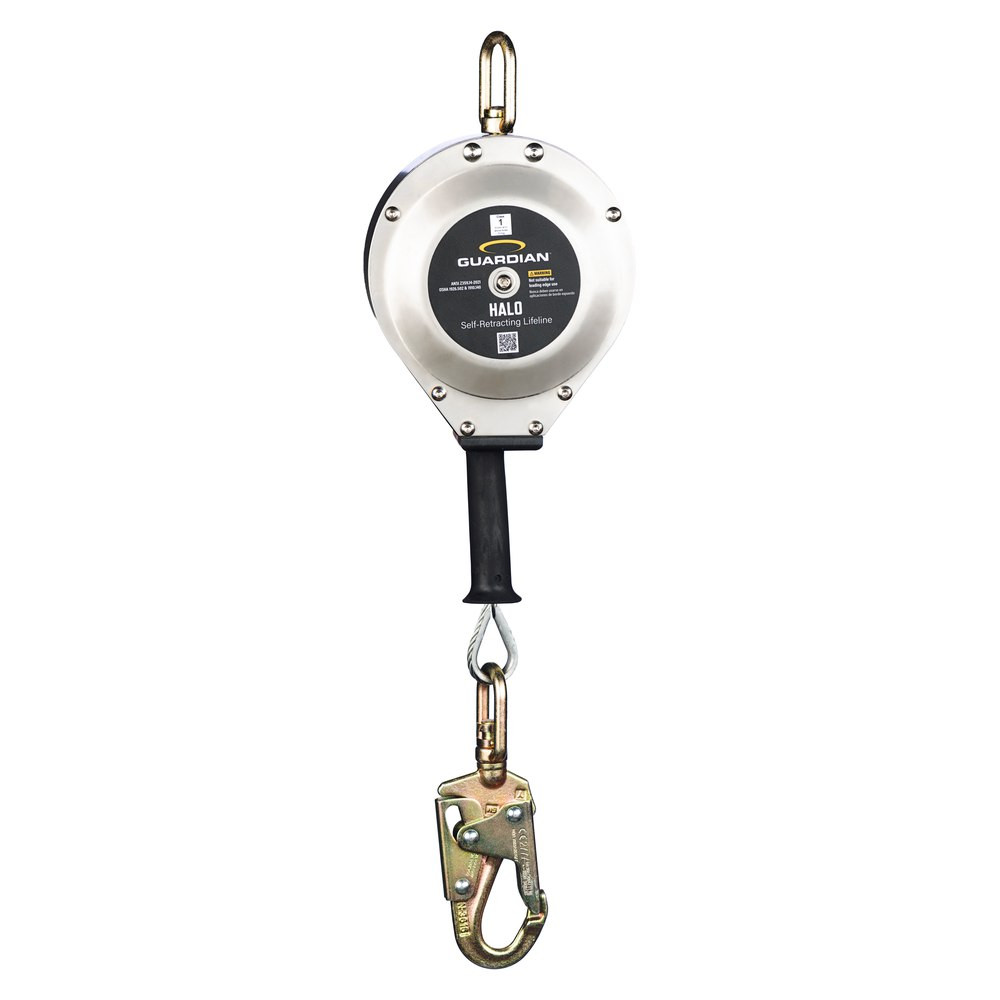

Halo Galvanized Cable SRL, 20 to 65 ft, Swivel Top
The Guardian Halo cable line scales the swivel-top Halo platform to galvanized wire rope: 20, 30, 50, and 65 ft working lengths with hook and carabiner top connections, for overhead mounting above work zones of every size.
Certified to ANSI Z359.14-2021 Class 1 and compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
This is the facility ladder of SRL lengths: pick the cable that reaches your work zone from the overhead steel and mount it once. The 360 degree swivel top keeps the housing from winding the cable as workers move, and galvanized rope takes the outdoor and industrial exposure that mounted devices live in.
Features
Carabiner included
Carabiner included
Compact and lightweight design for easy transpor
Compact and lightweight design for easy transport around the jobsite
Swivel top connection point helps reduce lifelin
Swivel top connection point helps reduce lifeline snagging or tangling
Fall-indicating snap hook makes it easy to see i
Fall-indicating snap hook makes it easy to see if unit has been exposed to excessive force during inspection
Digitally enabled QR code on the housing label f
Digitally enabled QR code on the housing label for easy access to manuals, labels, and product specifications.
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Options in This Family
| SKU | Description |
|---|---|
| 10910X | Guardian Halo Cable SRL, Swivel Top with Carabiner, 20 ft |
| 10915X | Guardian Halo Cable SRL, Swivel Top with Carabiner, 30 ft |
| 10917 | Guardian Halo Cable SRL, Swivel Top with Carabiner, 50 ft |
| 10918 | Guardian Halo Cable SRL, Swivel Top with Carabiner, 65 ft |
Technical Specifications
| SKU | 10910X / 10915X / 10917 / 10918 |
|---|---|
| Worker capacity | 130-310 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | Aluminum, Stainless Steel |
| Product weight | 14 lbs |
| Dimensions | 0 in L x 0 in W x 0 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
