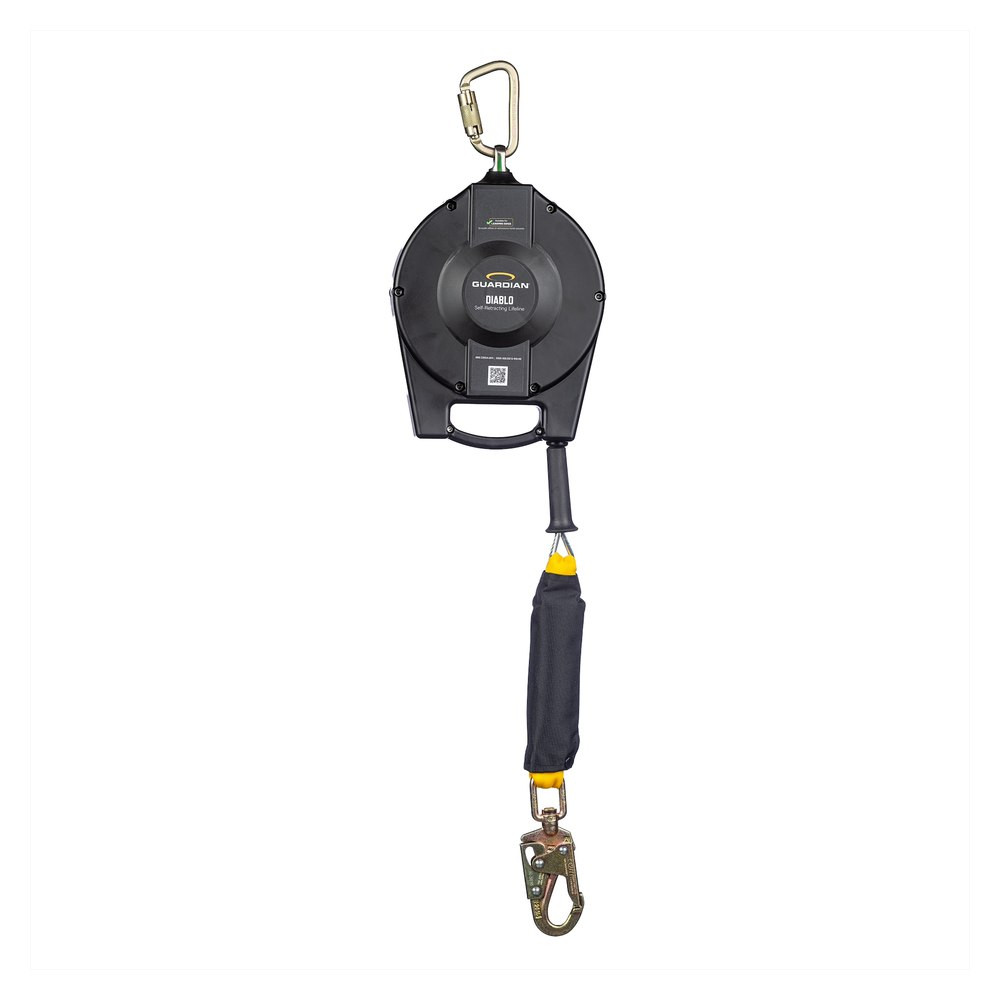

Diablo Big Block Leading Edge Cable SRL, 50 or 65 ft
The Guardian Diablo Big Block is the long-cable Class 2: 50 ft (10968) or 65 ft (10967) of edge-rated galvanized cable with an integrated energy absorber, covering wide leading edge zones from a single fixed mount.
Certified to ANSI Z359.14-2021 Class 2 and compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
Wide decks, tilt panels, and long floor edges outrun personal SRLs; the Diablo covers them from one mounted block. The Class 2 rating carries the whole geometry: foot-level mount, edge contact, and the clearance chart that goes with them. Position the block per the manual to control swing fall across the zone.
Features
Carabiner included
Carabiner included
Integral shock absorber per regulatory requireme
Integral shock absorber per regulatory requirements
High-strength ABS housing withstands the bumps a
High-strength ABS housing withstands the bumps and bruises of a busy jobsite
Ergonomic carrying handle for more convenient tr
Ergonomic carrying handle for more convenient transport around the job
Swivel top connection point helps reduce lifelin
Swivel top connection point helps reduce lifeline snagging or tangling
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Options in This Family
| SKU | Description |
|---|---|
| 10968 | Guardian Diablo Big Block Class 2 Cable SRL, 50 ft |
| 10967 | Guardian Diablo Big Block Class 2 Cable SRL, 65 ft |
Technical Specifications
| SKU | 10968 / 10967 |
|---|---|
| Worker capacity | 100-310 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | Glass filled Nylon |
| Product weight | 20.5 lbs |
| Dimensions | 22.75 in L x 14.25 in W x 8.25 in H |
| Standards | OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
