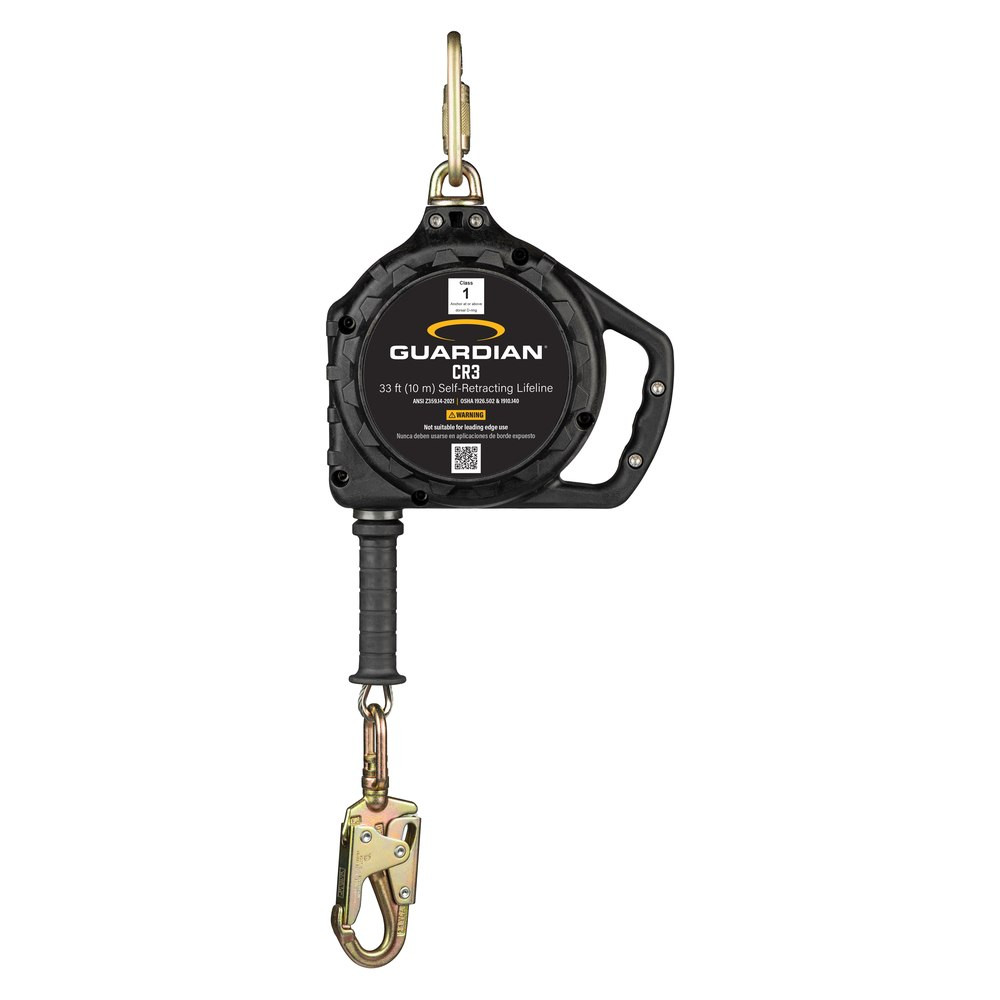

CR3 Class 1 Single Cable SRL, 33 ft Galvanized
The Guardian CR3 is the big-radius overhead retractable: 33 ft of galvanized cable in a housing built for fixed anchorage above the work, covering an entire work zone from one anchor point with a snap hook termination.
Certified to ANSI Z359.14-2021 Class 1 and compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
Where the Velocity line rides on the worker, the CR3 hangs on the structure: mounted overhead on a beam anchor or fixed point, its 33 ft of cable follows the worker across the zone below. Plants, hangars, and loading areas standardize on exactly this format for recurring work under good overhead steel.
Features
Compact and lightweight design for easy transpor
Compact and lightweight design for easy transport around the jobsite
Swivel top connection point helps reduce lifelin
Swivel top connection point helps reduce lifeline snagging or tangling
Fall-indicating snap hook makes it easy to see i
Fall-indicating snap hook makes it easy to see if unit has been exposed to excessive force during inspection
Digitally enabled QR code on the housing label f
Digitally enabled QR code on the housing label for easy access to manuals, labels, and product specifications.
Ergonomic carrying handle for easier transport a
Ergonomic carrying handle for easier transport around the job
Carabiner included
Carabiner included
Technical Specifications
| SKU | 4200220 |
|---|---|
| Product weight | 16.2 lbs |
| Dimensions | 14 in L x 12 in W x 5 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
