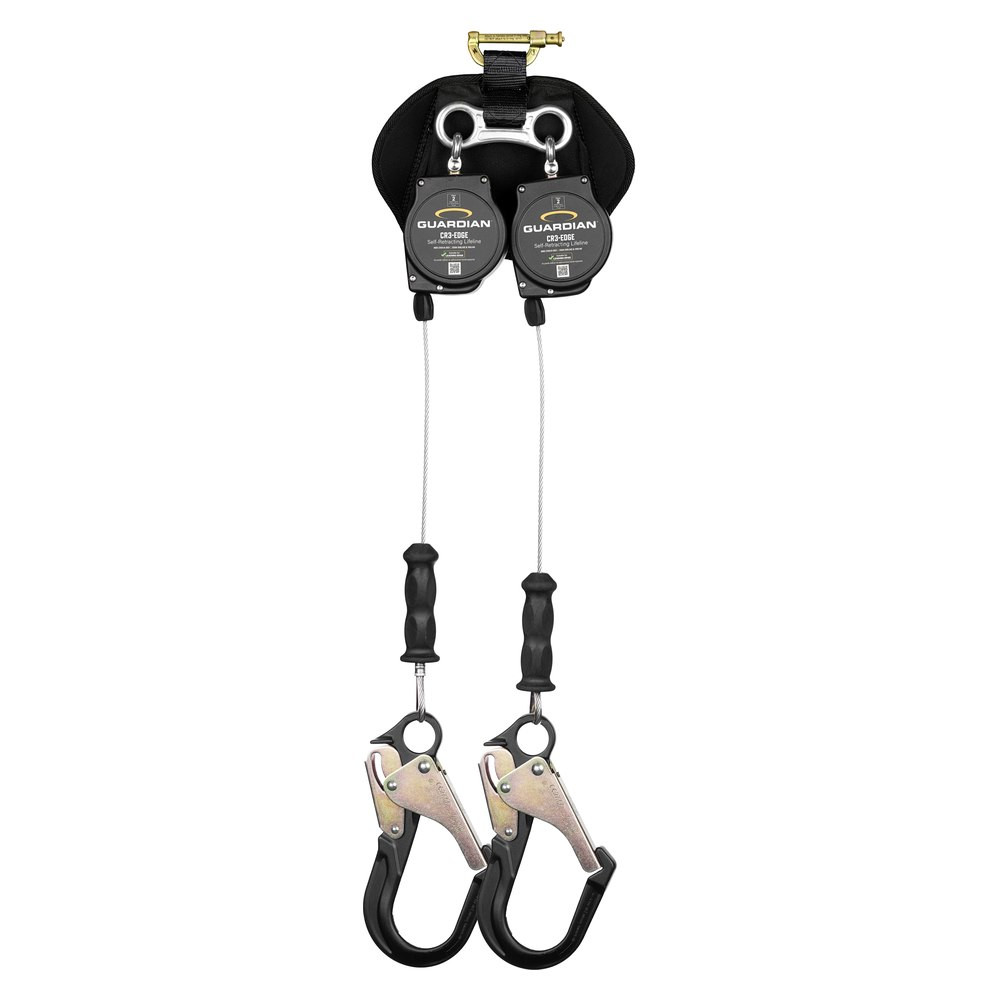

CR3-E Class 2 Dual Leg Cable SRL, 8 ft, Rebar Hooks
The Guardian CR3-E dual runs two 8 ft Class 2 cable legs for 100 percent tie-off at foot level: edge-rated galvanized cable, integrated energy absorbers, and large-throat rebar hooks that close directly over the steel deck crews anchor to.
Certified to ANSI Z359.14-2021 Class 2 and compliant with OSHA 1926.502 and 1910.140.
Who Needs This Product
Decking is the twin Class 2 use case: anchor points at the feet, a live leading edge behind the work, and constant transitions. The CR3-E gives each leg the edge rating and absorber the geometry demands, with rebar hooks that skip the anchor strap on compatible steel.
Features
Dual Lock SRL Connector Included
Dual Lock SRL Connector Included
Unique pack-style shock absorber doubles as a co
Unique pack-style shock absorber doubles as a comfortable back pad
Dual leg units available to promote 100% tie-off
Dual leg units available to promote 100% tie-off
Various Hook Options Available
Various Hook Options Available
Integrated fall clearance charts
Fall Clearance charts integrated into shock pack cover for easy access to clearance charts anytime, anywhere
Digitally enabled labels
QR code for quick and easy access to up-to-date safety and product information
Technical Specifications
| SKU | 4200208 |
|---|---|
| Worker capacity | 130-310 lbs. including all clothing, tools, and equipment |
| Product weight | 11.47 lbs |
| Dimensions | 13.4 in L x 11.02 in W x 4.72 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 4200208 CR3-E Class 2 Dual Leg SRL 8 ft Submittals and Documentation
Guardian Cr3 Edge Srl Manual 2 (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian Cr3 Edge Srl Tds 2 (PDF)Dimensions, materials, capacities, and the full compliance summary.Guardian Cr3 Edge Srl Test Report 2 (PDF)ISO 17025 accredited laboratory test results.Guardian Cr3 Edge Srl Doc Of Conformity 2 (PDF)Manufacturer declaration of conformity.Compatible and Related Products
- Guardian 10900 Halo 11 ft Web SRL. The compact web SRL for overhead anchorage.
- Guardian 00101 Beamer 2000 Beam Anchor. Pivoting beam anchorage for these SRLs.
- Guardian 10733 Suspension Trauma Strap 4-Pack. Post-fall relief for every harness on the crew.
Choosing the Right SRL Class and Length?
Anchor height, edge exposure, and clearance decide the device. Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
