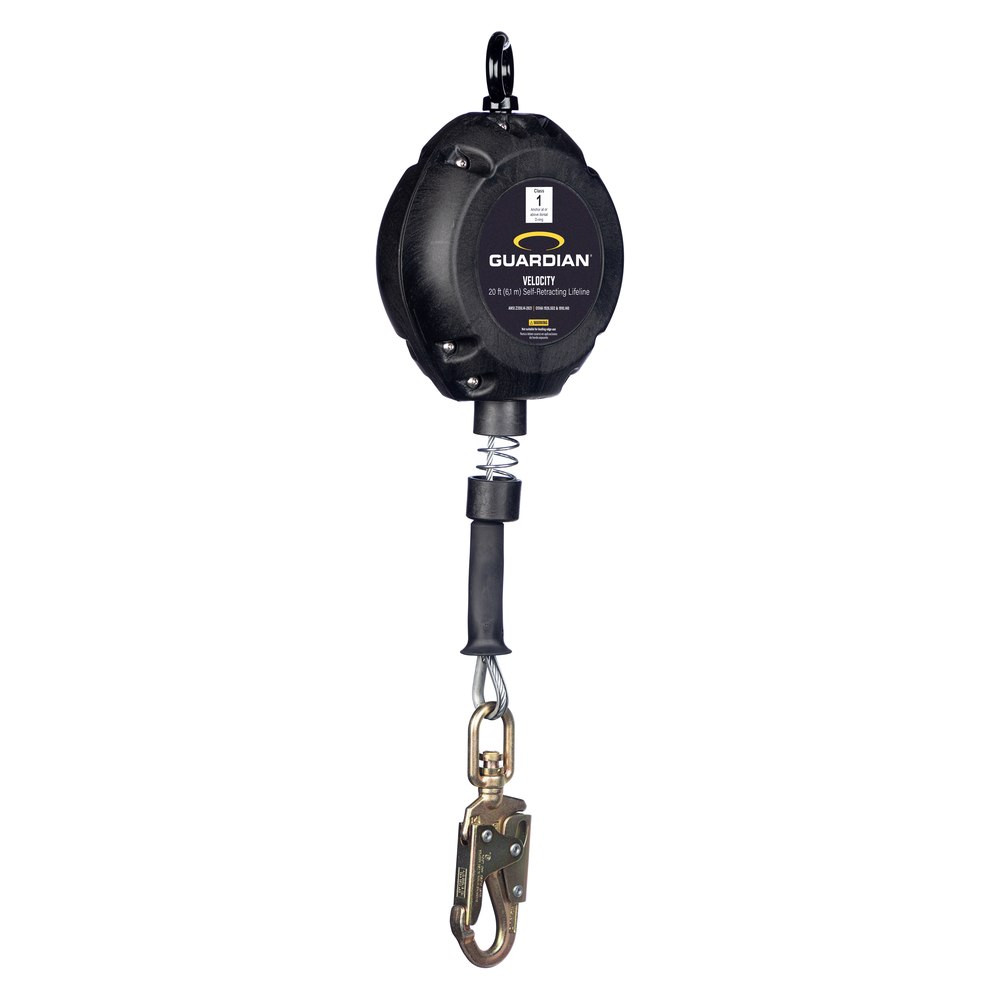

Velocity Class 1 Galvanized Cable SRL, 10 to 20 ft
The Guardian Velocity cable SRL brings galvanized wire rope to the Class 1 personal retractable: a taut steel lifeline that pays out and retracts with the worker and locks instantly in a fall, arresting in inches from overhead anchorage. Stocked in 10 ft (10950X), 16 ft with swivel hook and carabiner (42000), and 20 ft (42001) configurations.
Certified to ANSI Z359.14-2021 Class 1 and compliant with OSHA 1926.502 and 1910.140, with capacities per the model manual.
Who Needs This Product
Cable SRLs earn their place where webbing suffers: sparks, grinding, hot work, and abrasive environments that chew synthetic lifelines. The Velocity line covers short-radius overhead work at three working lengths; anchor at or above the dorsal D-ring per the Class 1 rating and check the clearance chart on the housing label.
Features
Swivel top connection point
Swivels 360 degrees to ensure the device remains in the best orientation during use and also helps prevent lifeline snagging or tangling. Double locking carabiner included
Thermoplastic housing
Super lightweight and durable for long-lasting use in the toughest applications
Rubber lifeline stopper
Doubles as a convenient hand-grip
Steel cable lifeline
Resists cuts and abrasions
Fall-indicating swivel snap hook
Shows if SRL has been exposed to an impact
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Options in This Family
| SKU | Description |
|---|---|
| 10950X | Guardian Velocity Class 1 Cable SRL, 10 ft, HS snap hook |
| 42000 | Guardian Velocity Class 1 Cable SRL, 16 ft, swivel hook with carabiner |
| 42001 | Guardian Velocity Class 1 Cable SRL, 20 ft, snap hook |
Technical Specifications
| SKU | 10950X / 42000 / 42001 |
|---|---|
| Worker capacity | 100-420 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | 3/16 in (4,76 mm) galvanized steel cable, zinc plated steel, aluminum, polyolefin, polyester, rubber |
| Product weight | 6.73 lbs |
| Dimensions | 13 in L x 7.5 in W x 4.5 in H |
| Standards | ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.505 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.505
This product is compliant with OSHA 1926.505 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
