LIFT Fall Protection Kit: Harness, CR3-Edge Class 2 SRL, and Bag

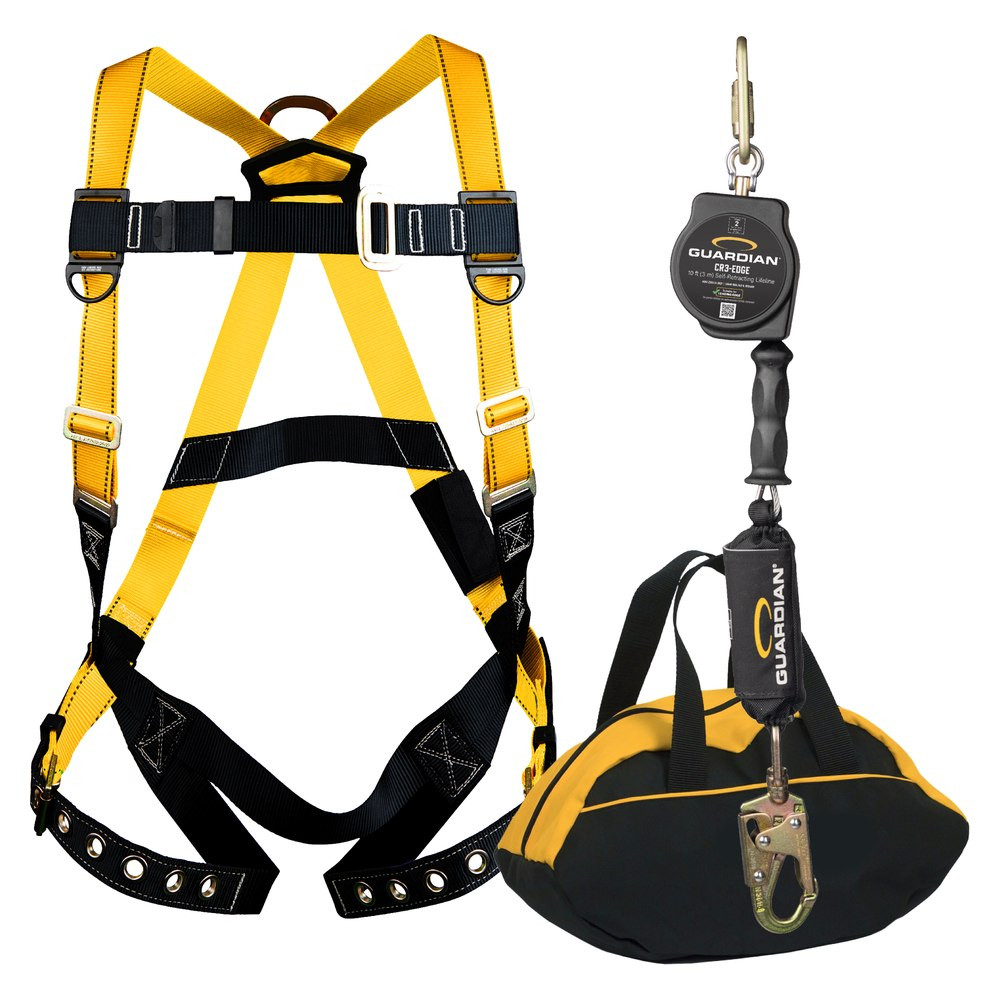

The Guardian LIFT kit packages aerial work platform compliance in one bag: a Velocity harness, the CR3-Edge Class 2 SRL (4200007), and the 00781 carry bag, everything the MEWP operator clips on before the basket leaves the ground. Choose the M-L harness kit (3300029) or XL-XXL (3300030).
Components carry their individual ANSI certifications; the kit serves OSHA aerial lift tie-off requirements per the manuals.
Who Needs This Product
Boom lifts throw occupants, which is why tie-off in the basket is non-negotiable, and why the SRL in this kit is the Class 2 CR3-Edge: basket anchors sit at foot level. One bag per machine keeps rental fleets and service departments compliant without assembling systems piecemeal.
Features
Velocity Harness includes five points of adjustm
Velocity Harness includes five points of adjustment, dorsal D-ring, water-repellant webbing, and double zinc-plated steel hardware
Trauma Straps Included
Trauma Straps Included
Class 2 CR3-Edge Self-Retracting Lifeline includ
Class 2 CR3-Edge Self-Retracting Lifeline includes a swivel steel snap hook, 24" arrest distance, integrated fall clearance charts, and lightweight and durable thermoplastic housing
Carry Bag - Easily transportable and low-profile
Carry Bag - Easily transportable and low-profile for easy stowage
10733 Trauma Suspension Relief Straps to aide in
10733 Trauma Suspension Relief Straps to aide in resuce
00781 Storage and Carry Bag
00781 Storage and Carry Bag
Options in This Family
| SKU | Description |
|---|---|
| 3300029 | Guardian LIFT Fall Protection Kit with CR3-Edge SRL, 01703 harness (M-L) |
| 3300030 | Guardian LIFT Fall Protection Kit with CR3-Edge SRL, 01704 harness (XL-XXL) |
Technical Specifications
| SKU | 3300029 / 3300030 |
|---|---|
| Product weight | 9.5 lbs |
| Dimensions | 12 in L x 12 in W x 12 in H |
| Standards | OSHA 1910.140 & 1926.502, ANSI Z359.11, ANSI Z359.14 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Components work only inside a verified system. This product must be used with compatible equipment per the manufacturer documentation, and the complete fall protection system must be verified by a competent person before use.
Compliance Standards
OSHA 1910.140 & 1926.502
This product is compliant with OSHA 1910.140 & 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.11
This product is compliant with ANSI Z359.11 when used as part of a complete, competent-person verified system.
ANSI Z359.14
This product is compliant with ANSI Z359.14 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian product documentation. The sequence below is an overview only.
- Inspect first. Check the product for damage, wear, and legible markings before every use.
- Verify compatibility. Confirm compatibility with the connecting equipment per the instruction documentation.
- Install or connect. Attach per the manufacturer documentation, with gates and closures fully engaged where applicable.
- Function check. Verify the product operates as intended before loading it.
- Use within ratings. Stay within the rated capacity and application limits at all times.
- Reinspect after use. Check again when the product returns to the gang box; remove damaged items from service.
Inspection and Retirement
Inspect before every use. Remove the product from service for any of the conditions below.
- Cracks, corrosion, deformation, or excessive wear.
- Gates, closures, or moving parts that do not operate positively.
- Cut, frayed, or abraded webbing or stitching (webbing products).
- Missing or illegible markings.
- Any evidence of involvement in a fall event.
Retirement triggers: any fall event, any failed inspection item, or any condition where the inspector cannot positively verify the product is fit for service.
