Name: Guardian 00215 Beam Trolley Anchor, 3 to 10 in
Brand: Guardian
SKU: 00215
Price: 1084.9 USD
Availability: InStock

Description
Warranty Information
Reviews

Guardian Fall Protection

Beam Trolley Anchor with D-Ring, 3 to 10 in Flanges

The Guardian 00215 beam trolley rolls the anchorage with the worker: precision wheels ride the bottom flange of 3 to 10 in beams while the D-ring below carries the connecting device. Instead of unclamping and repositioning an anchor all shift, the tie-off point follows every step.

Rated for one worker at 130 to 310 lbs including tools, the trolley meets OSHA 1926.502 and 1910.140 as the anchorage connector in a personal fall arrest system.

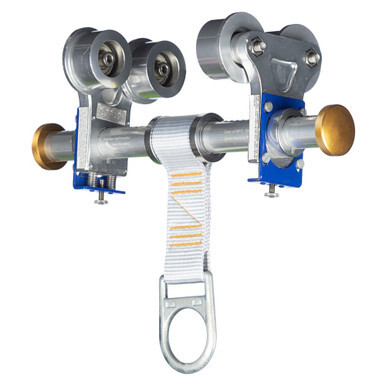

Guardian 00215 Beam Trolley Anchor, 3 to 10 in, official Guardian product photo

130-420 lbs.Worker Capacity

5,000 lbsTensile Strength

8 lbsProduct Weight

Stainless SteeMaterial

OSHA 1910.140Compliance

OSHA 1926.502Compliance

GuardianLifetime Warranty

1 DayUsual Ship Time

Who Needs This Product

Trolleys shine on long, repetitive beam runs: monorail inspection, conveyor lines, crane rail maintenance, and any task that walks a beam end to end. The rolling anchorage keeps the SRL or lanyard vertical overhead, which minimizes swing fall, the hidden hazard of fixed anchors on long runs. Adjust it to the flange, verify the wheel engagement, and the worker walks the beam with the anchor point always overhead.

Features

Easy to install

Free moving rollers

Lightweight and durable

Jobsite-grade construction

Built with the materials and finish quality Guardian applies across its height safety line.

Documented compliance

Full manufacturer documentation is linked on this page for submittal packages.

Fleet-friendly inspection

Clear inspection criteria in the manual keep competent-person checks fast and consistent.

Technical Specifications

SKU	00215
Worker capacity	130-420 lbs. including all clothing, tools, and equipment
Tensile strength	5,000 lbs
Materials	Stainless Steel
Product weight	8 lbs
Dimensions	16 in L x 5.88 in W x 13.41 in H
Standards	OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017
Warranty	Guardian lifetime warranty against defects in material and workmanship

⚠

Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.

Compliance Standards

OSHA 1910.140

This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.

OSHA 1926.502

This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.

ANSI Z359.18-2017

This product is compliant with ANSI Z359.18-2017 when used as part of a complete, competent-person verified system.

ISO 17025 lab tested

Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.

Typical Applications

Commercial constructionAnchorage for personal fall arrest during structural work.

Residential constructionTie-off points for framing, roofing, and exterior trades.

Plant maintenanceRecurring anchorage at tanks, racks, and platforms.

Steel erectionConnection points during beam and decking work.

Concrete workAnchorage during forming, placing, and finishing.

Bridge and civilTie-off during inspection and rehabilitation.

Solar installationAnchor points for install and service crews.

Safety program standardizationOne anchor model and inspection routine across the company.

Installation Overview

Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.

Inspect first. Check the anchor body, connection point, and hardware before every installation.
Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.

Inspection and Retirement

Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.

Cracks, corrosion, or deformation of the body, connection point, or welds.
Loose, missing, damaged, or worn hardware and fasteners.
Elongation or wear at the D-ring or connection eye.
Missing or illegible labels.
Any evidence the anchor has arrested a fall.

Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Frequently Asked Questions

What beams does the trolley fit?

The 00215 adjusts to bottom flanges from 3 to 10 in wide within the manual limits. Verify flange width and thickness before ordering, and confirm the running surface is free of splices or obstructions that could stop a wheel.

Why use a trolley instead of a fixed beam anchor?

On long beam runs, a fixed anchor creates growing swing fall exposure as the worker moves away from it. The trolley keeps the anchorage directly overhead at every step, which keeps the fall geometry vertical and short.

What connecting device pairs best with a trolley?

An overhead-class SRL keeps the line taut to the trolley and arrests in inches. Verify the trolley path is clear end to end and set stops where the manual requires them.

Which standards does this product meet?

It is compliant with OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 when used within a complete, competent-person verified fall protection system, and Guardian products are tested in an ISO 17025 accredited laboratory.

What is the rated capacity?

The rated worker capacity is 130-420 lbs., including all clothing, tools, and equipment carried by the worker.

When should this product be retired?

Retire it after any fall event, any failed inspection item, or whenever an inspector cannot positively verify it is fit for service. The inspection criteria in the linked documentation define the pass-fail conditions.

Is documentation available for submittal packages?

Yes. The manufacturer documentation linked on this page covers installation, specifications, and compliance, and every file is hosted on our site for direct download into your submittal package.

Guardian 00215 Beam Trolley Anchor, 3 to 10 in Submittals and Documentation

Guardian 00215 Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian 00215 Tds (PDF)Dimensions, materials, capacities, and the full compliance summary.Guardian 00215 Test Report (PDF)ISO 17025 accredited laboratory test results.Guardian 00215 Doc Of Conformity (PDF)Manufacturer declaration of conformity.Guardian 00205 Inspection Form (PDF)Printable competent-person inspection checklist.

Compatible and Related Products

Guardian 10900 Halo 11 ft Web SRL. Overhead SRL to pair with beam anchorage.
Guardian External Shock Absorbing Lanyard 2-Pack. Connecting devices for anchored workers.
Guardian 11200 Internal Shock Lanyard 2-Pack. Snag-free lanyard for structural trades.

Specifying Anchors for Your Jobsite?

Substrate, structure, and system layout decide the right anchor. Confirm your application with us and we will make sure the right equipment ships together, based on the delivery location.

Call 863-703-4522 to talk to a fall protection specialist.

Guardian Fall Protection Manufacturer Warranty

Guardian warrants to the purchaser that all products are free from defects in material, workmanship, and design (when the design is Guardian's responsibility). This warranty does not cover conditions resulting from normal wear and tear, neglect, abuse, accident, or otherwise. Guardian's obligations under this warranty apply for the lifetime of the product and are limited to the replacement of the product only.

This warranty is not transferable and does not apply to product that is resold after having been put into service. The warranty is void if the product is changed or altered in any way, or if the product is used in a manner other than for which it is intended. No other person, firm, or entity is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian products. There are no implied warranties of merchantability or fitness for a particular purpose.

Source: Guardian Standard Terms and Conditions of Sale, Doc. 102 v3.0. Contact Guardian customer service at +1 (800) 466-6385 or through guardianfall.com for warranty claims and product support.
