Frontline ST10HTK Aluminum Beam Trolley Anchor | 3" - 10" I-Beams

(No reviews yet) Write a Review
$869.99
Brand:
Frontline Fall Protection
SKU:
ST10HTK
UPC:
691035318255
Availability:
Usually ships within 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
Frontline Beam Anchors

ST10HTK Aluminum Beam Trolley Anchor

The ST10HTK beam trolley is the trailing anchor to choose when a worker has to cover real distance under overhead steel. Rugged, fast-moving aluminum rollers glide smoothly along the beam flange, carrying the anchor point with the user for hands-free horizontal mobility - more trailing mobility means more productivity at the same level of safety. The centered D-ring keeps the connecting device tracking directly above the worker.

Jaw adjustment to variable positions fits flange widths from 3 to 10 inches up to 1 inch thick, and installation needs no tools - place it, set it, work. Built from aluminum and stainless steel with a 5,000 lb minimum breaking strength at just 9.25 lbs, the trolley is removable and reusable from beam to beam. Conforms to ANSI Z359.18 and EN 795 Type B and aligns with OSHA 1926 and 1910.

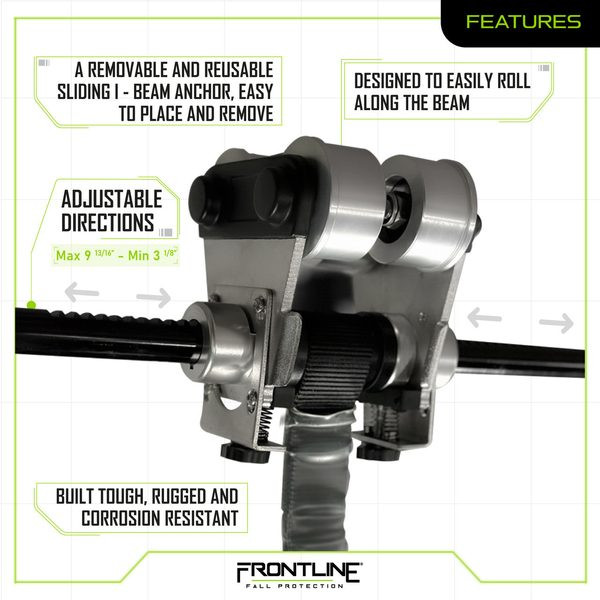

Frontline ST10HTK features graphic: removable and reusable sliding I-beam anchor, designed to roll easily along the beam, adjustable directions, built tough rugged and corrosion resistant
5,000 lbsMin Breaking Strength
3 - 10 inFlange Width Range
1 inMax Flange Thickness
9.25 lbsTrolley Weight
No ToolsFast Installation
RollersSmooth Aluminum Glide
Z359.18ANSI Standard
795-BEN Anchor Type

Who Needs This Product

This product is a rolling I-beam anchorage connector - the moving anchor point of a personal fall arrest system under overhead steel. Crews that walk beams all shift (riggers, maintenance teams, crane bay and hangar workers) choose a trolley over a fixed clamp because the anchor follows the user instead of forcing re-anchoring every few feet. Suitable for a single user connection - each worker still needs a full body harness and a compatible connecting device.

Features

Trailing mobility

The trolley moves along the beam with the user, keeping the anchor point overhead and eliminating constant repositioning.

Fast aluminum rollers

Unique rugged but fast-moving rollers glide smoothly along the flange in both directions.

Adjustable jaws

Variable jaw positions fit flange widths from 3 to 10 inches, up to 1 inch thick.

Tool-free installation

No tools necessary - the trolley installs on the flange and removes again in moments.

Centered D-ring

The D-ring is centered on the anchorage connector and adjusts conveniently from both sides.

Aluminum and stainless build

5,000 lb minimum breaking strength at 9.25 lbs, removable and reusable beam to beam.

Technical Specifications

SKUST10HTK
TypeRolling I-beam trolley anchorage connector, removable and reusable
ConnectionSingle user; centered D-ring
Min breaking strength5,000 lbs
Flange width3 in to 10 in
Flange thicknessUp to 1 in
MaterialAluminum and stainless steel
Weight9.25 lbs
InstallationTool-free; jaw adjustment to variable positions
Compatible connectorsSelf-retracting lifeline or shock-absorbing lanyard
OrientationOverhead fixed-position and trailing horizontal mobility
StandardsANSI Z359.18; OSHA 1926; OSHA 1910; EN 795 Type B

The beam carries the load. The I-beam must be verified by a qualified person for the intended fall protection load, and the jaws must be set to the actual flange width before each use. One worker per trolley - keep the connecting device attached to the centered D-ring and calculate fall clearance before work begins.

Compliance Standards

ANSI Z359.18

American National Standards Institute standard for anchorage connectors.

OSHA 29 CFR 1926

Federal construction fall protection criteria, including anchorage requirements.

OSHA 29 CFR 1910

General industry walking-working surfaces and personal fall protection rules.

EN 795 Type B

European standard for transportable temporary anchor devices.

Typical Applications

Crane bays and runwaysTrailing anchorage along runway and bridge beams during maintenance.
Aircraft hangarsOverhead mobility across hangar bay steel.
Steel erectionRolling tie-off for connection crews working a beam line.
Bridge maintenanceTrailing anchor under girders for inspection walks.
Industrial plantsOverhead beam routes above process equipment.
WarehousesRoof steel access along racking and mezzanine bays.
ShipyardsMobile overhead tie-off along hull and gantry steel.
Fabrication shopsReusable trolley moved between overhead work cells.

Installation Overview

Follow the manufacturer's manual. The sequence below is an overview only.

  1. Inspect. Check the rollers, jaws, adjusters, D-ring, and markings before each use.
  2. Verify the beam. Have a qualified person confirm the I-beam carries the intended fall protection load.
  3. Measure the flange. Confirm flange width is between 3 and 10 inches and thickness does not exceed 1 inch.
  4. Mount. Open the jaws, seat the rollers on the flange, and adjust the jaws to the flange width per the manual - no tools required.
  5. Check the roll. Confirm the trolley is captive on the flange and rolls smoothly through the work zone.
  6. Connect. Attach the SRL or shock-absorbing lanyard to the centered D-ring and verify fall clearance before work begins.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.

  • Rollers: flat spots, cracks, binding, or rough rotation.
  • Jaws and adjusters: deformation, thread damage, or failure to hold position.
  • D-ring: bending, cracks, nicks, or wear at the connection point.
  • Frame: cracks, corrosion, or deformation in the aluminum and stainless components.
  • Markings: missing or illegible product label.

Retire the trolley immediately after any fall arrest event, any deformation or crack, or any condition where it cannot be verified as safe for service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC
Free Tool · No Signup · OSHA 1926.502
Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Frequently Asked Questions

What is the rated user capacity?
The ST10HTK is suitable for a single user connection with a 5,000 lb minimum breaking strength. Frontline's product graphic lists a 310 lb maximum user capacity - confirm capacity against the user manual and your connecting device rating.
Which standards does this product meet?
The ST10HTK conforms to ANSI Z359.18 and EN 795 Type B (transportable temporary anchor devices) and aligns with OSHA 29 CFR 1926 and 1910.
How is a trolley different from a sliding beam clamp?
Rollers. A slider drags along the flange; the trolley's aluminum rollers carry the anchor smoothly with the worker in either direction, which matters on long beam runs and frequent repositioning. It also installs and removes with no tools.
Has this product been independently lab tested?
Yes. The ST10HTK has been third-party tested to its rated performance requirements, and the test report PDF is linked in the Submittals section above.
What do I need to pair with this anchor to build a complete fall arrest system?
The trolley is the anchorage connector only. Each worker also needs a full body harness and a compatible connecting device - a self-retracting lifeline or shock-absorbing lanyard - attached to the centered D-ring. Size the connector free fall and deceleration distance to the fall clearance available below the beam.
How often should this anchor be inspected, and when should it be retired?
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2. Retire it after any fall event, any deformation, or any condition where it cannot be verified as safe.
What is the difference between fall arrest and fall restraint?
Fall arrest catches a worker after a fall happens; fall restraint prevents the worker from reaching the fall hazard in the first place. A trailing trolley under overhead steel is normally part of a fall arrest system - the rolling anchor keeps free fall short by staying above the worker. For a deeper walkthrough with system examples, read our guide: Fall Arrest vs. Fall Restraint. Use the Fall Protection Calculator below to size the right system for your job.

Working Long Runs of Overhead Steel?

Need help specifying the right system for your jobsite? Confirm your application, anchorage, and clearance with us and we will walk through the kit list so the right equipment ships together.

Call 863-703-4522 to talk to a fall protection specialist.

Frontline warrants its products against manufacturing defects in workmanship and materials, as well as product recalls, for a period of one (1) year from the date of purchase. This warranty excludes normal wear and tear, misuse, and improper installation. The limited warranty is provided only to an end-user customer for the period set forth in an order accepted by Fall Protection Distributors, LLC.
