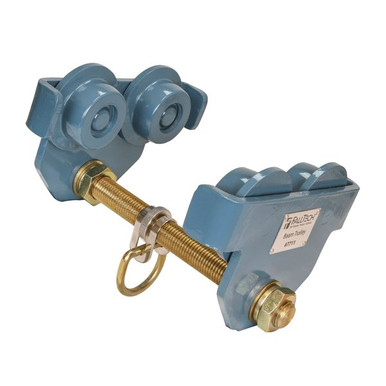

FallTech 7711 All-Steel Beam Trolley Anchor
The FallTech 7711 is an all-steel beam trolley anchor that rolls along a horizontal beam so your tie-off point tracks with you as you work. It mounts to the beam without drilling or welding and provides a continuous overhead anchor.
Built with steel wheeled side plates and a steel D-ring assembly, it fits 3 in to 8 in beams with a maximum flange thickness of 2-1/4 in. Certified to ANSI Z359.18-2017 and ANSI Z359.7 with 5,000 lb (22.2 kN) anchorage strength, and it can also serve as an anchor for rescue operations.
Who Needs This Product
This product is a beam trolley anchor, the moving anchorage component of a personal fall arrest system. Workers on overhead I-beams mount it to the flange so the anchor rolls with them, then connect an SRL or lanyard. It is also rated for rescue operations. You still need a certified full-body harness and a compatible connecting device to complete the system.
Features
Rolls with the worker
Steel wheels let the trolley track your movement along the beam.
All-steel build
Steel wheeled side plates and a steel D-ring assembly for durability.
No drilling or welding
Mounts to the beam flange for a reusable, damage-free anchor.
Rescue rated
May be used as an anchor in rescue operations per the manual.
Adjustable fit
Fits 3 in to 8 in beams with a flange thickness up to 2-1/4 in.
ANSI Z359.18-2017 and Z359.7
Certified 5,000 lb (22.2 kN) anchorage strength.
Install on a rated beam and confirm the trolley is captured. The trolley must be correctly adjusted to the beam width, fully seated on the flange, and secured so it cannot roll off the beam end. Use only self-locking snap hooks or carabiners, and confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.18-2017 and Z359.7
Anchorage connector and qualification standards. 5,000 lb (22.2 kN) strength.
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
5,000 lb rated
Anchorage strength of 5,000 lb (22.2 kN) per attached worker.
Typical Applications
How to Install the 7711
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the wheels, side plates, adjustment, and D-ring for damage or corrosion before each use.
- Adjust to the beam. Set the trolley to the beam width so the wheels ride correctly on the flange.
- Mount and capture. Seat the trolley on the flange and confirm it cannot roll off the beam end (use end stops).
- Connect. Use only a self-locking snap hook or carabiner to attach your SRL or lanyard to the D-ring.
- Check clearance. Confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Wheels and side plates: cracks, bending, flat spots, or seized wheels.
- Adjustment hardware: damaged threads or an adjustment that will not hold.
- D-ring assembly: deformation, sharp edges, corrosion, or a swivel that binds.
- Markings: illegible or missing labels.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 7711 |
|---|---|
| Type | All-steel beam trolley anchor |
| Anchorage classification | ANSI Z359.18-2017; ANSI Z359.7 |
| Strength | 5,000 lb (22.2 kN) |
| Capacity (ANSI) | One worker, 130 to 310 lb combined |
| Capacity (OSHA) | One worker, up to 425 lb combined |
| Beam width range | 3 in to 8 in |
| Maximum flange thickness | 2-1/4 in |
| Construction | Steel wheeled side plates, steel D-ring assembly |
| Connection | Steel D-ring; use self-locking snap hooks or carabiners only |
| Rescue | Rated for rescue use per manual |
| Standards | ANSI Z359.18-2017; ANSI Z359.7; OSHA 1926.502 and 1910 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7711 Submittals and Documentation
7711 Instruction Manual (PDF)Installation, orientations, capacity, and inspection. 7711 Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 and Z359.7 (FallTech test lab). 7711 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
- FallTech steel and beam anchors. See the full beam clamp and steel anchor line.
- FallTech fall protection equipment. Harnesses, SRLs, lanyards, and anchors.
Need a Rolling Overhead Anchor?
The trolley, the connecting device, and the harness all have to match the beam and the fall clearance below. Confirm your application with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
