FallTech 7536 Stationary Vertical Beam Anchor for Fixed Locations
The FallTech 7536 is a stationary beam anchor built for very wide structural flanges. It clamps to the beam to create a rated fixed-location tie-off point without drilling or welding and stays put where installed.
It fits flanges from 10 in to 24 in wide and up to 2 in thick, and can be mounted on horizontal or vertical beams. Certified to ANSI Z359.18-2017 with 5,000 lb (22.2 kN) anchorage strength for a single worker.
Who Needs This Product
This product is a stationary beam anchor for very wide structural flanges, the anchorage component of a personal fall arrest system. Crews working on large girders clamp it to the flange at a fixed location, then connect an SRL or lanyard. You still need a certified full-body harness and a compatible connecting device to complete the system.
Features
Fits very wide flanges
Adjusts from 10 in to 24 in flange width for large girders.
Stationary tie-off
Stays fixed where installed for a stable anchor point.
Horizontal or vertical beams
Rated to mount on vertical beams as well as overhead horizontal flanges.
Thick-flange capacity
Fits heavy structural flanges up to 2 in thick.
No drilling or welding
Clamps to the flange for a reusable, damage-free anchor point.
ANSI Z359.18-2017
Certified 5,000 lb (22.2 kN) single-worker anchorage.
Install tight to the flange and check the jaw gap. The anchor must be clamped firmly with the connector centered and the flange-to-jaw gap no more than 1/2 in. Use only on rated beams within the flange range and confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.18-2017
American National Standard for anchorage connectors. 5,000 lb (22.2 kN) strength.
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
5,000 lb rated
Anchorage strength of 5,000 lb (22.2 kN) per attached worker.
Typical Applications
How to Install the 7536
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the body, jaws, threads, and D-ring for damage or corrosion before each use.
- Position. Place the anchor over the beam flange in an approved orientation.
- Clamp. Adjust until the anchor is tight to the flange and the connector is centered.
- Verify the gap. Confirm the flange-to-jaw gap is within the manual limit; tighten further if needed.
- Connect and check clearance. Attach your SRL or lanyard, then confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Crossbar, jaws, or clamp body: cracks, bending, deformation, or corrosion.
- Threads and adjustment: damaged threads or an adjustment that will not hold.
- D-ring or connector: deformation, sharp edges, corrosion, or a swivel that binds.
- Markings: illegible or missing labels.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 7536 |
|---|---|
| Type | Stationary vertical beam anchor for fixed locations, wide flange |
| Anchorage classification | ANSI Z359.18-2017 |
| Strength | 5,000 lb (22.2 kN) |
| Capacity (ANSI) | One worker, 130 to 310 lb combined |
| Capacity (OSHA) | One worker, 130 to 425 lb combined |
| Beam flange width range | 10 in to 24 in |
| Beam flange thickness | Up to 2 in |
| Maximum flange-to-jaw gap | 1/2 in |
| Mounting | Horizontal or vertical I-beam or H-beam; fixed location |
| Materials | Steel beam anchor with D-ring |
| Standards | ANSI Z359.18-2017; OSHA 1926.502 and 1910 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7536 Submittals and Documentation
7536 Instruction Manual (PDF)Installation, orientations, capacity, and inspection. 7536 Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 7536 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors

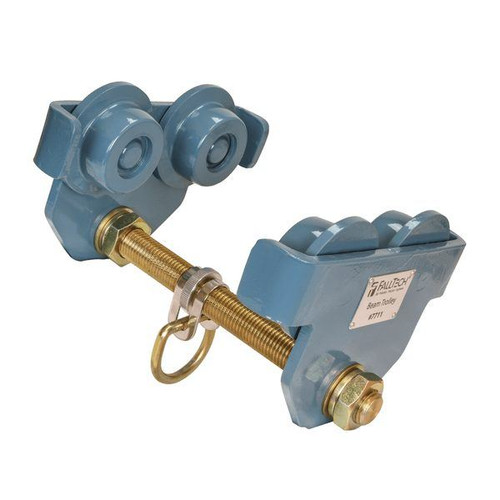

- FallTech steel and beam anchors. See the full beam clamp and steel anchor line.
- FallTech fall protection equipment. Harnesses, SRLs, lanyards, and anchors.
Anchoring to Wide Girders?
Wide-flange anchors and the connecting devices all have to match the structure and the fall clearance below. Confirm your application with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
