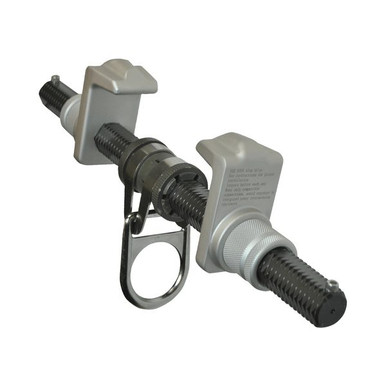

FallTech 7534 Trailing Beam Clamp Anchor with Dual-Clamp Adjustment
The FallTech 7534 is a reusable trailing beam clamp anchor built for wide structural flanges. It grips an I-beam or H-beam flange to create a rated tie-off point without drilling or welding, and trails along the beam with the worker.
The all-steel beam clamp uses dual-clamp adjustment to fit flanges from 3.5 in to 18 in wide and up to 1 in thick, with a swiveling D-ring. It is certified to ANSI Z359.1-2007 with 5,000 lb (22.2 kN) anchorage strength (tested static strength over 5,050 lb).
Who Needs This Product
This product is a beam clamp anchor for wide structural flanges, the anchorage component of a personal fall arrest system. Steel and bridge crews working on large beams clamp it to the flange to create a rated tie-off point for an SRL or energy-absorbing lanyard. You still need a certified full-body harness and a compatible connecting device to complete the system.
Features
Fits wide flanges
Adjusts up to an 18 in flange width for large structural beams.
No drilling or welding
Clamps to the beam flange for a reusable, damage-free anchor point.
Trailing mobility
Slides along the beam so the tie-off stays overhead as you move.
Dual-clamp adjustment
Tightens from both sides for a centered grip across the range.
All-steel construction
Durable steel beam clamp built for repeated jobsite use.
ANSI Z359.1-2007
Certified 5,000 lb (22.2 kN) single-worker anchorage.
Install tight to the flange and check the jaw gap. Both jaws must be fully over the flange with the D-ring centered. The gap between the beam flange and the jaw must not exceed 1/2 in; if it does, tighten the anchor further. Use only on rated horizontal beams and confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.1-2007
American National Standard for self-retracting and fall arrest components. Certified 5,000 lb (22.2 kN).
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
5,000 lb rated
Anchorage strength of 5,000 lb (22.2 kN) per attached worker.
Typical Applications
How to Install the 7534
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the body, jaws, threads, and D-ring for damage or corrosion before each use.
- Position. Place the anchor over the beam flange in an approved orientation.
- Clamp. Adjust until the anchor is tight to the flange and the connector is centered.
- Verify the gap. Confirm the flange-to-jaw gap is within the manual limit; tighten further if needed.
- Connect and check clearance. Attach your SRL or lanyard, then confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Crossbar, jaws, or clamp body: cracks, bending, deformation, or corrosion.
- Threads and adjustment: damaged threads or an adjustment that will not hold.
- D-ring or connector: deformation, sharp edges, corrosion, or a swivel that binds.
- Markings: illegible or missing labels.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 7534 |
|---|---|
| Type | Trailing beam clamp anchor, dual-clamp adjustment, wide flange |
| Anchorage classification | ANSI Z359.1-2007 |
| Strength | 5,000 lb (22.2 kN); tested over 5,050 lbf |
| Capacity (ANSI) | One worker, 130 to 310 lb combined |
| Capacity (OSHA) | One worker, 130 to 425 lb combined |
| Beam flange width range | 3.5 in to 18 in |
| Beam flange thickness | Up to 1 in |
| Maximum flange-to-jaw gap | 1/2 in |
| Mounting | Trailing top flange or overhead bottom flange |
| Beam type | I-beam or H-beam; not open-ended (end stops required) |
| Materials | Steel beam clamp with swiveling D-ring |
| Standards | ANSI Z359.1-2007; OSHA 1926.502 and 1910 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7534 Submittals and Documentation
7534 Instruction Manual (PDF)Installation, orientations, capacity, and inspection. 7534 Declaration of Conformity (PDF)Certification to ANSI Z359.1-2007 (FallTech test lab). 7534 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
