FallTech I-Beam Stanchion Clamp and Base, No Post

(No reviews yet) Write a Review
$289.00 - $349.00
Brand:
FallTech
SKU:
6301XCB
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech SteelGrip HLL Components

FallTech I-Beam Stanchion Clamp and Base, No Post

SteelGrip stanchion base with clamping set for I-beam mounted horizontal lifeline stanchions, sold without the post. Use it to mount a stanchion post to a new beam location or to replace a worn base and clamp set.

Three clamping sizes cover flange widths from 4 in up to 24 in: 630112CB (4 to 12 in), 630118CB (4 to 18 in), and 630124CB (4 to 24 in).

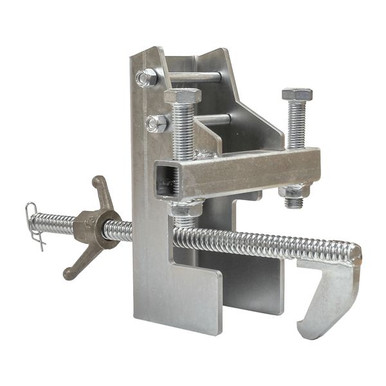

FallTech 630112CB SteelGrip I-beam stanchion clamp and base set without post
3 Sizes4 to 24 in Flanges
Grade 57/8 in Bolts
1 inClamp Rod Dia.
PlatedCarbon Steel
Wing NutTool-Free Clamp
No PostBase and Clamp Only
SteelGripHLL Series
ANSI/ISEA125 Declared

The Mounting Half of a SteelGrip Stanchion

Every SteelGrip I-beam stanchion is two assemblies: the vertical post and the base that clamps it to the beam. This product is the base and clamp set only, which lets you stage mounting points on multiple beams and move one post between them, or restore a stanchion whose base has taken a beating.

The base features plated steel construction with 7/8 in Grade 5 securing bolts, and the clamping rod features 1 in diameter plated steel construction with a wing nut and cotter pin for tool-free installation.

Key Features

Base and Clamp Only

Pairs with the SteelGrip stanchion post, sold separately, to complete an I-beam stanchion.

Three Flange Ranges

Order the clamp reach that matches your beams: 4 to 12 in, 4 to 18 in, or 4 to 24 in.

Grade 5 Fasteners

7/8 in and 1/2 in Grade 5 carbon steel fasteners secure the base to the beam flange.

Tool-Free Clamping

The 1 in plated steel clamping rod tightens with a wing nut and locks with a cotter pin.

Plated Steel Build

Plated carbon steel construction resists corrosion through years of structural steel work.

Replacement Ready

Direct replacement for the base and clamp set on existing SteelGrip stanchions.

⚠

The base is only as strong as its installation. Install per the FallTech manual on structural steel verified by a qualified person, torque the Grade 5 bolts to specification, and never load a horizontal lifeline system that has not been designed and approved as a complete system.

Compliance Standards

ANSI/ISEA 125-2014

Conformity declared by FallTech under declaration S0617003 covering the 630112CB, 630118CB, and 630124CB.

OSHA 1926.502

Horizontal lifeline systems must be designed, installed, and used under the supervision of a qualified person.

System Design Required

Anchorage strength requirements come from the complete HLL system design, not the clamp alone.

FallTech SteelGrip Series

Component of the SteelGrip clamping I-beam stanchion family; see the MHLL manual.

Typical Applications

Multiple beam locationsStaging bases at repeat tie-off points so one post moves between them.
Base replacementRestoring an existing SteelGrip stanchion with a fresh base and clamp set.
Wide-flange beamsThe 18 in and 24 in clamp sets reach wider structural flanges.
Steel erection and bridgeworkTemporary HLL runs along structural steel.

How to Use

Follow the FallTech MHLL instruction manual. The sequence below is an overview only.

  1. Verify the steel. A qualified person confirms the beam and structure meet the HLL system design requirements.
  2. Clamp the base. Position the base on the flange, run the clamping rod through, and tighten the wing nut and Grade 5 bolts per the manual.
  3. Install the post. Set the SteelGrip post into the base, secure it, and rig the horizontal lifeline per the system design.

Inspection and Retirement

Inspect before each use following the MHLL manual. A competent person must inspect the system at least annually.

  • Base plates: bends, cracks, and elongated bolt holes.
  • Fasteners: Grade 5 bolts present, tight, and undamaged.
  • Clamping rod: straight, threads clean, wing nut and cotter pin functional.
  • Plating: corrosion that pits the steel rather than just staining it.

Retirement triggers: deformation, cracked welds, missing or damaged fasteners, or any loading by a fall. Remove the base from service and replace it.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeI-beam stanchion base and clamp set, no post
SKU630112CB (4 to 12 in), 630118CB (4 to 18 in), 630124CB (4 to 24 in)
BasePlated carbon steel
Fasteners7/8 in and 1/2 in Grade 5 carbon steel
Clamping rod1 in diameter plated carbon steel with wing nut and cotter pin
Flange range4 in up to 24 in depending on size
StandardsANSI/ISEA 125-2014 declaration S0617003
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

Does this include the stanchion post?
No. This is the base and clamping set only. It pairs with the FallTech SteelGrip stanchion post, and it is the correct part when you need extra mounting locations or a replacement base for an existing post.
Which clamp size do I need?
Match the clamp set to your beam flange width: the 630112CB adjusts from 4 to 12 in, the 630118CB from 4 to 18 in, and the 630124CB from 4 to 24 in.
What is the hardware specification?
The base uses 7/8 in Grade 5 carbon steel securing bolts with 1/2 in Grade 5 hardware, and the clamping rod is 1 in diameter plated carbon steel secured by a wing nut and cotter pin.
Is this compatible with my existing SteelGrip stanchion?
Yes. It is the same base and clamp assembly used on the SteelGrip clamping I-beam stanchion family and serves as a direct replacement, covered by the same FallTech instruction manual.
Can I use the base alone as an anchor point?
No. The base is a component of a horizontal lifeline stanchion system. Anchorage capacity comes from the engineered HLL system that a qualified person designs and approves, never from the clamp alone.
Does it need special tools to install?
The clamping rod tightens with a wing nut by hand and locks with a cotter pin. The Grade 5 securing bolts require standard hand tools and must be torqued per the FallTech manual.
What documentation is available?
FallTech provides the MHLL instruction manual and Declaration of Conformity S0617003, which covers all three clamp sizes under ANSI/ISEA 125-2014. Both are linked in the submittals section on this page.

FallTech 6301XCB Submittals and Documentation

SteelGrip Stanchion Instruction Manual (PDF)Installation, use, and inspection procedures for SteelGrip I-beam stanchion components. S0617003 Declaration of Conformity (PDF)ANSI/ISEA 125-2014 declaration covering the 630112CB, 630118CB, and 630124CB.
