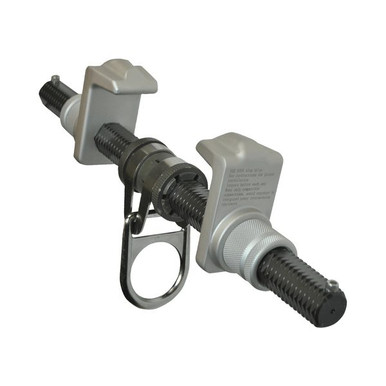

FallTech 7533 Trailing Beam Clamp Anchor with Dual-Clamp Adjustment
The FallTech 7533 is a reusable trailing beam clamp anchor that grips a structural I-beam or H-beam flange to create a rated tie-off point without drilling or welding. It trails along the beam with the worker for a continuous overhead connection.
The all-steel beam clamp uses dual-clamp adjustment to fit flanges from 3.5 in to 12 in wide and up to 1 in thick, with a swiveling D-ring for the connecting device. Certified to ANSI Z359.18-2017 with 5,000 lb (22.2 kN) anchorage strength.
Who Needs This Product
This product is a beam clamp anchor, the anchorage component of a personal fall arrest system. Steel and structural crews clamp it to an I-beam flange to create a rated tie-off point, then connect an SRL or energy-absorbing lanyard. You still need a certified full-body harness and a compatible connecting device to complete the system.
Features
No drilling or welding
Clamps to the beam flange for a reusable, damage-free anchor point.
Trailing mobility
Slides along the beam so the tie-off stays overhead as you move.
Dual-clamp adjustment
Tightens from both sides to fit a range of flange widths securely.
All-steel construction
Durable steel beam clamp built for repeated jobsite use.
Swiveling D-ring
Stays centered under load to reduce twist on the connector.
ANSI Z359.18-2017
Certified 5,000 lb (22.2 kN) single-worker anchorage.
Install tight to the flange and check the jaw gap. Both jaws must be fully over the flange with the D-ring centered. The gap between the beam flange and the jaw must not exceed 1/2 in; if it does, tighten the anchor further. Use only on rated horizontal beams and confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.18-2017
American National Standard for anchorage connectors. 5,000 lb (22.2 kN) strength.
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
5,000 lb rated
Anchorage strength of 5,000 lb (22.2 kN) per attached worker.
Typical Applications
How to Install the 7533
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the body, jaws, threads, and D-ring for damage or corrosion before each use.
- Position. Place the anchor over the beam flange in an approved orientation.
- Clamp. Adjust until the anchor is tight to the flange and the connector is centered.
- Verify the gap. Confirm the flange-to-jaw gap is within the manual limit; tighten further if needed.
- Connect and check clearance. Attach your SRL or lanyard, then confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Crossbar, jaws, or clamp body: cracks, bending, deformation, or corrosion.
- Threads and adjustment: damaged threads or an adjustment that will not hold.
- D-ring or connector: deformation, sharp edges, corrosion, or a swivel that binds.
- Markings: illegible or missing labels.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 7533 |
|---|---|
| Type | Trailing beam clamp anchor, dual-clamp adjustment |
| Anchorage classification | ANSI Z359.18-2017 |
| Strength | 5,000 lb (22.2 kN) |
| Capacity (ANSI) | One worker, 130 to 310 lb combined |
| Capacity (OSHA) | One worker, 130 to 425 lb combined |
| Beam flange width range | 3.5 in to 12 in |
| Beam flange thickness | Up to 1 in |
| Maximum flange-to-jaw gap | 1/2 in |
| Mounting | Trailing top flange or overhead bottom flange |
| Beam type | I-beam or H-beam; not open-ended (end stops required) |
| Materials | Steel beam clamp with swiveling D-ring |
| Standards | ANSI Z359.18-2017; OSHA 1926.502 and 1910 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7533 Submittals and Documentation
7533 Instruction Manual (PDF)Installation, orientations, capacity, and inspection. 7533 Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 7533 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
