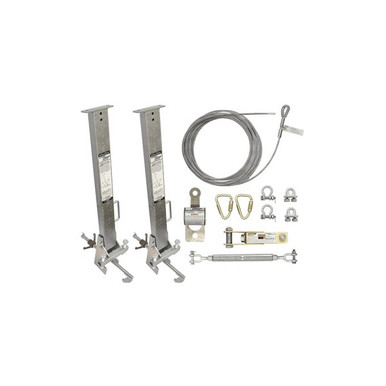

FallTech SteelGrip Cable HLL Kit with I-Beam Stanchions
Complete 60' Single-span Temporary Cable HLL System. Includes two I-beam stanchions with 4" to 24" clamping range.
3/8" galvanized steel cable with one-end terminated and thimbled. Features 1 stainless steel coil energy absorber and 2 connecting carabiners.
Who Needs This Product
Structural steel crews use SteelGrip I-beam stanchions to put a compliant cable lifeline on the iron before decking exists. The stanchion clamps to the beam flange without welding or drilling, raises the line to a workable height, and moves to the next bay when the crew does. Kits pair two or three stanchions with a complete SteelGrip cable assembly.
Features
Complete 60' Single-span Temporary Cable
Complete 60' Single-span Temporary Cable HLL System.
Includes two I-beam stanchions
Includes two I-beam stanchions with 4" to 24" clamping range.
3/8" galvanized steel cable
3/8" galvanized steel cable with one-end terminated and thimbled.
Features 1 stainless steel coil
Features 1 stainless steel coil energy absorber and 2 connecting carabiners.
In-line tension indicator included
In-line tension indicator included with 2 galvanized steel shackles.
System also includes wire rope
System also includes wire rope clips and tensioning turnbuckle.
Torque the clamps and verify the span. Stanchion bases must be torqued to the manual specification on flanges within the rated width and thickness range, and horizontal lifelines must be installed under a qualified person per OSHA 1926.502(d)(8). Add cable deflection to your fall clearance calculation.
Compliance Standards
Cable HLL System meets OSHA 1926.502
Applicable requirement for this equipment: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations.
1910.140 regulations
Applicable requirement for this equipment: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations.
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Clamp the stanchions. Fit each base to the beam flange, adjust the clamping rod to the flange width, and torque the Grade 5 bolts per the manual.
- Set the spacing. Position end stanchions at the span limits, adding an intermediate stanchion and pass-through bracket on spans over 60 ft.
- Rig the cable. Route the SteelGrip cable through the stanchion heads, terminate, and clamp the field end.
- Tension the system. Tighten until the in-line tension indicator shows working tension.
- Connect the workers. Maximum two workers per single span with energy-absorbing connectors and verified fall clearance.
Inspection and Retirement
Inspect stanchions and cable before each use. A competent person must perform a documented inspection at least every six months.
- Post and base: bends, cracks, and weld condition.
- Clamping rod and wing nut: full thread engagement on the flange.
- Bolts: Grade 5 hardware present and torqued.
- Cable system: wires, absorber, tension indicator, and clips per the cable checklist.
Retirement triggers: any fall event, bent posts, damaged clamps, or missing hardware.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | With stanchions |
|---|---|
| SKU | 603XK |
| Static Strength | 5,000 lb min. |
| OSHA User Capacity | 310 lb max. per user; 2 users max. per single span |
| Cable | 3/8" galvanized steel; 5,000 lb min. static strength |
| Stanchions | Plated carbon steel post, base and clamp; 8,000 lb min. static strength |
| Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 6033024 (30 ft, 4 to 24 in), 6036012 (60 ft, 4 to 12 in), 6036018 (60 ft, 4 to 18 in), 6036024 (60 ft, 4 to 24 in), 60310012 (100 ft, 4 to 12 in), 60310018 (100 ft, 4 to 18 in), 60310024 (100 ft, 4 to 24 in) |
| Standards | Cable HLL System meets OSHA 1926.502 and 1910.140 regulations |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 6033024 Submittals and Documentation
603XK Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 603XK Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 603XK Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Horizontal Lifeline System
