Frontline Beam Anchors

ST14SH Steel Easy Slider Beam Walker Anchor

The ST14SH Easy Slider Beam Walker is a removable, reusable sliding I-beam anchor designed to glide easily along the beam while trailing the worker. Nylon rollers carry the anchor along the flange, the hooks lock and unlock with a latch handle for fast on-and-off, and the centered D-ring swivels a full 360 degrees on a stainless steel swivel mount so the connecting device tracks the user tangle-free.

The aluminum support bar with bronze clamps adjusts from both sides to fit beam flanges from 3.5 to 14 inches wide and 0.25 to 1.25 inches thick. Rated at 5,000 lbf (22 kN) tensile strength with a 310 lb single-user capacity and a 1,000 lb working load, and approved for multiple installation orientations per the spec sheet. Conforms to ANSI Z359.1-2007 and Z359.7-2011 and aligns with OSHA 29 CFR 1926.502 and 1910.140.

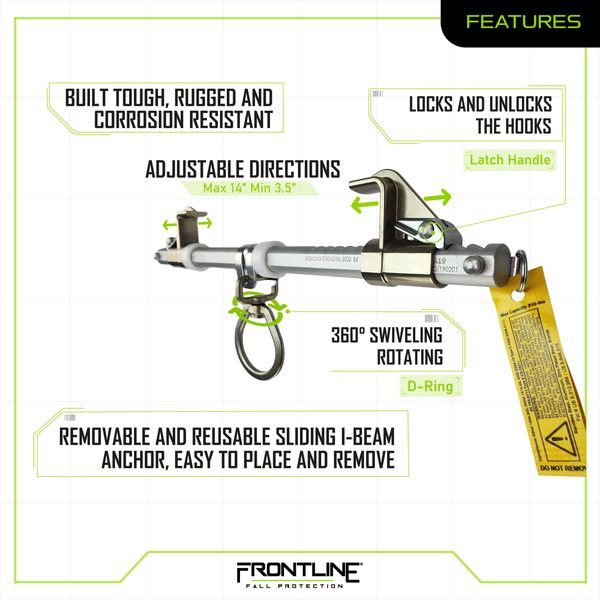

Frontline ST14SH features graphic: built tough rugged and corrosion resistant, locks and unlocks the hooks with latch handle, adjustable directions, 360 degree swiveling rotating D-ring, removable and reusable sliding I-beam anchor
310 lbsMax User Capacity
5,000 lbsTensile Strength
1,000 lbsWorking Load
3.5 - 14 inFlange Width Range
0.25 - 1.25 inFlange Thickness
360Degree Swivel D-Ring
NylonRoller Glide
Z359.1ANSI Standard

Who Needs This Product

This product is a sliding I-beam anchorage connector - a trailing anchor point that follows the worker along the beam. Maintenance and erection crews choose the ST14SH when the anchor moves constantly: rollers make the slide effortless, the latch handle locks the hooks for transport, and adjustment from both sides makes setup quick on the steel. Suitable for a single user connection - each worker still needs a full body harness and a compatible connecting device attached to the D-ring.

Features

Trails the worker

Designed to glide easily along the beam while following the user to the next work position.

Nylon rollers

Rollers between the clamps and the flange keep the slide smooth in both directions.

Locking hooks

A latch handle locks and unlocks the hooks for fast, positive installation and removal.

360 degree swivel D-ring

A stainless steel swivel mount with zinc plated swivel keeps the connection tangle-free.

Dual-side adjustment

The anchor adjusts conveniently from both sides to the flange width.

Multiple orientations

Acceptable installation orientations are diagrammed on the spec sheet for flexible rigging.

Technical Specifications

SKUST14SH
TypeSliding I-beam anchorage connector (beam walker), removable and reusable
ConnectionSingle user; centered 360 degree swiveling D-ring
Tensile strength5,000 lbf / 22 kN
Max user weight310 lbs / 140 kg
Working load1,000 lbs / 454 kg
Flange widthAdjustable 3.5 in to 14 in
Flange thickness0.25 in to 1.25 in
MaterialsSwivel mount: stainless steel; swivel: zinc plated steel; clamps: bronze; support bar: aluminum; rollers: nylon
Weight3.5 lbs per the Frontline material graphic
Compatible connectorsSelf-retracting lifeline or shock-absorbing lanyard
StandardsANSI Z359.1-2007; ANSI Z359.7-2011; OSHA 29 CFR 1926.502; OSHA 29 CFR 1910.140

The beam carries the load. The I-beam must be verified by a qualified person for the intended fall protection load, the anchor must be installed in an acceptable orientation per the spec sheet, and the clamps must be adjusted to the actual flange width and thickness before each use. One worker per anchor at 310 lbs maximum - calculate fall clearance before tying off.

Compliance Standards

ANSI Z359.1-2007

American National Standard safety requirements for personal fall arrest system components, including anchorage connectors.

ANSI Z359.7-2011

Qualification and verification testing of fall protection products by accredited third-party laboratories.

OSHA 29 CFR 1926.502

Federal construction fall protection criteria, including anchorage strength requirements.

OSHA 29 CFR 1910.140

General industry personal fall protection system requirements for maintenance and facility work.

Typical Applications

Steel erectionTrailing tie-off for connection crews walking a beam line.
Bridge maintenanceSliding anchor under girders for inspection and repair walks.
Industrial plantsBeam routes above process equipment and conveyors.
Warehouses and mezzaninesRoof and rack steel access along the bay.
ShipyardsMobile tie-off along hull and gantry steel.
HVAC and piping runsOverhead work that progresses along the structure.
Fabrication shopsOne slider carried between overhead work cells.
Rescue stagingQuick-placed anchorage for rescue plans on steel.

Installation Overview

Follow the manufacturer's manual. The sequence below is an overview only.

  1. Inspect. Check the support bar, clamps, rollers, latch handle, D-ring, and markings before each use.
  2. Verify the beam. Have a qualified person confirm the I-beam carries the intended fall protection load.
  3. Measure the flange. Confirm flange width is between 3.5 and 14 inches and thickness between 0.25 and 1.25 inches.
  4. Mount. Unlock the hooks with the latch handle, seat the anchor over the flange in an acceptable orientation, and adjust from either side per the manual.
  5. Lock and check. Lock the hooks, confirm the anchor is captive, and verify it slides smoothly through the work zone.
  6. Connect. Attach the SRL or shock-absorbing lanyard to the swivel D-ring and verify fall clearance before work begins.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.

  • Rollers: flat spots, cracks, binding, or rough rotation of the nylon wheels.
  • Hooks and latch handle: deformation, incomplete locking, or wear.
  • Support bar and clamps: bending, cracks, or failure to hold the set width.
  • D-ring and swivel mount: bending, cracks, binding, or rough rotation.
  • Markings: missing or illegible product label.

Retire the anchor immediately after any fall arrest event, any deformation or crack, or any condition where it cannot be verified as safe for service.
