Super Anchor ARS Type-II Truss Plant Permanent Roof Anchor
The Super Anchor ARS Type-II is a permanent roof anchor designed to install during truss fabrication or at the jobsite. Developed with a major truss hardware manufacturer, it installs with a cordless drill and a single attachment bolt, so anchors can be plotted on the builder plans and fitted to the corresponding truss without lifting the truss or driving nails.

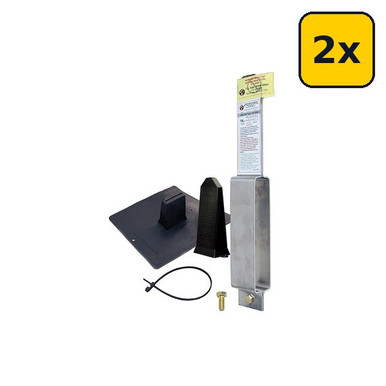

The Type-II is factory fitted with a warning label over the attachment hole to remind users that the structure must be properly braced before use. It carries a minimum strength rating of 6,000 pounds for the 14 gauge material and meets OSHA and ANSI requirements. This 2-pack kit includes two ARS Type-II anchors, each supplied with a TPE flashing boot, a stem cover, and a tether strap.
This product is sold as a 2-pack kit. Each anchor includes a TPE flashing boot and stem cover.
Who Needs This Product
The ARS Type-II is a permanent roof anchor for truss manufacturers and production builders who want fall protection fitted during truss fabrication or early framing. The single bolt install suits factory and jobsite work where speed and repeatable placement matter. Complete the system with a full-body harness, a connecting device, and a competent-person layout.
Features
One person, single bolt install
Fits with a cordless drill, air ratchet, socket, or wrench using a single attachment bolt.
Built for the truss plant
Designed for production truss factory installation and bulk packaged for that environment.
No nails, no truss lifting
Anchors plot on the builder plans and fit the corresponding truss without lifting it.
Factory warning label
A label covers the attachment hole to warn that the structure must be braced before use.
6,000 lb strength rating
Minimum 6,000 lb rating for the 14 gauge stainless steel material.
Kit option
The 1068-B bulk kit adds TPE flashing, a stem cover, and a tether strap.
The structure must be fully braced and sheathed before the Type-II is used for fall protection. The anchor is an anchorage point only; use a full-body harness with a connecting device and confirm fall clearance. Teko nails alone do not arrest a fall; the attachment bolt is required. Run the Fall Protection Calculator below before you tie off.
Compliance Standards
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
ANSI Z359.18-17 Type D
American National Standard for anchorage connectors, Type D.
Typical Applications
How to Install the ARS Type-II Anchor
Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.
- Plot the anchors. Mark anchor locations on the builder plans per a competent-person layout.
- Fit to the truss. Attach the anchor to the corresponding truss with the supplied 5/16 inch grade 8 bolt.
- Add the backer if required. Use a 2x4x16 inch backer for bolt-under installs on 2x4 top chords.
- Brace and sheathe. Confirm the structure is fully braced and sheathed at the anchor before use.
- Flash and verify. Install flashing and stem cover, connect your PPE, and confirm fall clearance.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.
- Anchor body: cracks, deformation, corrosion, or elongated holes.
- Coating: worn or damaged galvanizing, dacromet, or powder coat at the connection point.
- Fasteners and flashing: loose, missing, backed-out, or leaking hardware.
- D-ring or connection point: burrs, sharp edges, or excessive wear.
- Labels: illegible or missing product identification.
Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 1068 (anchor with bolt), 1068-B (bulk kit) |
|---|---|
| Manufacturer Part Number | 1068 / 1068-B |
| Type | Permanent Type-II truss plant roof anchor |
| Material | 14 gauge 430 stainless steel with grade 8 bolt |
| Minimum strength | 6,000 lb (14 gauge material) |
| Max arrest force | 3,600 lb (16 kN) |
| Max user weight | 310 lb (140 kg) including tools and equipment |
| Max slope | 24/12 |
| Kit contents (1068-B) | Anchor, TPE flashing, stem cover, tether strap, bulk packaged |
| Standards | OSHA 1926.502; ANSI Z359.18-17 Type D |
| Warranty | Super Anchor 5-year permanent anchor warranty; see Warranty tab |
Frequently Asked Questions
Super Anchor ARS Type-II Truss Anchor Submittals and Documentation
ARS Instruction and Specification Manual 2025 (PDF)ARS series use, installation, capacity, ratings, and inspection. Tile Roof Anchor Manual (PDF)10 page tile flashing specification guide. ARS Attic Anchor Guide (PDF)Attic and truss anchor application details. Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.Related Super Anchor Products
Fitting Anchors in a Truss Plant?
Bulk quantities, flashing options, and anchor layout all matter for a production line. Talk to us about your volume and we will help you standardize the right Type-II anchor and PPE package.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
