Super Anchor 3205 MAX-S 30 ft SRL Fall Protection Kit: 2903-K SideWinder + PD-6101 Pro-Deluxe Harness
The Super Anchor 3205 MAX-S kit delivers the same professional SRL-based fall arrest system as the 3204, upgraded to a 30 ft SideWinder self retracting lifeline for larger roof planes and longer runs. The SRL holds the line tight to the dorsal D-ring at all times, limiting free fall to 24" and arrest distance to 54", while the Pro-Deluxe Tri-Lam3 padded harness keeps crews comfortable through full shifts.

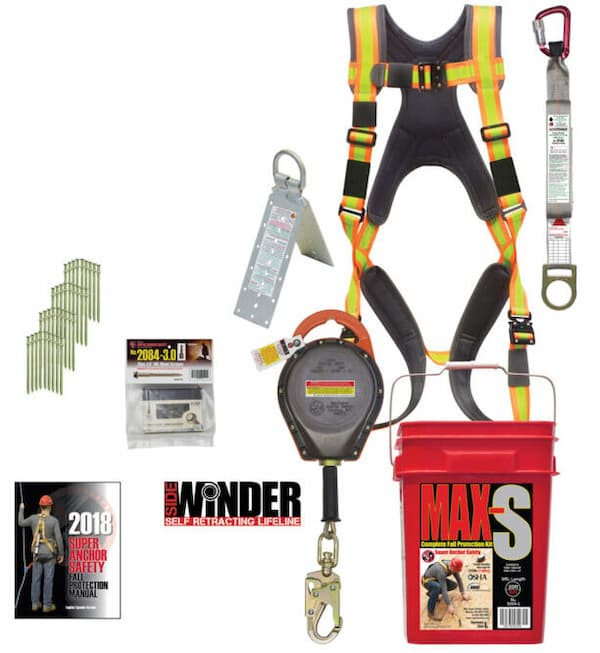

What is included: 30 ft SideWinder Self Retracting Lifeline No. 2903-K, Pro-Deluxe Hi-Viz Harness No. PD-6101-GHM (Medium) or No. PD-6101-GHL (Large), No. 6184 Energy Absorber, No. 5006-Z Aluminum Twist Lock Carabiner, and No. 3013-D Hinge-2 Anchor with 36ct duplex nails, all packed in a storage bucket.
Who Needs This Product
Roofing and exterior contractors working longer roof planes, hips, and commercial-residential hybrids where a 20 ft SRL runs out of cable before the worker runs out of roof. The 30 ft SideWinder covers eave-to-eave travel on larger homes from a single ridge anchor, and the Medium or Large Pro-Deluxe harness option matches the kit to each worker. Everything stores together in one bucket per crew member.
Features
30 ft SideWinder Self Retracting Lifeline
The No. 2903-K SideWinder is an ANSI Z359.14-2014 Class B SRL with 3/16" galvanized cable (3,400 lb minimum tensile), a stainless steel braking system, and a swivel snaphook with a built-in fall indicator. The 30 ft length weighs 16 lb per the SideWinder manual.
Pro-Deluxe Tri-Lam3 Padded Harness
The PD-6101-GH harness pairs Hi-Viz webbing with a gray Tri-Lam3 padded frame that resists moisture absorption. Choose Medium or Large at checkout.
No. 6184 Energy Absorber
ANSI Z359.13 tear-webbing energy absorber with the No. 5006-Z aluminum twist lock carabiner on the A-end and a D-ring on the B-end, rated for users from 130 lb to 310 lb.
Aluminum Twist Lock Carabiner
The included No. 5006-Z carabiner carries a 3,600 lb gate strength and meets ANSI Z359 connector requirements.
Hinge-2 Reusable Roof Anchor
The No. 3013-D anchor is 11ga steel with a forged, Dacromet-coated D-ring. It hinges over the ridge or mounts on the field of the roof and installs with the included 36ct duplex nails.
Longer Reach, Same Footprint
Thirty feet of working cable means fewer anchor moves on wide roof planes, saving installation time on every slope.
Technical Specifications
| Kit Part Number | 3205 (MAX-S Bucket Kit, 30 ft SRL, Medium or Large harness) |
|---|---|
| Self Retracting Lifeline | No. 2903-K SideWinder, 30 ft, Class B, galvanized 3/16" cable, stainless steel braking system |
| SRL Weight | 16 lb (30 ft model) |
| SRL Compliance | ANSI Z359.14-2014 Class B, OSHA 1926.502 |
| SRL Maximum Free Fall | 24" over wood edges |
| SRL Maximum Arrest Distance | 54" |
| SRL Arrest Force | 900 lb average, 1,800 lb maximum |
| Harness | No. PD-6101-GH Pro-Deluxe, Hi-Viz webbing, gray Tri-Lam3 padded frame, Medium or Large |
| Energy Absorber | No. 6184, ANSI Z359.13, A-end No. 5006-Z carabiner, B-end D-ring, 130-310 lb user weight |
| Carabiner | No. 5006-Z aluminum twist lock, 3,600 lb gate strength, ANSI Z359 |
| Anchor | No. 3013-D Hinge-2, 11ga steel, forged Dacromet-coated D-ring, 5,000 lb minimum tensile |
| Fasteners | 36ct 16d duplex nails (6 per leg required, 12 per installation) |
| User Capacity | One worker, 310 lb maximum including tools |
| Compliance | OSHA 1926.502, ANSI Z359.1, ANSI Z359.13, ANSI Z359.14 |
The SideWinder SRL is not approved for leading edge fall hazards and free falls over metal or concrete edges. Anchor the SRL at or above the dorsal D-ring where practical and keep free fall to 24" or less over wood edges. The Hinge-2 anchor is temporary and must be removed after use, and the supporting framing must be capable of resisting 5,000 lb or 2x the intended load. Remove the entire system from service after any fall.
Compliance Standards
OSHA 1926.502
Personal fall arrest system criteria for construction, including anchorage strength, maximum arresting force, and prompt rescue provisions.
ANSI Z359.14-2014
The SideWinder 2903-K is a Class B self retracting device with certified arrest distance and force performance.
ANSI Z359.13
The No. 6184 energy absorber meets the personal energy absorber standard for users from 130 lb to 310 lb.
ANSI Z359.12
The No. 5006-Z twist lock carabiner meets connector gate strength requirements at 3,600 lb.
Typical Applications
Installation Overview
Typical installation for a pitched wood-framed roof. Read the SideWinder and Hinge-2 manuals before use.
- Install the No. 3013-D Hinge-2 anchor over a rafter or truss, 6 nails per leg through the center-row holes, at least 6 ft from gable edges.
- Connect the No. 5006-Z twist lock carabiner and SRL A-end to the anchor D-ring.
- Don the PD-6101 Pro-Deluxe harness and adjust the 5 points for a snug fit.
- Attach the SideWinder cable snaphook to the dorsal D-ring, using the No. 6184 energy absorber when the application requires it.
- Perform a function test: pull the cable sharply and confirm the brake engages, and check the fall indicator on the swivel snaphook.
- Work within a 30 degree cone below the anchor to limit swing fall.
- Remove the anchor and re-pack the kit when work is complete.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- SRL cable shows broken wires, kinks, birdcaging, or corrosion
- SRL brake fails a function test or the cable does not retract fully
- The swivel snaphook fall indicator shows the unit has arrested a fall
- Carabiner gate does not close and lock automatically
- Energy absorber tear webbing shows any deployment
- Anchor legs are bent, welds are cracked, or the D-ring is deformed
- Harness webbing is cut, abraded, or stitching is broken
- Any warning or PID label is missing or not legible
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
