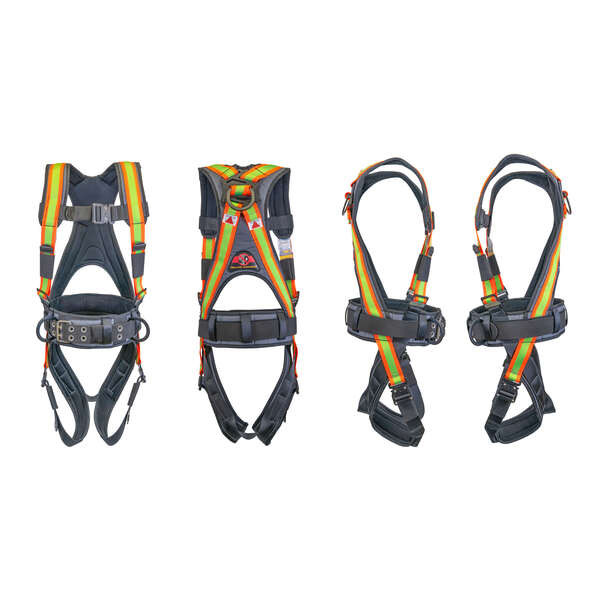

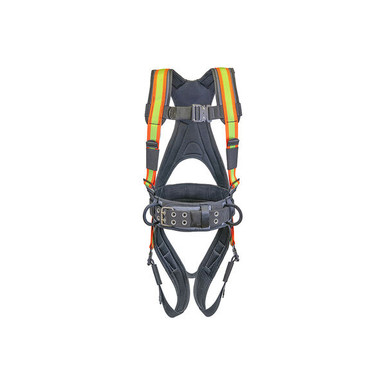

6101 Deluxe 3 D-Ring Full Body Harness
The Super Anchor 6101 Deluxe is the flagship 3 D-ring full body harness: a gray SAS Tri-Lam3 padded frame carrying 1-3/4 inch polyester webbing with a 6,000 lb minimum tensile strength, 5,000 lb D-rings, quick connect buckles, and electrical discharge coated hardware. Rated Type A/P for fall arrest, fall restraint, and work positioning at up to 310 lb including tools.
Four webbing colors (Hi-Viz, Blue-Green, Red, Silver) in five sizes (S, M, L, LL, XL), every combination at one price. Compliant with ANSI Z359.11-21 (Intertek lab report 11-2024), OSHA 1926.502, and CSA Z259.10-18. Pairs with All-Pakka tool bags, hammer holders, and the grommet utility belt, or step up to the 6151 with tool bags included.
Who Needs This Product
The 6101 Deluxe is for roofers, framers, solar installers, and trades who wear a harness all day and want padding that holds up: the Tri-Lam3 frame spreads load across the shoulders and waist instead of digging in. The dorsal D-ring serves fall arrest and restraint, and the side D-rings handle work positioning. Crews pick webbing colors to separate teams or boost visibility, and the LL long-large cut fits taller workers without going up a full size.
Features
Tri-Lam3 padded frame
The SAS three-layer laminated frame pads shoulders and waist for all-day wear without pressure points.
6,000 lb webbing, 5,000 lb D-rings
1-3/4 inch polyester webbing with certified hardware and electrical discharge coating.
3 D-ring configuration
Dorsal D-ring for arrest and restraint plus side D-rings for work positioning.
Quick connect buckles
Chest and leg buckles snap in and adjust snug, with elastic keepers for loose webbing.
4 webbing colors
Hi-Viz, Blue-Green, Red, and Silver webbing on the gray frame, one price across the line.
5-size range with LL
Sizes S through XL including the long-large LL cut for taller workers.
Technical Specifications
| Model | 6101 series, 20 configurations |
|---|---|
| Webbing | 1-3/4 inch (45 mm) polyester, 6,000 lb minimum tensile strength |
| Frame | SAS Tri-Lam3 padded frame, gray |
| D-Rings | Dorsal plus side positioning D-rings, 5,000 lb minimum strength |
| Buckles | Quick connect, ANSI/CSA certified connectors |
| Hardware Finish | Electrical discharge coating (EDC) |
| User Capacity | 310 lb maximum including tools and equipment |
| Maximum Harness Stretch | 14 inches, included in length of fall calculations |
| Rating | Type A/P: fall arrest, fall restraint, work positioning |
| Colors | Hi-Viz, Blue-Green, Red, Silver webbing |
| Sizes | S, M, L, LL (long-large), XL |
| Compliance | ANSI Z359.11-21 (Intertek report 11-2024); OSHA 1926.502; CSA Z259.10-18 (report on request) |
Fit and fall clearance are life critical. Adjust the harness snug with the chest strap 8 to 12 inches below the shoulders and loose webbing stored in the keepers; a badly adjusted harness can allow the user to fall out during a free fall. Maximum harness stretch of 14 inches must be included in every length of fall calculation, and users connect only to rated D-rings with ANSI or CSA certified connectors.
Compliance Standards
ANSI Z359.11-21
Full body harness compliance verified by Intertek lab report 11-2024 per the 2025 manual.
OSHA 1926.502
Construction personal fall arrest system requirements.
CSA Z259.10-18
Canadian harness compliance with report available on request.
Type A/P Rating
Fall arrest, fall restraint, and work positioning use.
Typical Applications
Installation Overview
Fit procedure per the 2025 manual:
- Don the harness and connect the quick connect chest and leg buckles.
- Set the chest strap 8 to 12 inches below the shoulders with the straps aligned vertically.
- Adjust chest, leg, and waist belt snug with extra webbing stored in the elastic keepers.
- Connect fall protection to the dorsal D-ring with ANSI or CSA certified connectors; side D-rings serve work positioning only.
- Include 14 inches of maximum harness stretch in the length of fall calculation.
- Inspect webbing, stitching, hardware, and labels before each use.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- Webbing shows cuts, burns, abrasion, or chemical damage.
- Stitching is broken or pulled at any load-bearing seam.
- D-rings, buckles, or adjusters are cracked, bent, or corroded.
- The harness arrested a fall; remove it from service immediately.
- PID labels inside the shoulder strap are missing or illegible.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Super Anchor 6101 Submittals and Documentation
Deluxe Harness Instruction/Specification Manual 2025 (PDF)Materials, fit adjustment, harness stretch, D-ring use, and inspection requirements. Deluxe Harness Size Chart (PDF)Size selection chart for S through XL including the long-large LL cut. Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty terms for Super Anchor fall protection equipment.Compatible and Related Products
- Super Anchor 4020 3-Strand Value Lifeline. Lifelines in 25 to 100 ft lengths for harness tie-off.
- Super Anchor SuperGrab 4015 Rope Grabs. Fall arresters for lifeline work.
- Super Anchor SideWinder Cable SRL. Self-retracting lifeline in 20 and 50 ft lengths.
- Super Anchor 3013-D Hinge-2 Anchors. Reusable temporary roof anchors.
Outfitting a Whole Crew?
Send us sizes and colors by worker and we will build the order with lifelines and anchors so everything ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
