Name: Super Anchor Heat Resistant Harness + Energy Absorber, 6174-EA
Brand: Super Anchor
SKU: 6174-EA
Price: 345.6 USD
Availability: InStock

Description
Warranty Information
Reviews

Super Anchor Full Body Harnesses

Super Anchor Heat Resistant Harness + Energy Absorber, 6174-EA

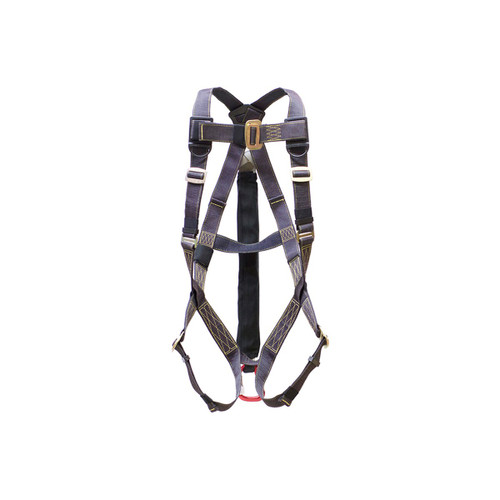

The Super Anchor 6174-EA is a heat resistant full body harness with a factory-installed 6192 Ultra-Lite energy absorber and 6179-HR2 heat resistant absorber cover, built for welding, hot work, and high-heat environments where standard polyester webbing would be damaged. It combines heat resistant webbing with a dorsal fall-arrest D-ring for a compliant tie-off near heat and sparks.

The 6174 is offered in Small through X-Large and is certified to ANSI Z359.11. This model has the built-in energy absorber; the standard 6174 without the absorber is also available.

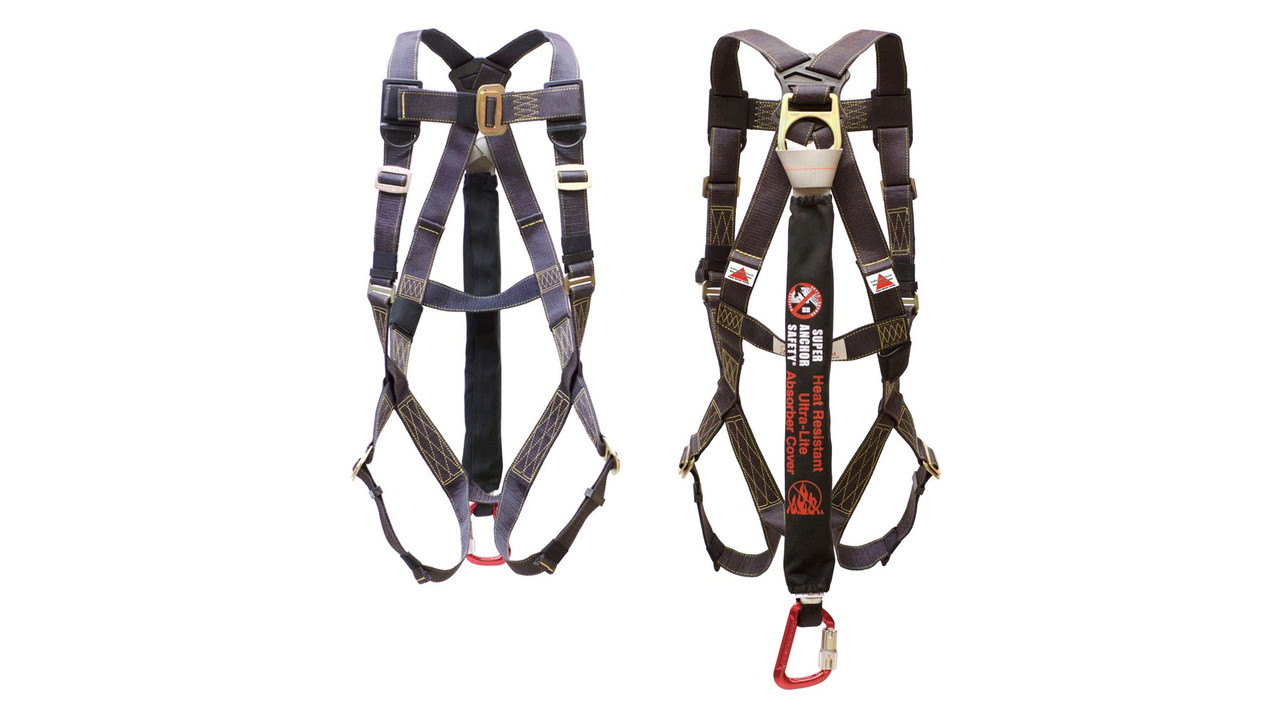

Super Anchor 6174 heat resistant full body harness

310 lbMax User Weight

Heat ResistantWebbing

Dorsal D-RingFall Arrest

WeldingHot Work Ready

S to XLSizes

ANSI Z359.11Compliant

Fall IndicatorsIncluded

5-PointAdjustment

Who Needs This Product

The 6174 is a heat resistant harness for welders, cutters, foundry workers, and hot-work trades that need fall protection near heat and sparks. Complete the system with a welding-rated energy-absorbing lanyard or SRL and a rated anchor.

Features

Heat resistant webbing

Resists heat, sparks, and slag that would damage standard polyester.

Dorsal fall-arrest D-ring

Rear D-ring for personal fall arrest.

Built for hot work

Suited to welding, cutting, and high-heat environments.

Full size range

Small through X-Large.

Fall indicators

Visible sign of a fall event during inspection.

ANSI Z359.11

Meets the American National Standard for full body harnesses.

⚠

A harness is one part of a personal fall-arrest system. Pair with heat and spatter resistant connecting devices for hot-work use. Inspect before each use, use a compatible energy-absorbing lanyard or self-retracting lifeline and a rated anchor, and confirm fall clearance. Run the Fall Protection Calculator below before you tie off.

Compliance Standards

ANSI Z359.11

American National Standard for full-body harnesses.

OSHA 29 CFR 1926.502

Federal construction fall protection requirements.

Typical Applications

WeldingFall arrest near heat and sparks.

Cutting and grindingHot-work tie-off.

FoundryHigh-heat environment fall protection.

FabricationShop and field hot work at height.

How to Use Heat Resistant Harness

Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.

Inspect. Check all webbing, stitching, hardware, and fall indicators before each use.
Don the harness. Step in, pull it up, and connect the chest and leg buckles.
Adjust the fit. Snug all straps so the dorsal D-ring sits between the shoulder blades.
Connect. Attach your energy-absorbing lanyard or self-retracting lifeline to the dorsal D-ring.
Verify clearance. Confirm anchorage, connectors, and fall clearance before working at height.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.

Webbing: cuts, frays, abrasion, burns, chemical damage, or heat glazing.
Stitching: pulled, cut, or broken threads.
Hardware: D-rings, buckles, and keepers for distortion, cracks, corrosion, or sharp edges.
Fall indicators: any sign of deployment or activation.
Labels: illegible or missing markings.

Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

SKU	6174-EAS/M/L/XL
Manufacturer Part Number	6174-EA series
Type	Heat resistant harness with 6192 energy absorber and 6179-HR2 cover
Webbing	Heat resistant
Dorsal D-ring	Rear fall-arrest D-ring
Capacity	310 lb
Sizes	Small to X-Large
Standards	ANSI Z359.11; OSHA 1926.502
Warranty	Super Anchor Safety manufacturer warranty; see Warranty tab

Frequently Asked Questions

What makes the 6174-EA heat resistant?

It uses heat resistant webbing that withstands heat, sparks, and slag that would damage standard polyester. Inspect it before every use, and retire it right away if you find corrosion, cracks, or bent components. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures.

What work is it for?

Welding, cutting, foundry, and other hot-work environments. Pair it only with connectors and equipment that are approved for use together so the complete system performs as designed. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures. Only trained workers should select, install, and use fall protection equipment for its intended application.

What sizes are available?

Small, Medium, Large, and X-Large. The specifications listed on this page outline the build details you need for your application. Before every use, confirm the product is compatible with the rest of your fall protection system and that you have adequate fall clearance below the work area.

What D-rings does it have?

A dorsal rear D-ring for fall arrest. Pair it only with connectors and equipment that are approved for use together so the complete system performs as designed. Always inspect the product before each use and take it out of service if you notice any damage, deformation, or excessive wear.

What standard does it meet?

ANSI Z359.11 for full body harnesses. Make sure the connecting hardware and anchorage suit your application before you attach a lanyard or lifeline. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures. Only trained workers should select, install, and use fall protection equipment for its intended application.

Do I need a special lanyard?

No separate energy absorber is needed: the 6174-EA includes a factory-installed 6192 Ultra-Lite energy absorber protected by a 6179-HR2 heat resistant cover. Connect a compatible lanyard or lifeline to the absorber. Make sure the connecting hardware and anchorage suit your application before you attach a lanyard or lifeline. Always inspect the product before each use and take it out of service if you notice any damage, deformation, or excessive wear.

Do I need a harness and a connector both?

Yes. The harness is one part of the system; you also need a connecting device and a rated anchor. Confirm each component in the system is compatible and rated for the intended use before connecting to it. Only trained workers should select, install, and use fall protection equipment for its intended application.

Heat Resistant Harness Submittals and Documentation

Super Anchor Deluxe Harness Manual (PDF)Use, fitting, capacity, and inspection.6174-EA Sell Sheet (PDF)Energy absorber configuration features, part numbers, and ratings. Heat PPE Spec Sheet (PDF)Material, heat range, and compliance specifications. Harness Sizing Chart (PDF)Size selection guide based on height and weight. Energy Absorber Manual (PDF)Use and inspection for the 6192 Ultra-Lite absorber. Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.

Related Super Anchor Products

Protecting Hot-Work Crews?

Heat exposure and worker size affect harness and lanyard choice. Confirm your hot-work application with us and we will help match the right heat resistant harness and connectors.

Call 863-703-4522 to talk to a fall protection specialist.

Super Anchor Safety Manufacturer Warranty

Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.

Permanent Anchor Warranty

Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.

See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
