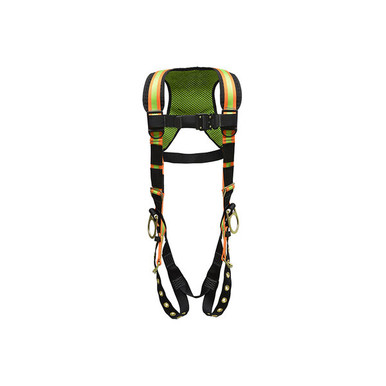

TB3-6070-H Hi-Viz 3 D-Ring Fall Arrester Harness, 5 Sizes
The Super Anchor TB3-6070-H is a Hi-Viz webbing 3 D-ring Fall Arrester full body harness with a padded back frame, a dorsal D-ring, 2 side D-rings, tongue buckle leg straps, and a quick connect chest strap. The webbing is 1-3/4 inch polyester with a 6,000 lb minimum tensile strength, and every D-ring carries a 5,000 lb minimum strength with ANSI and CSA certified hardware throughout.
Choose Small through 2X-Large with the Size selector above, guided by the TB3-6070 sizing chart linked below. Rated Type A/P for fall arrest, fall restraint, and work positioning under ANSI Z359.11-2021 per the Intertek lab report 11-2024, with OSHA 1926.502 compliance and a CSA Z259.10 compliance report available on request. Maximum user weight is 310 lb including tools.
Who Needs This Product
The TB3-6070-H is for roofers, framers, and general construction crews who want side D-rings for fall restraint rigging on top of a standard dorsal fall arrest connection, with Hi-Viz webbing that keeps workers visible on busy jobsites. The padded back frame D-pad spreads the load across the shoulders, the quick connect chest strap speeds donning, and the tongue buckle leg straps adjust with the familiar grommet-and-tongue action that survives muddy gloves. Connect fall arrest PPE only to the dorsal D-ring with ANSI or CSA certified 3,600 lb gate strength connectors; the side D-rings are for fall restraint only. This is the same harness supplied in the 3206 Max-LE leading edge kits.
Features
Padded back frame
The D-pad back frame positions the dorsal D-ring 6 to 12 inches below the shoulders and spreads arrest loads across the frame.
Hi-Viz webbing
High visibility 1-3/4 inch polyester webbing with a 6,000 lb minimum tensile strength keeps the worker seen on crowded sites.
2 side D-rings
Side D-rings rig fall restraint systems that keep the worker off the edge entirely; they are never used for fall arrest.
Tongue buckle leg straps
Grommeted tongue buckles adjust the leg straps to a snug fit and hold it through a full shift.
Quick connect chest strap
The chest strap buckle snaps together and passes a pull lock test, set 8 to 12 inches below the shoulders.
Visual fall indicators
Visual indicator labels on the shoulder straps deploy in a free fall, showing a warning that retires the harness on sight.
Technical Specifications
| Models | TB3-6070-HS (S); TB3-6070-HM (M); TB3-6070-HL (L); TB3-6070-HX (XL); TB3-6070-H2X (2XL) |
|---|---|
| Type | A/P: Fall Arrest, Fall Restraint, Work Positioning |
| Webbing | Hi-Viz polyester, 1-3/4 inch (45 mm), 6,000 lb (27 kN) minimum tensile strength |
| D-Rings | 1 dorsal plus 2 side; 5,000 lb (22.5 kN) minimum strength |
| Connectors | ANSI/CSA certified |
| Chest Strap | Quick connect buckle, positioned 8 to 12 inches below the shoulders |
| Leg Straps | Tongue buckle with grommets |
| Hardware Finish | Zinc or EDC with zinc plating |
| ANSI Capacity | 130 lb to 310 lb including tools and equipment |
| OSHA Capacity | 90 lb to 420 lb |
| CSA Capacity | 130 lb to 352 lb |
| Harness Stretch | 14 inch maximum, included in length of fall calculations |
| Maximum Free Fall | 6 ft (1.8 m) with a compliant energy absorber |
| Compliance | ANSI Z359.11-2021 (Intertek lab report 11-2024); OSHA 1926.502; CSA Z259.10 compliance report on request |
| UPC | 786158607031 (S); 786158607024 (M); 786158607017 (L); 786158607048 (XL); 786158607055 (2XL) |
Side D-rings are for fall restraint only. Connect fall arrest PPE only to the dorsal D-ring, never attach a lifeline, lanyard, absorber, or SRL directly to the harness webbing, and use an ANSI or CSA compliant energy absorber or an SRL with a braking system specified for the user weight. A harness subjected to a free fall must be removed from service immediately, and prolonged suspension can result in death, so rescue immediately. An improperly adjusted harness can result in falling out of the harness in a free fall.
Compliance Standards
ANSI Z359.11-2021
Certified per the Intertek lab report 11-2024 as a full body harness for fall arrest, with a 130 to 310 lb capacity including tools.
OSHA 1926.502
Meets OSHA fall protection criteria with a 90 to 420 lb person capacity range.
CSA Z259.10
A CSA Z259.10 compliance report is available on request, with a 130 to 352 lb capacity range.
PID and Inspection Labels
English and Spanish PID labels, a serialized inspection label, and visual indicator labels document the harness through its service life.
Typical Applications
Donning and Adjustment Overview
Donning and adjustment figures are in the 2025 Fall Arrester 3 D-Ring Harness manual linked below. The basics:
- Don the harness and position the dorsal D-ring 6 to 12 inches below the shoulders by moving the back strap webbing through the D-pad slots, with the help of another person.
- Connect the chest strap buckle and adjust the width so the straps are aligned, about 8 to 12 inches below the shoulders.
- Connect and adjust the tongue buckle leg straps for a snug fit.
- Perform the buckle locking test: lock the chest buckle and pull on each side of the strap; it must remain locked.
- Connect fall arrest PPE only to the dorsal D-ring with ANSI or CSA certified 3,600 lb gate strength connectors.
- Include the 14 inch maximum harness stretch when calculating the length of fall for the system.
Inspection and Retirement
Inspect before each use, with documented competent person inspections per the service schedule. Remove the harness from service when any of the following apply:
- The harness was subjected to a free fall or a visual indicator label shows its warning.
- Webbing is cut, abraded, or damaged by heat or chemicals, or stitching is cut or loose.
- A D-ring is deformed, cut, or shows pitting or extreme rusting.
- The quick connect buckle fails the lock test, or tongue buckle grommets are missing or damaged.
- The D-pad is cut or torn, or its webbing slots are broken.
- PID labels are missing or not legible, or the annual competent person inspection is overdue.
Dispose of harnesses removed from service in a way that prevents further use.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Super Anchor TB3-6070-H Submittals and Documentation
Fall Arrester 3 D-Ring Harness Manual 2025 (PDF)Material specifications, donning and adjustment, rigging, compliance, and inspection points for TB3 series harnesses. TB3-6070 Harness Sizing Chart (PDF)Weight and height ranges for all 5 sizes, Small through 2X-Large, in English and French. Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty terms and compliance statement for Super Anchor Safety products.Compatible and Related Products
- SideWinder-LE Leading Edge Cable SRL. This harness bundled with the SideWinder-LE SRL, anchor, and cargo bag.
- Super Anchor SideWinder-LE Leading Edge SRL. The Class 2 SRL that connects to this dorsal D-ring.
- Super Anchor 6101GH Deluxe Harness. The deluxe harness line in 4 colors and 5 sizes.

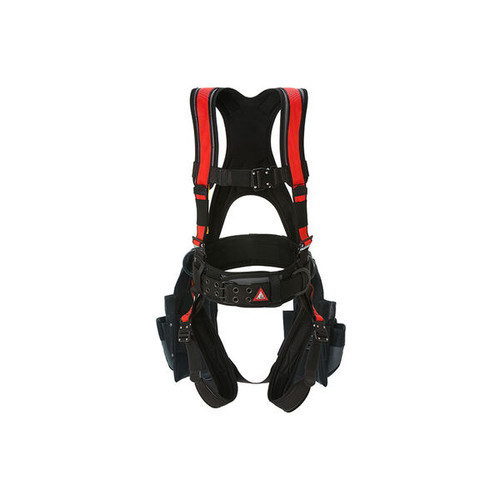

- Super Anchor 6151 Deluxe Tool Bag Harness. Deluxe harness with integrated tool bags for production crews.
