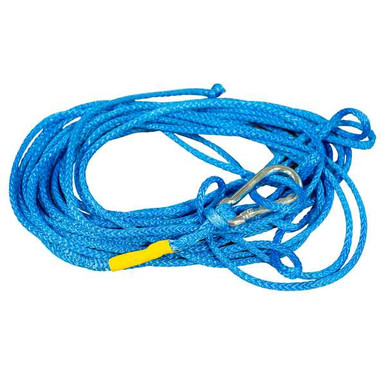

Tie Down 40666 TranzVolt G2 48 ft synthetic cable assembly
Tie Down Engineering

Tie Down TranzVolt G2 Synthetic Cable Assembly, 48 ft

(No reviews yet) Write a Review
$102.99
Brand:
Tie Down Engineering
SKU:
40666
Availability:
Usually ships in 1 to 2 weeks
Shipping:
Calculated at Checkout
schema-description:
Tie Down 40666 replacement 48 ft synthetic cable assembly for the TranzVolt G2 laddervator: high performance low stretch cable with terminations, for track runs to 36 ft. Keep a spare on the truck. Made in the USA.
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
Tie Down Hoist Accessories

Tie Down TranzVolt G2 48 ft Synthetic Cable Assembly

The 40666 is the standard synthetic cable assembly for the TranzVolt G2: a high performance, low stretch cable with the terminations ready to route through the top cap and power box. It serves track runs up to 36 ft; runs to 44 ft use the extended 40674 cable.

Cable is the wear item on any hoist. Inspect it before each shift and keep a spare so a cut or glazed cable does not stop the job.

Tie Down 40666 TranzVolt G2 48 ft synthetic cable assembly
48 ftCable Length
SyntheticLow Stretch
36 ftMax Track Run
TerminatedReady to Install
TranzVolt G2Fit
SpareKeep on the Truck
BlueColor
USAMade in Georgia
BuyRetail price shown aboveOrder online at the retail price shown above. Usually ships in 1 to 2 weeks. UPS Ground shipping is calculated at checkout. Pay by card, PayPal, ACH or purchase order for approved accounts.Add to Cart Above
Pay Over TimePayPal Pay Later at checkoutAdd it to your cart, choose PayPal at checkout and split the purchase into payments with Pay Later, subject to PayPal approval. No application before you order; the offer appears when you pay.Add to Cart and Pay Later

PayPal Pay Later availability and terms are set by PayPal at checkout. Ordering this with a machine or hoist kit? APPROVE business financing can cover the whole order; the sample payment is shown on that product page.

Who Needs This Product

Every TranzVolt G2 owner. The cable is the consumable; a spare on the truck keeps the hoist working when a cable is cut or worn.

Features

OEM synthetic cable

The same low stretch cable the kit ships with.

Terminated ends

Ready to route through the top cap and connect at the power box.

Runs to 36 ft

Standard length for the kit track plus one section; 44 ft runs use the 40674.

Inspect and replace

Replace at the first cut, glazing or worn termination.

Light

Under a pound.

Made in the USA

Built by Tie Down in Georgia.

⚠

Replace, do not repair. Never knot or splice a hoist cable. Replace it at the first sign of cuts, fraying, glazing or a damaged termination, and run the homing process after installing a new cable.

Compliance Standards

OSHA 29 CFR 1926.552

Material hoists; use only manufacturer parts and follow the Tie Down manual.

OSHA 29 CFR 1926.416

Keep hoist track 10 ft from overhead power lines.

Tie Down OEM part

Genuine Tie Down Engineering component for the TranzPorter and TranzVolt hoist lines.

Made in the USA

Built by Tie Down in Georgia; 90 day limited warranty (6 months on TranzVolt G2 equipment).

Typical Applications

ReplacementWorn or cut cable.
SpareRental fleets and crews.
PreventiveChange on schedule.
SolarTranzVolt on arrays.
RoofingTranzVolt on residential.
Supply yardsDelivery hoist.

How to Use

Follow the Tie Down instruction manual. The sequence below is an overview only.

  1. Lower the carriage and remove the batteries.
  2. Remove the old cable per the manual.
  3. Route the new cable through the top cap and down to the power box.
  4. Connect the terminations and check routing.
  5. Home the power box and test run empty.

Inspection and Retirement

Inspect before each use, with a documented competent person inspection at least annually. Remove the system from service for any of the conditions below.

  • Cable: cuts, fraying, glazing, flat spots.
  • Terminations: cracks, wear, loose fittings.
  • Routing: rubbing on anything but the rollers.
  • Length: confirm the right cable for the track height.
  • Storage: keep dry and out of the sun.

Remove the system from service immediately after any fall arrest event and have it inspected by a competent person before it returns to use.

Product Videos

TranzVolt rope installation demonstration video previewWatch: TranzVolt rope installation demonstration

Proper cable installation technique.

How to install your TranzVolt, part 4: troubleshooting video previewWatch: How to install your TranzVolt, part 4: troubleshooting

Cable and power box troubleshooting.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Part number40666 (Tie Down Engineering, USA)
TypeTranzVolt G2 synthetic cable assembly
Length48 ft
Maximum track36 ft (use 40674 for 44 ft)
Weight0.29 lb
ColorBlue
FitsTranzVolt G2
Warranty6 months, TranzVolt G2 equipment

Frequently Asked Questions

Which cable do I need for 44 ft?
The extended 40674 cable. The 40666 serves runs up to 36 ft.
Is it the same cable the kit ships with?
Yes.
How often should I replace it?
Inspect before each shift; replace at the first cut, glazing or termination damage.
Can I splice a damaged cable?
No. Never knot or splice a hoist cable.
Do I need tools?
No; follow the manual routing and reconnect the terminations.
Do I re-home after replacing?
Yes, run the homing process.
How does it ship?
Parcel.

Tie Down 40666 Submittals and Documentation

TranzVolt G2 Instruction Manual (PDF)Cable installation and homing.

Compare the Tie Down Ladder Hoist Line

Every Tie Down hoist kit ships with the 4 ft base track and three 8 ft track sections for a 28 ft reach, and extends to 44 ft with extra track. Pick by capacity, power source and platform.

TranzVolt G2 DeWalt, RoofingBattery, roofing platformTranzVolt G2 DeWalt, SolarBattery, tilt platformTranzVolt G2 Milwaukee, SolarBattery, tilt platformTranzVolt 4 ft Base 40659Base track section8 ft Track Section 10091Extend to 44 ftRoofing Platform Kit 40675TranzVolt G2

Keep a Spare Cable on the Truck

Order with any TranzVolt kit and it ships in the same box.

Call 863-703-4522 to talk to a fall protection specialist.

Tie Down Engineering warrants the TranzVolt G2 electrical power box for two years and all other TranzVolt G2 equipment for six months from the date of purchase against defects in material and workmanship. Return the defective component to the dealer or contact Tie Down for repair or replacement at Tie Down's discretion. The warranty does not cover damage from misuse, overloading, alteration, or failure to follow the instruction manual.
