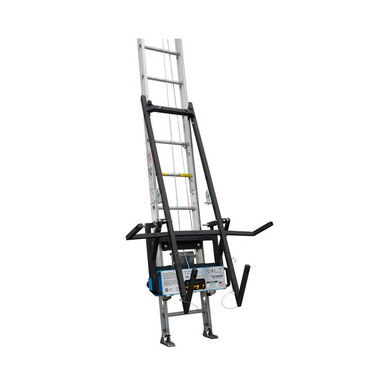

Tie Down TranzVolt G2 Laddervator Pro Kit with DeWalt Batteries and Solar Tilt Platform
The TranzVolt G2 is Tie Down's cordless ladder hoist: a 33 lb power box that climbs the track on a synthetic cable, lifting 250 lb at 2 ft per second to 44 ft, with no gas, no oil and no cord. Two standard DeWalt 20V tool batteries (not included) run it for a full eight hour shift, and the wireless remote lets the ground worker stand clear while the load rides up.
The Solar Tilt Back Platform pivots at the top of the track so panels, plywood, windows and sheet goods tilt onto the roof and the roof worker never reaches over the edge. The Pro Kit is the complete 28 ft setup: power box with two remotes, 4 ft base track, three 8 ft track sections, top cap with tilt rollers, bottom stop brackets, cam buckle straps, rope, platform frame and carrying bag. Extend to 44 ft with extra track and the 44 ft cable.
The finance payment shown is a sample, not an offer. Financing is provided through APPROVE and its lender network, subject to credit approval, at a 60 month term; your offered rate and term may differ. Financing is available on single items priced at 1,500 dollars and up, including smaller items bundled with the unit.
Who Needs This Product
Solar installers who need panels on the roof without a crane, and anyone lifting sheet goods, windows or plywood where the tilt platform keeps the receiving worker off the edge. The TranzVolt G2 is for crews in noise sensitive neighborhoods, on sites without power, and for anyone already running DeWalt 20V tools who wants to share batteries. One worker on the ground with the remote, one on the roof receiving, and the roof worker tied off.
Features
Battery powered, no fuel or oil
Two DeWalt 20V batteries drive the power box for about eight hours of lifting. Swap packs with the rest of your tool fleet and skip the fuel can, the oil changes and the exhaust.
250 lb at 2 ft per second
Rated for 250 lb per trip and climbs the track at 2 ft per second, so a 28 ft lift takes about 15 seconds.
33 lb power box
Small enough for one person to carry and hang on the track; it travels in the included bag and assembles in minutes with no special tools.
Wireless remote with two remotes included
The ground worker runs the lift from 6 to 7 ft away with the remote. A safety stop and homing process set the travel limits.
Tilt platform at the top
The Solar Tilt Back Platform pivots so panels and sheet goods lay over onto the roof; the receiving worker takes the load without leaning out.
28 ft kit, 44 ft maximum
4 ft base plus three 8 ft sections reach 28 ft. Add track sections and the 44 ft synthetic cable (40674) for the 44 ft maximum.
Stay 10 ft from power lines and never climb the track. Keep the track at least 10 ft clear of overhead wires, set the base at the chart distance for the roof height, tie the top bracket to the roof, and stand back 6 to 7 ft while the carriage runs. Do not operate above 36 ft without the extension kit and 44 ft cable (40674); 44 ft is the absolute maximum. Batteries are not included.
Compliance Standards
OSHA 29 CFR 1926.552
Material hoists; the Tie Down manual is the operating instruction required on site.
OSHA 29 CFR 1926.416 and 1926.1408
Electrical safety and power line clearance: 10 ft minimum from overhead lines.
OSHA 29 CFR 1926.501
The worker receiving materials at the roof edge still needs fall protection; the tilt platform keeps them from reaching over the edge.
Two year power box warranty
Tie Down warrants the TranzVolt G2 electrical power box for two years and all other TranzVolt G2 equipment for six months.
Typical Applications
How to Use
Follow the Tie Down instruction manual. The sequence below is an overview only.
- Set the track. Pin the 4 ft base to the 8 ft sections on the ground, raise with two people, set the bottom shoes the chart distance from the wall and tie the top bracket to the roof.
- Hang the power box. Lift the 33 lb power box onto the track, seat it on the rails and route the synthetic cable through the top cap per the manual.
- Insert batteries and home. Install two charged batteries, press Start and run the homing process so the box learns the track length and the bottom stop.
- Load and lift. Place materials on the platform, stand back 6 to 7 ft and run the carriage with the wireless remote; the platform tilts at the top so the roof worker never reaches over the edge.
- Take down. Lower the carriage to the bottom stop, remove the batteries, collapse the platform and bag the power box.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually. Remove the system from service for any of the conditions below.
- Synthetic cable: cuts, fraying, glazing or a worn termination; replace with the 40666 cable assembly.
- Power box: cracked housing, damaged battery terminals, a remote that will not pair, a safety stop that will not trigger.
- Track sections and splice plates: bent rails, cracked welds, missing pins.
- Platform and tilt mechanism: bent frame, pivot that binds, missing hardware.
- Bottom stop brackets and top cap rollers: loose or damaged.
Remove the system from service immediately after any fall arrest event and have it inspected by a competent person before it returns to use.
Product Videos
The TranzVolt G2 power box, remote and platform in action.
Step by step track, power box and platform assembly.
How the tilt platform delivers materials onto the roof.
Pairing and operating the remote and safety stop.
Solar Tilt Back Platform carrying panels to the roof.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Part number | 40683 (Tie Down Engineering, USA) |
|---|---|
| Model | TranzVolt G2 Laddervator Pro Kit |
| Lifting capacity | 250 lb per trip |
| Lift speed | 2 ft per second |
| Reach | 28 ft with kit track; 44 ft maximum with extra track and the 44 ft cable (40674) |
| Power | Two DeWalt 20V rechargeable batteries (not included), about 8 hours per charge |
| Power box | 33 lb, two wireless remotes, safety stop, carrying bag |
| Platform | Solar Tilt Back Platform (pivot and tilt for panels and sheet goods) |
| Kit contents | Power box, two remotes, 4 ft base track, three 8 ft track sections, top cap with tilt rollers, two bottom stop brackets, cam buckle straps, rope, platform frame, platform, bag |
| Cable | Synthetic high performance cable, minimal stretch (replacement 40666) |
| Kit weight | About 200 lb |
| Shipping | LTL freight on a pallet |
| Warranty | 2 years on the TranzVolt G2 electrical power box, 6 months on all other TranzVolt G2 equipment |
Frequently Asked Questions
Tie Down 40683 Submittals and Documentation
TranzVolt G2 Pro Kit 40683 Sell Sheet (PDF)Kit contents, capacity, speed, battery and warranty summary. TranzVolt G2 40683 Instruction Manual (PDF)Track assembly, power box installation, homing process, remote operation, platform installation and warranty. Tie Down Safety Catalog, Part 2 (PDF)Guardrail, warning line and roofing equipment pages of the Tie Down catalog.Compare the Tie Down Ladder Hoist Line
Every Tie Down hoist kit ships with the 4 ft base track and three 8 ft track sections for a 28 ft reach, and extends to 44 ft with extra track. Pick by capacity, power source and platform.
