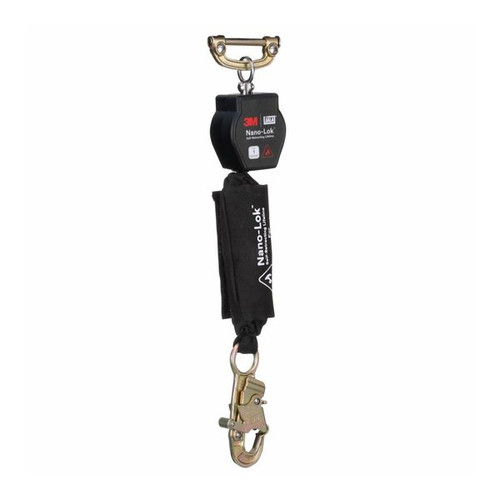

Nano-Lok Hot Work Personal Self-Retracting Lifeline Kevlar Fiber Web, 6 ft
Nano Lok is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker's way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are dozens of models to choose from to suit almost any application. Nano Lok locks quickly-stopping a fall within inches-providing more protection at low heights.
ANSI Class Level 1; ANSI/ASSP Z359.14-2021; 29 CFR OSHA 1910.140; 29 CFR OSHA 1926.502 Twin legs deliver 100 percent tie-off: one leg stays anchored while the other moves, so the worker is never unprotected during transitions.
Who Needs This Product
Built for crews that move: steel erection, rebar, scaffolding, and any work where the next anchor point is always a step away. One leg stays tied off while the other transitions.
Features
Constructed with Kevlar fiber webbing
Constructed with Kevlar fiber webbing, engineered into this DBI-SALA configuration as standard.
Kevlar protected energy absorber
Kevlar protected energy absorber, engineered into this DBI-SALA configuration as standard.
Quick activating speed sensing brake
Quick activating speed sensing brake system, engineered into this DBI-SALA configuration as standard.
Self-locking snap hook on the
Self-locking snap hook on the lifeline, engineered into this DBI-SALA configuration as standard.
420 lbs. (190 kg) weight
420 lbs. (190 kg) weight capacity, engineered into this DBI-SALA configuration as standard.
Technical Specifications
| SKU | 3100561 |
|---|---|
| Average Arrest Force | 1125 lbf (ANSI); 1125 lbf (OSHA up to 420 lb); 1125 lbf (OSHA 130 lb - 310 lb) |
| Connected Safety ID Equipped | Yes |
| Harness Connection Hook Material | Zinc Plated Steel |
| Harness Connection Type | Single Pin Connector |
| Housing Material | Nylon Thermoplastic |
| Install Type | Portable & Removable |
| Leg Count | Twin-Leg |
| Lifeline Connection Type | Rebar Snap Hook |
| Lifeline Hook Material | Zinc Plated Steel |
| Lifeline Length | 6 ft |
| Lifeline Material | Fire Resistant Web |
| Maximum Arrest Force | 1800 lbf (ANSI); 1800 lbf (OSHA up to 420 lb); 1800 lbf (OSHA 130 lb - 310 lb) |
| Maximum Number of Users | One |
| Mounting Type | Direct to Harness Back |
| Net Weight | 3.7 lb |
| Overall Length | 6 ft |
| Product Series | Nano-Lok |
| Product Type | Self Retracting Lifeline |
| Specifications Met | ANSI Class Level 1; ANSI/ASSP Z359.14-2021; 29 CFR OSHA 1910.140; 29 CFR OSHA 1926.502 |
Anchor at or above the D-ring. This is a Class 1 device: free fall is limited to 2 ft, and it is not rated for foot-level tie-off or leading edge exposure. Remove the unit from service immediately after any fall arrest.
Compliance Standards
ANSI/ASSP Z359.14-2021 Class 1
Certified as a Class 1 self-retracting device under the 2021 standard that replaced the legacy Class A and B designations.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Inspect the housing, both lifelines, energy absorbers, impact indicators, and all connectors before use.
- Mount the twin unit to the harness interface per the manual.
- Connect the first leg to the anchorage and verify the gate locks before moving.
- Alternate legs anchor-to-anchor so one leg is always connected.
- Verify anchor positions and fall clearance per the manual before working.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Retraction and brake: smooth payout, positive lock on a sharp pull, and an undeployed impact indicator.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
